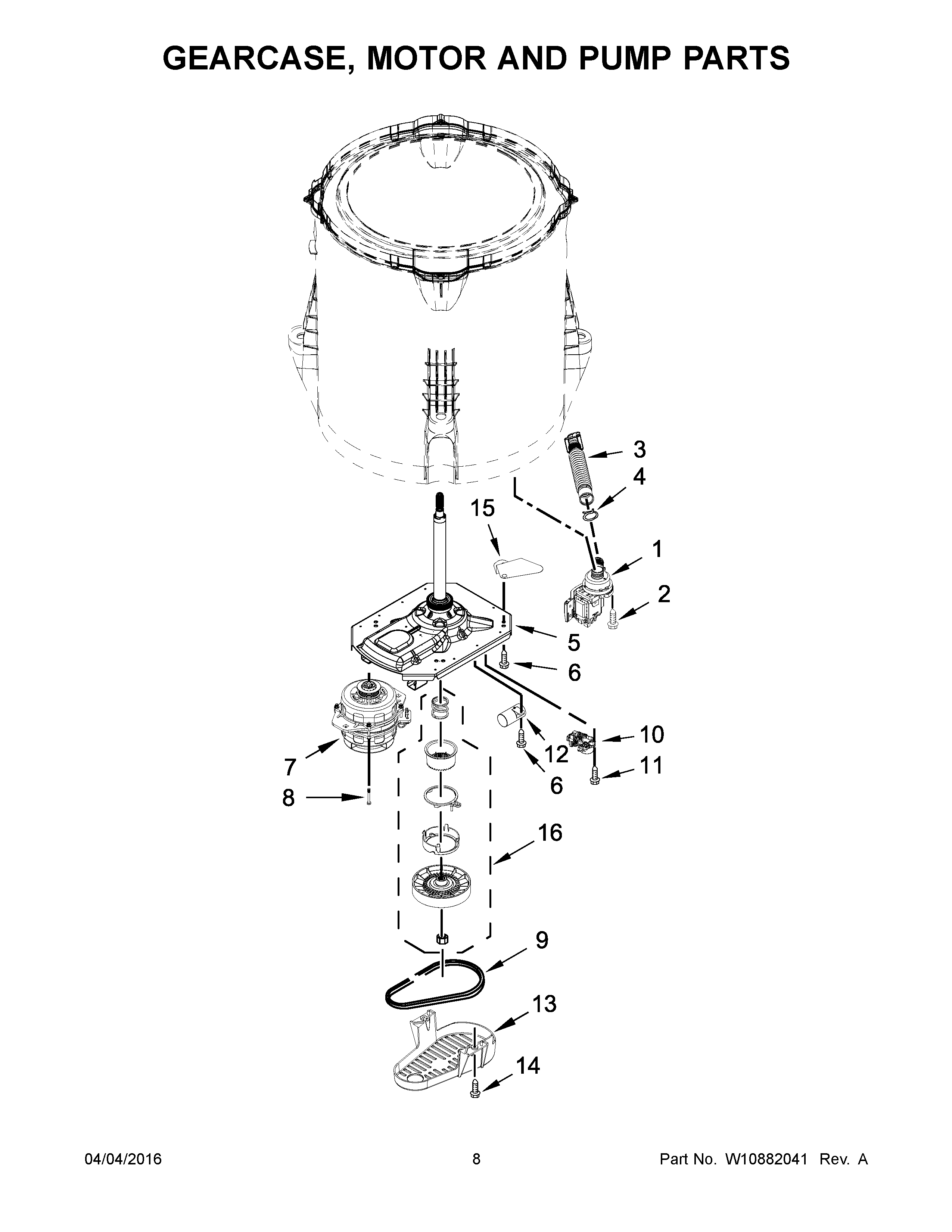

MVWC565FW0 05 – GEARCASE, MOTOR AND PUMP PARTS

MVWC565FW0 05 – GEARCASE, MOTOR AND PUMP PARTS

Written by

in

MVWC565FW0 05 – GEARCASE, MOTOR AND PUMP PARTS

Products

Position	Product
1	PUMP ASSEMBLY, DRAIN
2	SCREW
3	HOSE, TUB TO PUMP
4	MAY 8317496
5	MAY W10006481
6	SCREW
7	MOTOR, DRIVE
8	BOLT, COUNTERWEIGHT
9	MAY W10006384
10	MAY W10597177
11	SCREW
12	MAY W10625046
13	MAY W10427633
14	SCREW
15	MAY W10637932
16	MAY W10721967
