MVWC565FW3 02 – TOP AND CABINET PARTS
Written by
in

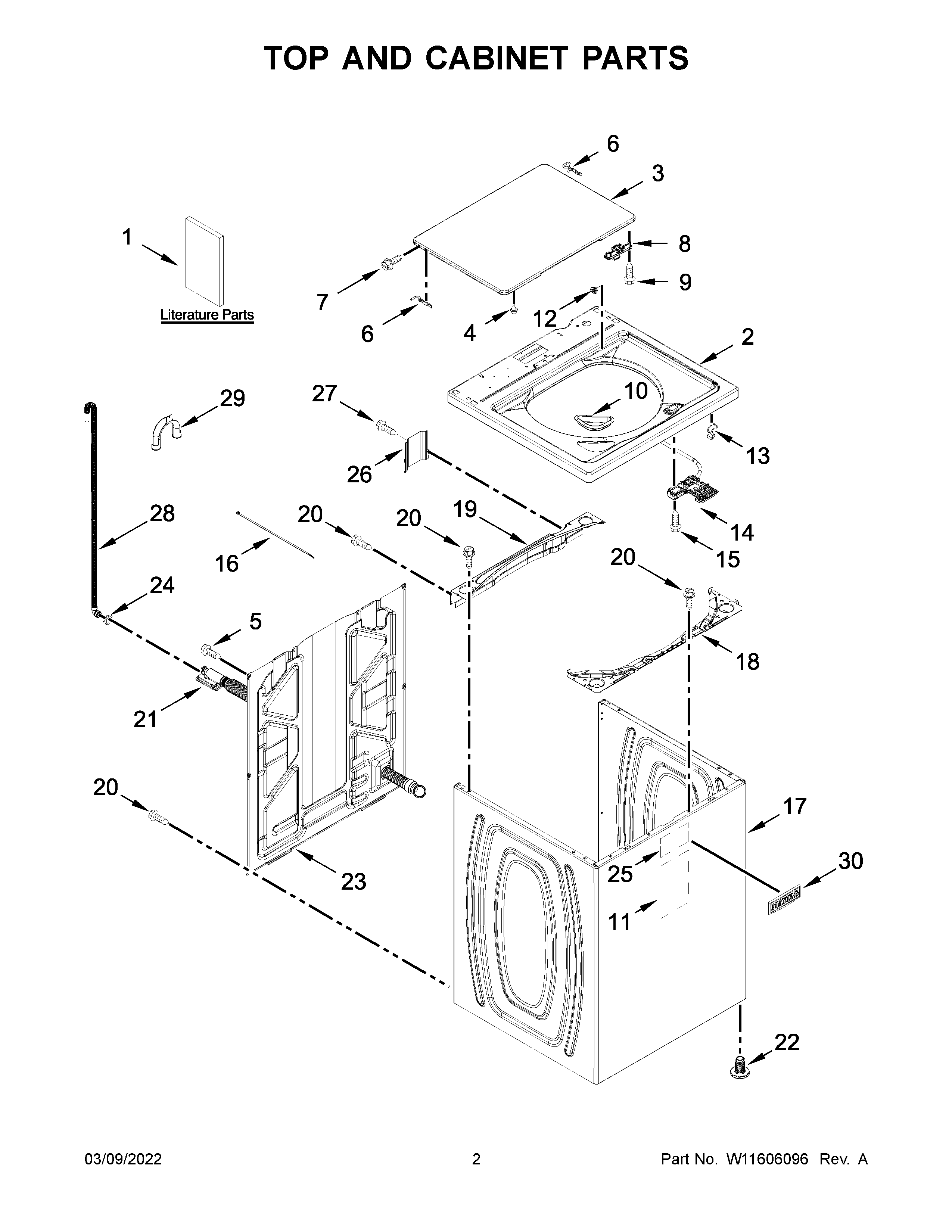

MVWC565FW3 02 – TOP AND CABINET PARTS
Products
Position
Product
1B
TECH SHEET
1
OWNERS MANUAL
1C
ENERGY GUIDE
1A
QUICK START GUIDE
2
W11211509 Whirlpool Top Assembly
3
W10860912 Whirlpool Lid
4
WP9724509 Whirlpool Bumper
5
WP9740848 Whirlpool Dishwasher Screw
6A
WP54583 Whirlpool Hinge
6
WP91770 Whirlpool Hinge
7
SCREW
8
W10837741 Whirlpool Washer Lid Strike
9
WPW10273971 Whirlpool Screw
10
WPW10192089 Whirlpool Washer Bleach Dispenser
11
W11611669 Whirlpool Absorber
12
WP21258 Whirlpool Washer Lid Hinge Bearing
13
WP90016 Whirlpool Clip
14
LATCH-WASHER LID
15
WPW10213953 Whirlpool Screw
16
WPW10339879 Whirlpool Wire Tie
17
W10676680 Whirlpool Cabinet
18
W11695476 Whirlpool Brace Support
19
W11712680 Whirlpool Commercial Part Brace
20
W11685943 Whirlpool Screw
21
W10899966 Whirlpool Hose Assembly
22
WPW10687506 Whirlpool Washer Leveling Leg
23
W11486091 Whirlpool Rear Panel
24
WP356138 Whirlpool Hose Clamp
25
WP8564458 Whirlpool Absorber
26
W10648853 Whirlpool Cover Assembly
27
W10846509 Whirlpool Screw
28
W11244231 Whirlpool Hose
29
WPW10280024 Whirlpool Retainer
30
WPW10612925 Whirlpool Microwave Nameplate
←
