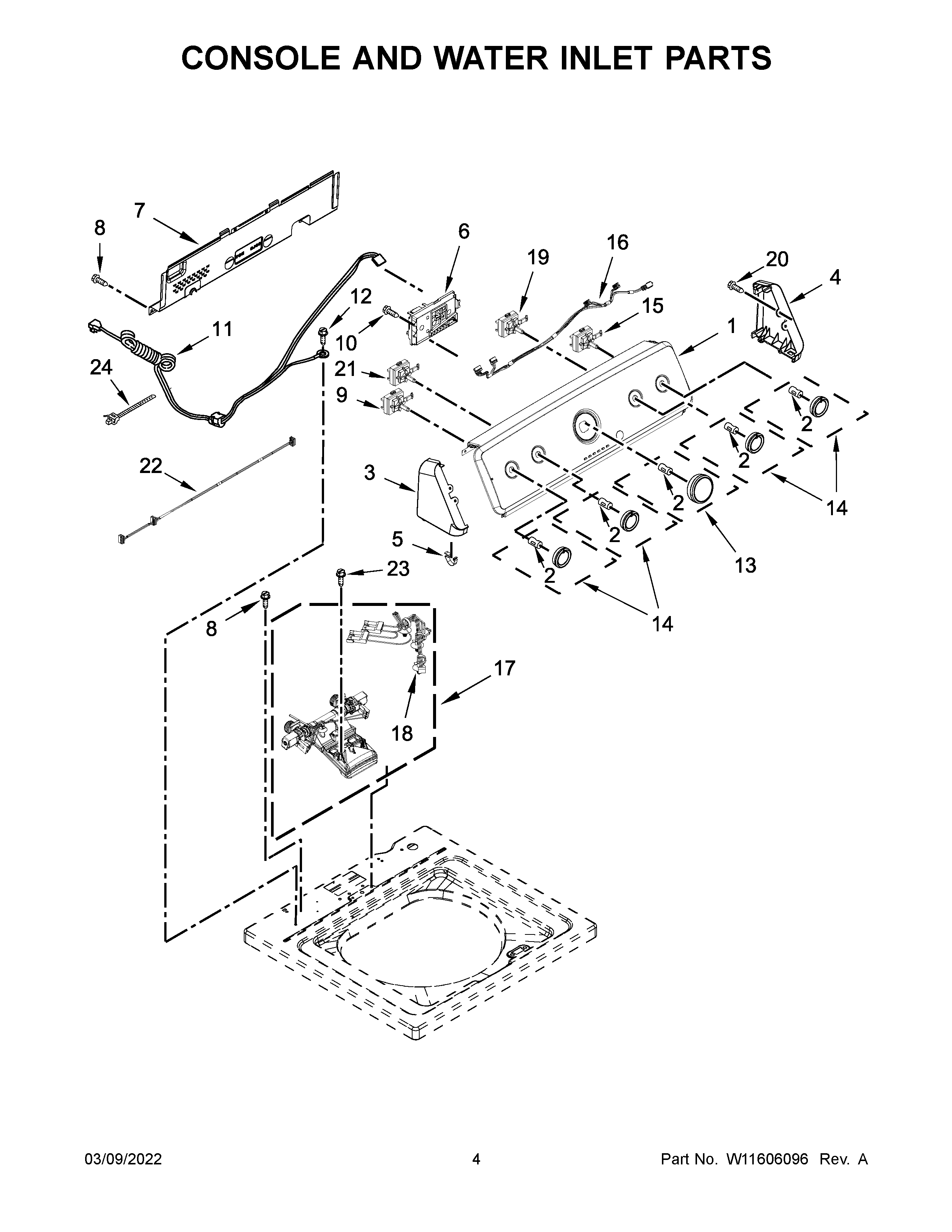

MVWC565FW3 03 – CONSOLE AND WATER INLET PARTS

MVWC565FW3 03 – CONSOLE AND WATER INLET PARTS

Written by

in

MVWC565FW3 03 – CONSOLE AND WATER INLET PARTS

Products

PositionProduct
1W10909736 Whirlpool Control Panel
2WP688805 Whirlpool Spring Clip
3WPW10193824 Whirlpool Endcap
4WPW10193821 Whirlpool Endcap
5WP8312709 Whirlpool Endcap Clip
6W11611306-includeCORE Whirlpool W11611306 Electronic Control Board
7W10641362 Whirlpool Rear Panel
8W11685943 Whirlpool Screw
9WPW10285517 Whirlpool Cycle Switch
10WP90767 Whirlpool Screw
11W10877409 Whirlpool Power Cord
12W10846509 Whirlpool Screw
13WPW10558463 Whirlpool Knob Assembly
14WPW10562155 Whirlpool Knob
15WPW10285511 Whirlpool Cycle Switch
16W10694685 Whirlpool Wire Harness
17VALVE-WATER INLET WASHER
18W10868094 Whirlpool Wire Harness
19WPW10285512 Whirlpool Cycle Switch
20W11693756 Whirlpool Screw Assembly
21WPW10285518 Whirlpool Cycle Switch
22W10291177 Whirlpool Wire Harness
23WPW10213953 Whirlpool Screw
24W10339680 Whirlpool Wire Tie
