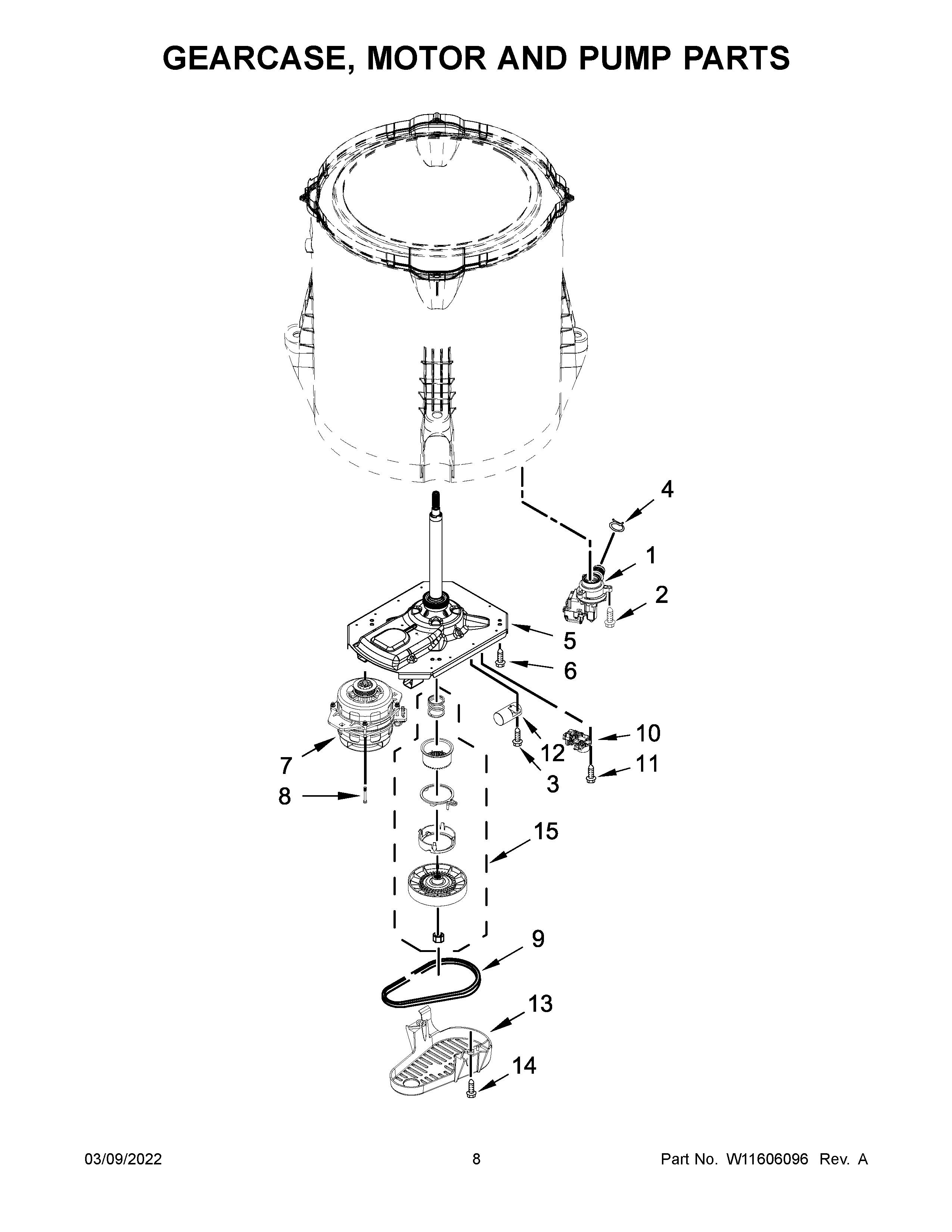

MVWC565FW3 05 – GEARCASE, MOTOR AND PUMP PARTS

MVWC565FW3 05 – GEARCASE, MOTOR AND PUMP PARTS

Written by

in

MVWC565FW3 05 – GEARCASE, MOTOR AND PUMP PARTS

Products

PositionProduct
1PUMP-WATER
2WPW10004910 Whirlpool Screw
3WP489128 Whirlpool Refrigerator Screw
4WP285655 Whirlpool Hose Clamp
5GEARCASE DW1
6WPW10249633 Whirlpool Screw
7W11686050 Whirlpool Drive Motor
8W11685857 Whirlpool Screw Assembly
9W11611297 Whirlpool Belt
10ACTUATOR
11W11596033 Whirlpool Microwave Screw
12CAPACITOR-SCREW
13WPW10427633 Whirlpool Belt Shield
14W11573574 Whirlpool Screw
15W10721967 Whirlpool Washer Cam Kit
