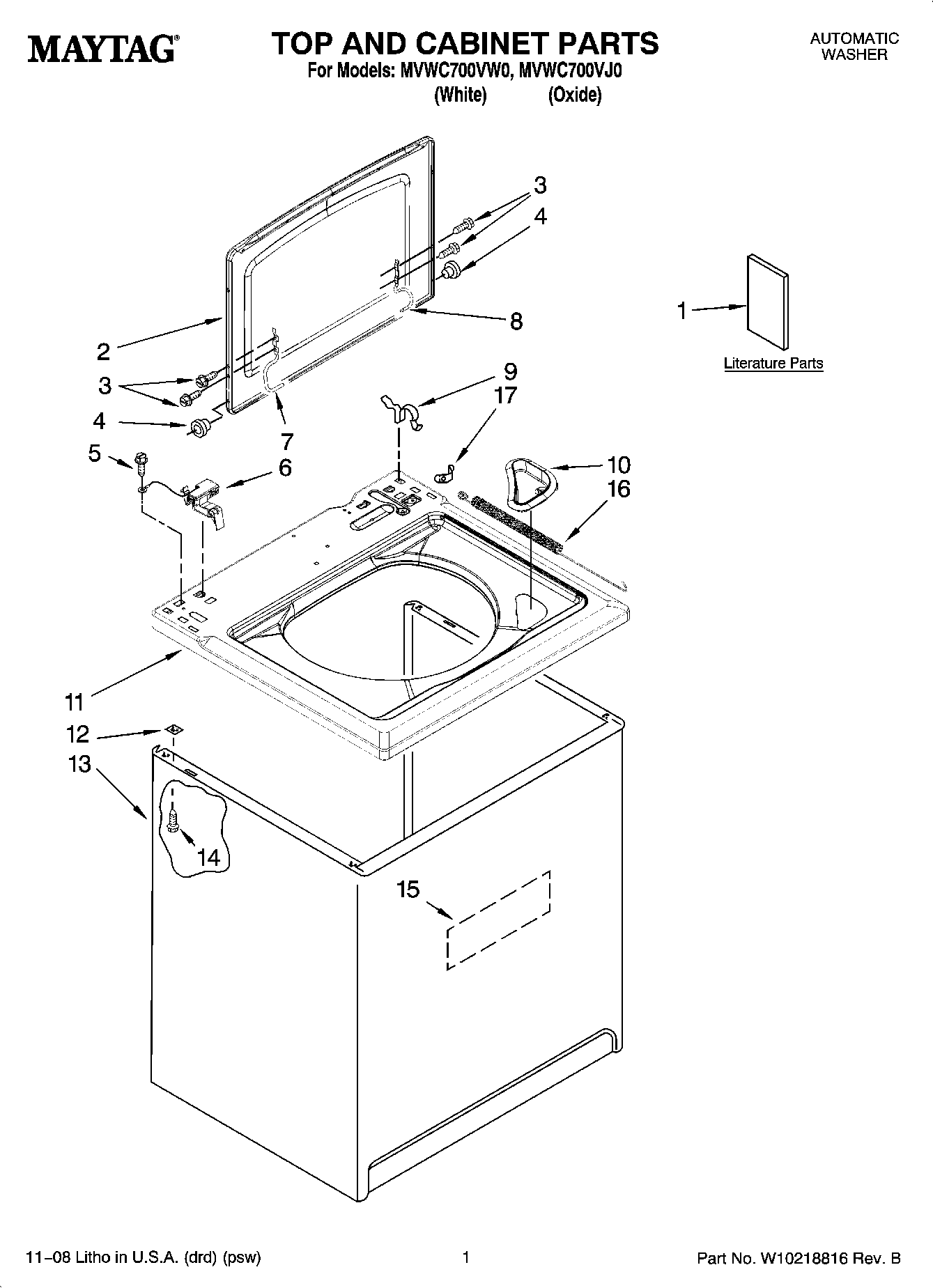

MVWC700VJ0 01 – TOP AND CABINET PARTS

Products

Position	Product
1	MAY W10092805
1	MAY W10111392
1	MAY W10200662
1	Installation Instructions (English)
1	MAY W10092797
1	MAY W10092800
1	MAY W10092801
1	MAY W10092796
2	Lid Assembly (White)
2	MAY W10196543
3	SCREW, LID HINGE
4	MAY 8319539
5	SCREW, GEARCASE COVER, MOUNTING (8) (10-24 X 3/8)
6	MAY 8318084
7	MAY 8559336
8	HINGE, LID (RIGHT)
9	MAY 62780
10	MAY W10192089
10	MAY W10196539
11	MAY W10212421
11	Top (White)
12	MAY 62750
13	MAY W10207741
13	Cabinet
14	SCREW
15	Cabinet-Damper, Sound (3)
16	MAY W10208782
17	Clip
