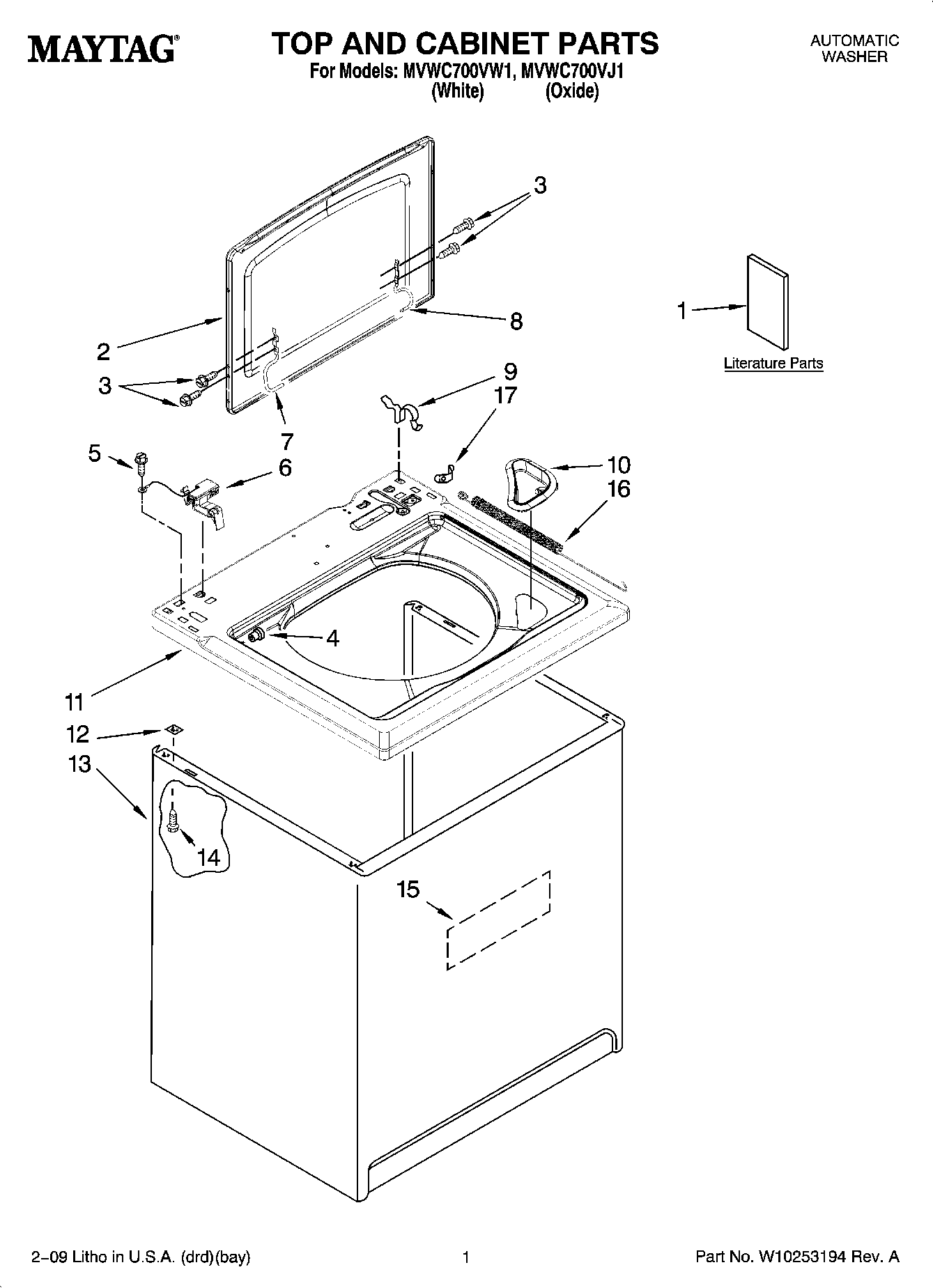

MVWC700VJ1 01 – TOP AND CABINET PARTS

MVWC700VJ1 01 – TOP AND CABINET PARTS

Written by

in

MVWC700VJ1 01 – TOP AND CABINET PARTS

Products

PositionProduct
1MAY W10200662
1MAY W10111392
1MAY W10092797
1Installation Instructions (English)
1MAY W10092800
1MAY W10092801
1MAY W10092809
1MAY W10092796
2Lid Assembly (White)
2MAY W10196543
3SCREW, LID HINGE
4MAY 8319539
5SCREW, GEARCASE COVER, MOUNTING (8) (10-24 X 3/8)
6MAY 8318084
7MAY 8559336
8HINGE, LID (RIGHT)
9MAY 62780
10MAY W10192089
10MAY W10196539
11Top (White)
11MAY W10212421
12MAY 62750
13Cabinet
13MAY W10207741
14SCREW
15Cabinet-Damper, Sound (3)
16MAY W10208782
17Clip
