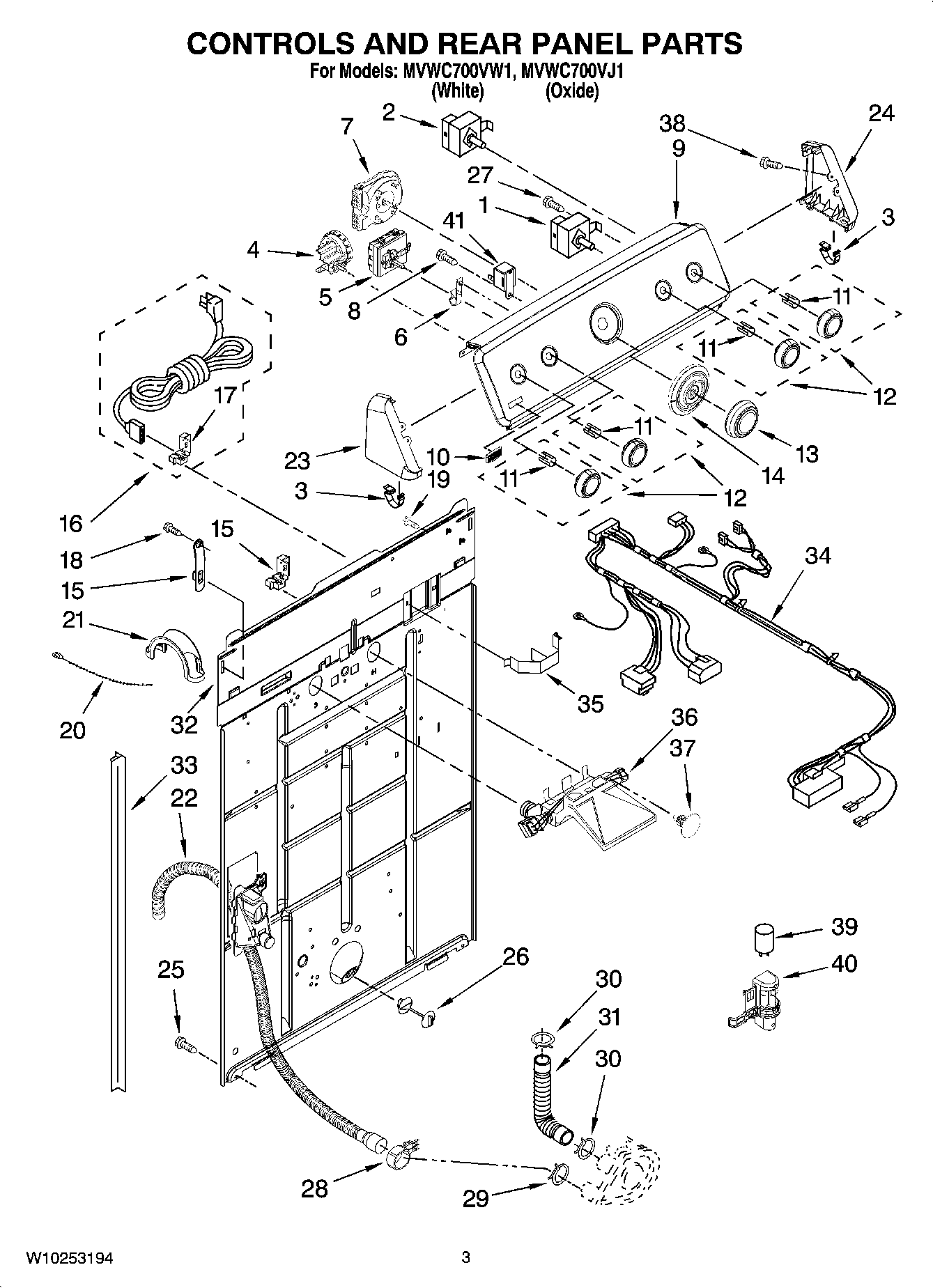

MVWC700VJ1 02 – CONTROLS AND REAR PANEL PARTS

Products

Position	Product
1	MAY 3949187
2	Switch, Rotary
3	MAY 8312709
4	MAY 8577843
5	MAY W10202616
6	MAY 8317975
7	MAY W10111389
8	SCREW,8-18 X 3/8
9	MAY W10089727
9	MAY W10089725
10	MAY W10101390
10	MAY W10103431
11	CLIP, SPRING
12	Knob, Control (3)
12	MAY W10180218
13	Knob, Timer (Gold)
13	Knob, Timer (Grey/Chrome)
14	Dial, Timer (Gold)
14	Dial, Timer (Circular Brush)
15	Strap, Console
16	Cord, Power
17	MAY 3952821
18	SCREW
19	SCREW, GEARCASE COVER, MOUNTING (8) (10-24 X 3/8)
20	MAY 3347868
21	U-Bend
22	MAY W10189267
23	Endcap (L.H.)
23	MAY W10101398
24	MAY W10101397
24	Endcap (R.H.)
25	Screw, Mixing Valve Mounting
26	MAY 8519200
27	SCREW
28	MAY 8541668
29	MAY 8317496
30	Clamp, Hose (2)
31	Hose & Clamp Assembly
32	MAY W10194450
33	MAY 62747
34	MAY W10214217
35	Clip, Harness & Pressure Switch
36	MAY W10144820
37	RETAINER, PUSH-IN
38	MAY 359625
39	MAY 8572717
40	MAY 8318046
41	MAY 694419
