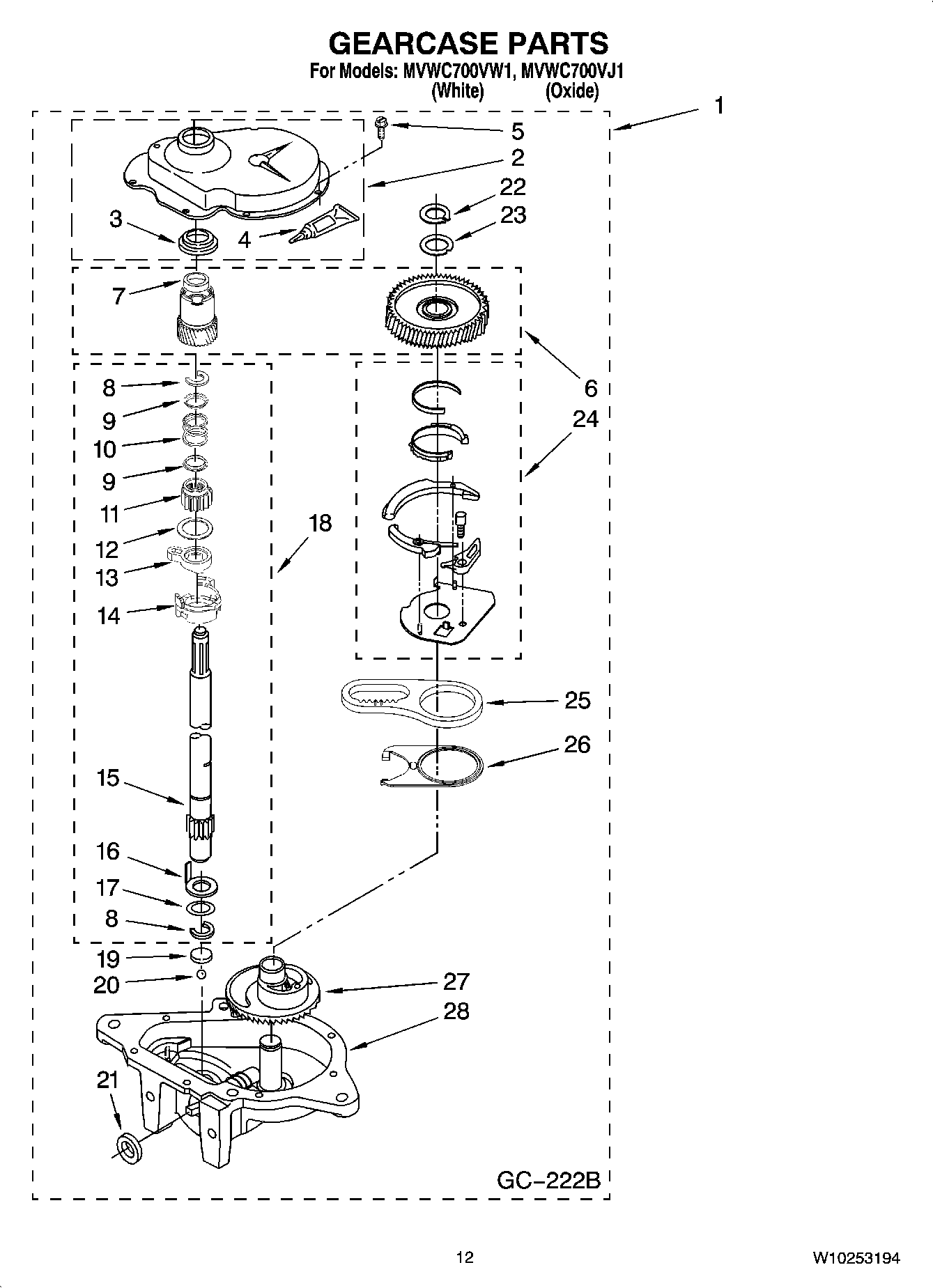

MVWC700VJ1 08 – GEARCASE PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
NI	PAINT, PRESSURIZED SPRAY (12OZ. WHITE)
NI	INLET HOSES, 10 FT (TWO BLACK HOSES W/ STRAIGHT ENDS & 4 RUBBER WASHERS)
NI	MAY W10202939
NI	MAY 350572
NI	SEALER, GASKET (.20 FL. OZ.) (6ML)
NI	MAY 280131
NI	MAY 280130
NI	MAY 280129
NI	WATER SYSTEM PARTS, DRAIN PROTECTOR
NI	Inlet Hoses, 5 Ft. (Two Black Hoses W/Straight Ends & 4 Rubber Washers)
NI	INLET HOSES, 6 FT. (TWO BRAIDED HOSES W/ ONE STRAIGHT END & ONE 90 DEGREE END & 4 RUBBER WASHERS)
NI	INLET HOSES, 6 FT. (TWO BLACK HOSES W/ ONE STRAIGHT END & ONE 90 DEGREE END & 4 RUBBER WASHERS)
NI	PAINT, TOUCH-UP (1/2OZ. WHITE)
NI	PAINT, BULK (1 QT. WHITE (UNCUT))
NI	PAINT, PRESSURIZED SPRAY (12 OZ.) (GRAY PRIMER)
NI	MAY 285448A
NI	MAY 285452A
NI	Inlet Hoses, 5 Ft. (Two Braided Hoses W/Straight Ends & 4 Rubber Washers)
NI	INLET HOSES, 5 FT. (ONE RED HOSE & ONE BLUE HOSE W/STRAIGHT ENDS & 4 RUBBER WASHERS)
NI	MAY 8212546RP
NI	MAY 285208
1	MAY W10140301
2	MAY 285202
3	MAY 3349985
5	SCREW, GEARCASE COVER, MOUNTING (8) (10-24 X 3/8)
6	MAY W10172898
8	MAY 90369
9	Retainer, Spring (2)
10	MAY 62676
11	GEAR, AGITATE
12	MAY 62619
13	MAY 62580
14	CAM, AGITATE
15	MAY 389231
16	MAY 62618
17	MAY 388815
18	MAY 389387
19	Bearing, Thrust (Includes 18)
20	Ball, Bearing (Includes 17)
21	MAY W10111745
22	MAY 3362552
23	MAY 285766
24	MAY 388253
25	MAY 8546456
26	MAY 62621
