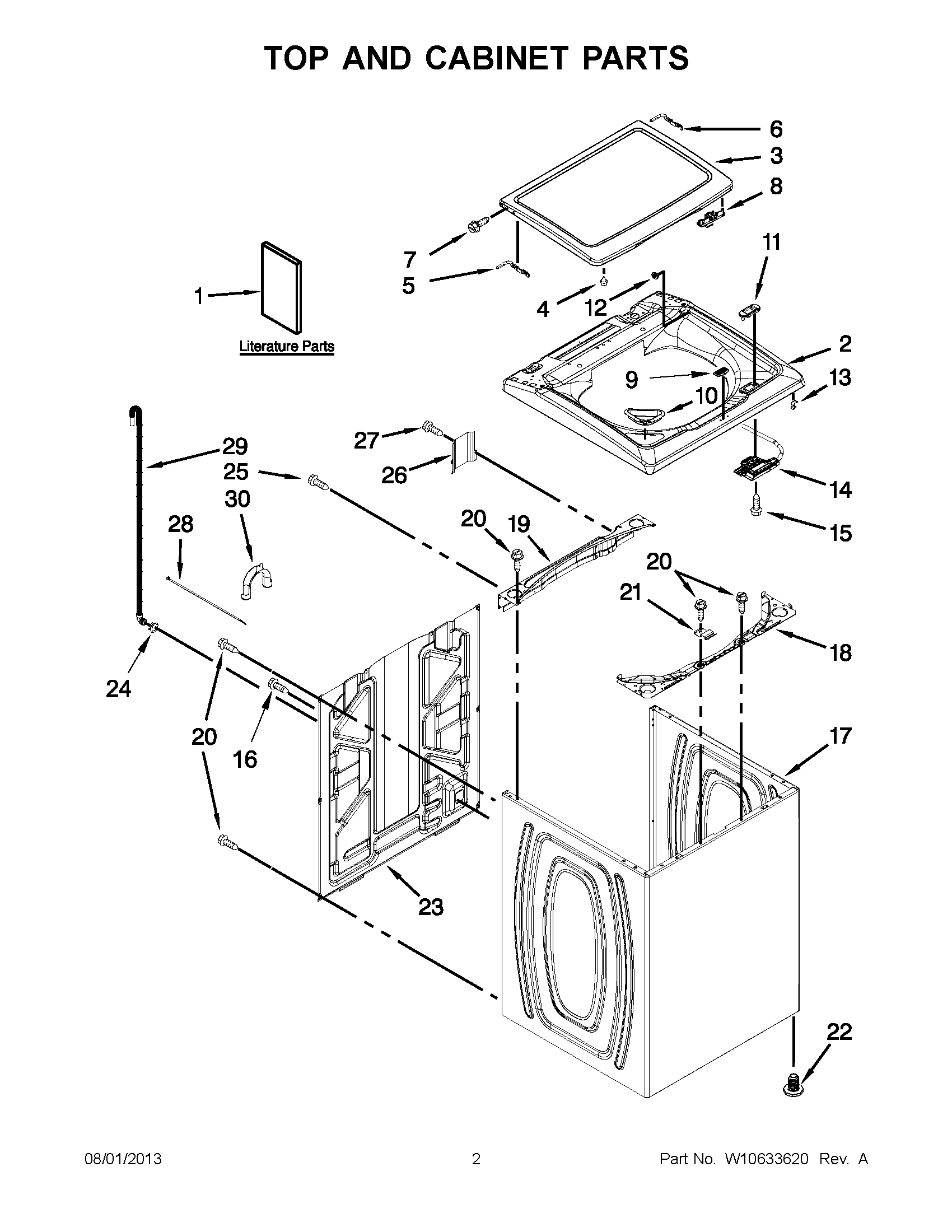

MVWX500BW0 01 – TOP AND CABINET PARTS

Products

Position	Product
1	MAY W10560155
1	MAY W10455762
1	MAY W10062997
1	MAY W10468342
2	TOP (WHITE)
3	LID & BUMPER ASSEMBLY (WHITE)
4	MAY 9724509
5	MAY W10295775
6	MAY W10294031
7	SCREW, LID HINGE
8	MAY W10240513
9	MAY W10492808
10	MAY W10240977
11	MAY W10392041
12	MAY W10293272
12	MAY W10293230
13	Clip, Wire (4)
14	MAY W10238287
15	Screw
16	SCREW
17	MAY W10478060
18	MAY W10215098
19	BRACE, CABINET TOP – REAR
20	MAY 1157158
21	MAY W10248088
22	MAY W10556332
23	PANEL, REAR
24	MAY 356138
25	SCREW
26	MAY W10215139
27	Screw, 10-32 x 5/8
28	TIE, CABLE
29	HOSE, OUTER DRAIN ASSEMBLY
30	MAY W10280024
