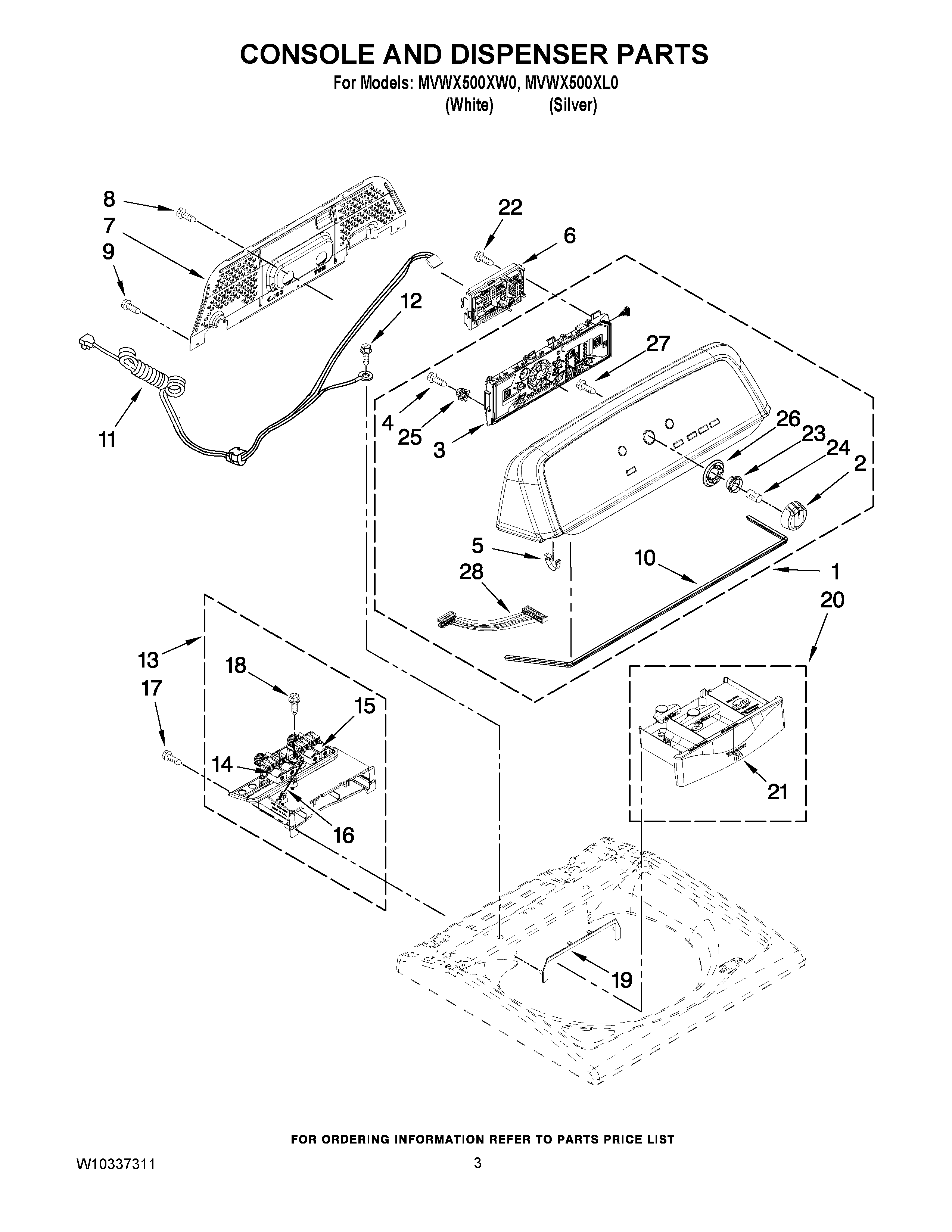

MVWX500XL0 02 – CONSOLE AND DISPENSER PARTS

Products

Position	Product
1	MAY W10293204
1	MAY W10272444
2	MAY W10251381
2	KNOB, CONTROL (CHROME)
3	MAY W10272630
4	MAY W10219342
5	MAY 8312709
6	MAY W10296020
7	MAY W10269597
8	SCREW
9	MAY 1157158
10	MAY W10280079
11	MAY W10266797
12	Screw, 10-32 x 5/8
13	MAY W10240963
14	MAY W10240949
15	MAY W10240948
16	MAY W10240967
17	SCREW, DISPENSER HOUSING MOUNTING
18	MAY 97787
19	MAY W10240946
20	MAY W10240960
21	MAY W10287478
22	SCREW
23	MAY W10326923
24	CLIP, SPRING
25	TENSIONER, FASCIA
26	MAY W10305134
27	SCREW
28	CABLE, USER INTERFACE
