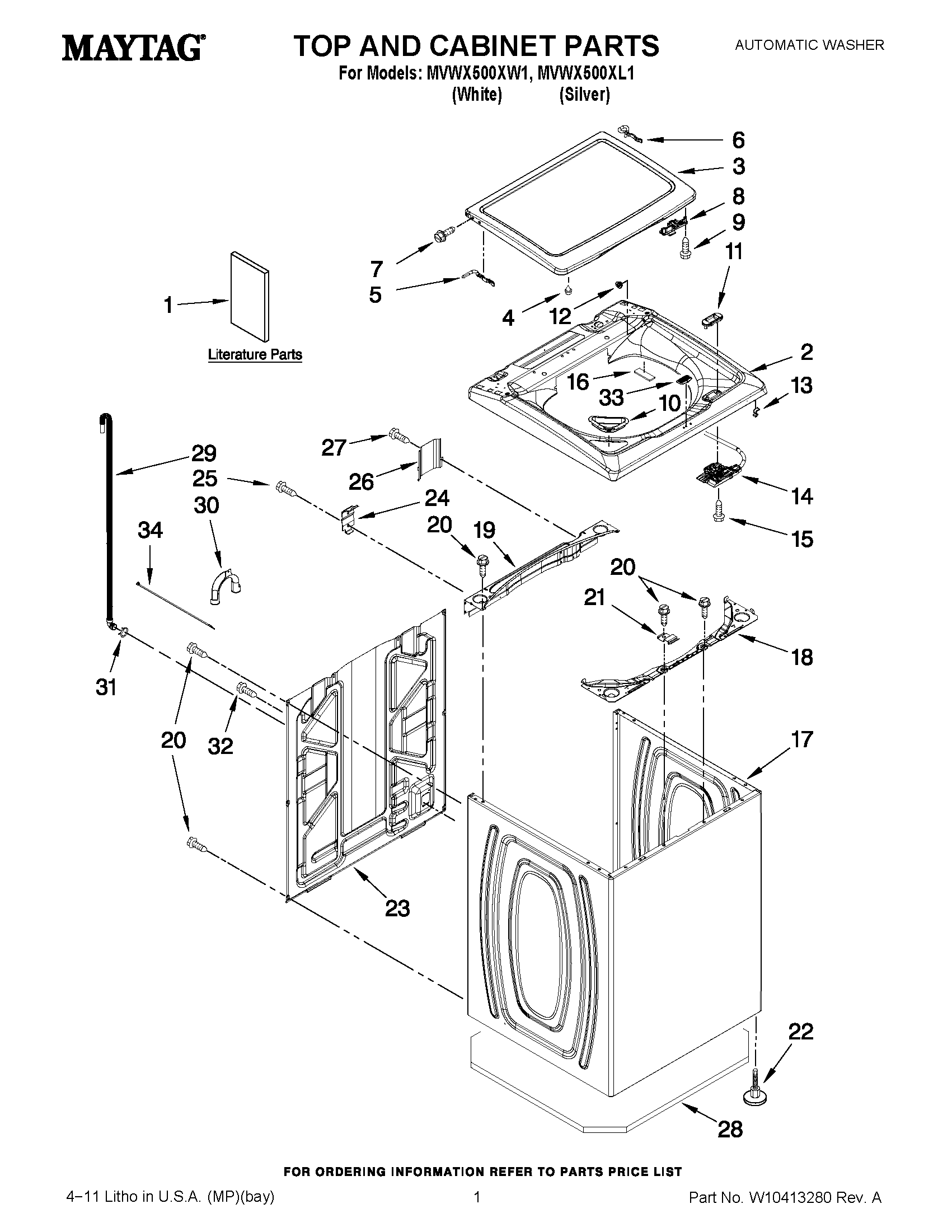

MVWX500XL1 01 – TOP AND CABINET PARTS
Written by
in
MVWX500XL1 01 – TOP AND CABINET PARTS
Products
Position
Product
1
MAY W10280504
1
MAY W10240510
1
MAY W10280467
1
MAY W10338674
1
MAY W10280498
1
MAY W10240509
1
MAY W10062961
2
TOP (WHITE)
2
TOP
3
MAY W10270567
3
LID & BUMPER ASSEMBLY (WHITE)
4
MAY 9724509
5
MAY W10295775
6
MAY W10294031
7
SCREW, LID HINGE
8
MAY W10240514
8
MAY W10240513
9
SCREW
10
MAY W10240977
10
DISPENSER, BLEACH
11
MAY W10392041
11
BEZEL, LID LOCK
12
MAY W10293230
12
MAY W10293272
13
Clip, Wire (4)
14
MAY W10238287
15
Screw
16
MAY W10333228
17
CABINET & FOOT ASSEMBLY (WHITE)
17
CABINET (INCLUDES ITEMS 6, 18, 19, 20 & 22)
18
MAY W10215098
19
BRACE, CABINET TOP – REAR
20
MAY 1157158
21
MAY W10248088
22
MAY W10335586
23
PANEL, REAR
24
MAY W10215102
25
SCREW
26
MAY W10215139
27
Screw, 10-32 x 5/8
28
MAY W10317148
29
HOSE, OUTER DRAIN ASSEMBLY
30
MAY W10280024
31
MAY 356138
32
SCREW
33
MAY W10323735
34
TIE, CABLE
←
