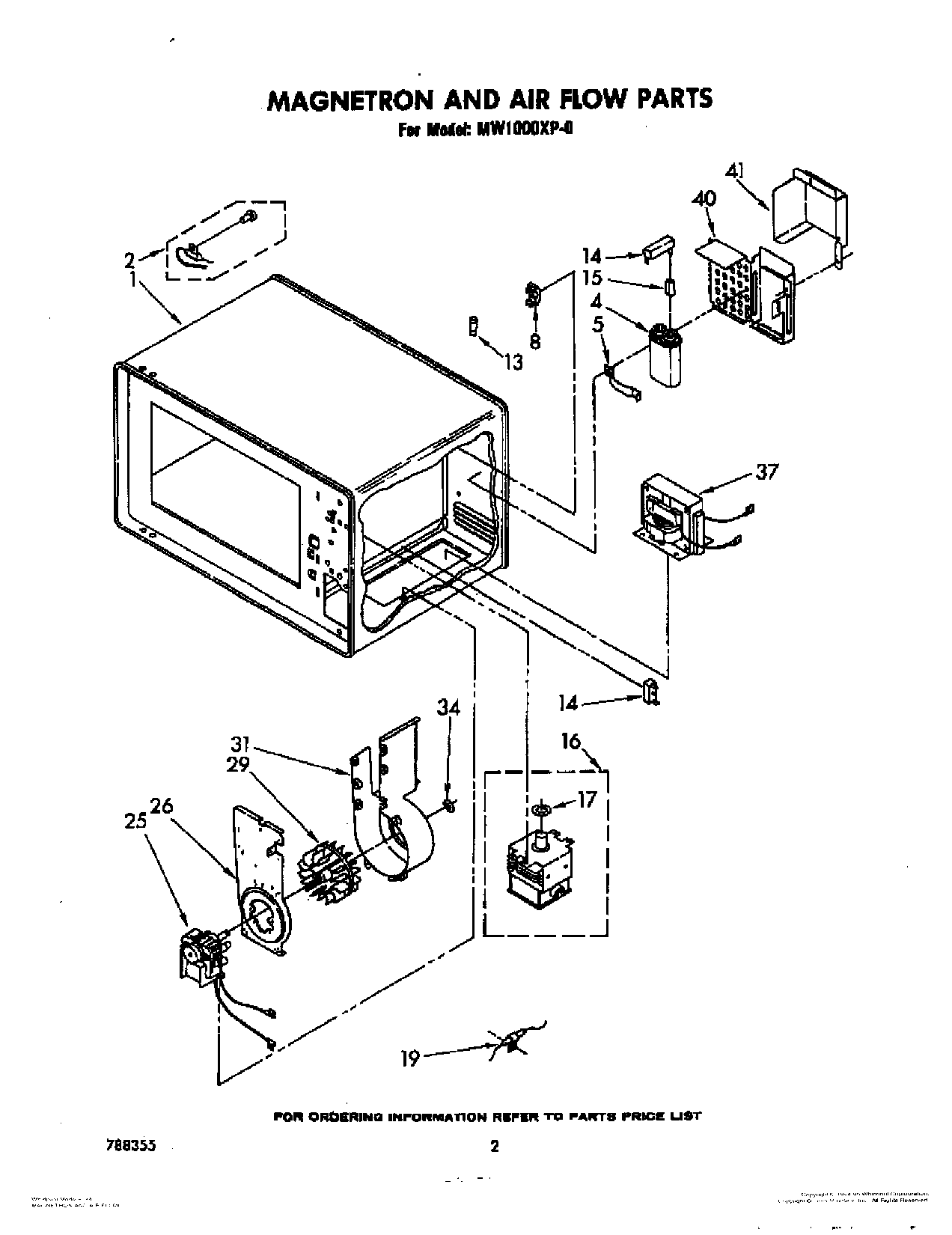

MW1000XP0 02 – MAGNETRON AND AIR FLOW

MW1000XP0 02 – MAGNETRON AND AIR FLOW

Written by

in

MW1000XP0 02 – MAGNETRON AND AIR FLOW

Products

PositionProduct
1Cavity Assembly (Not Serviceable)
2Protector, Thermal
4Capacitor
5Bracket, Capacitor Mounting
8Holder, Fuse
8Screw, 4-40 x 1/4 Phillips Pan Head
8Nut, 4-40
13Fuse (12 Amp)
14Diode
15Terminal, Adapter
16Magnetron (Includes Illus. No.17)
16Nut, 5mm (4)
17Gasket, Magnetron
19Thermal Protector, Magnetron
25WP486255 Whirlpool Air Conditioner Nut
25Motor, Blower (Includes Illus. 34)
25WP250830 Whirlpool Refrigerator Screw
26Bracket, Blower
29Wheel, Blower
31Screw, 8-18 x 1/2 (3)
31Housing, Blower
34E-Ring, Blower Wheel
37Transformer
37S\cr\ew, 10-32 x 3/8 Hex Washer Head (4)
40Cover, Lead
41Cover, Capacitor
41WP90767 Whirlpool Screw
