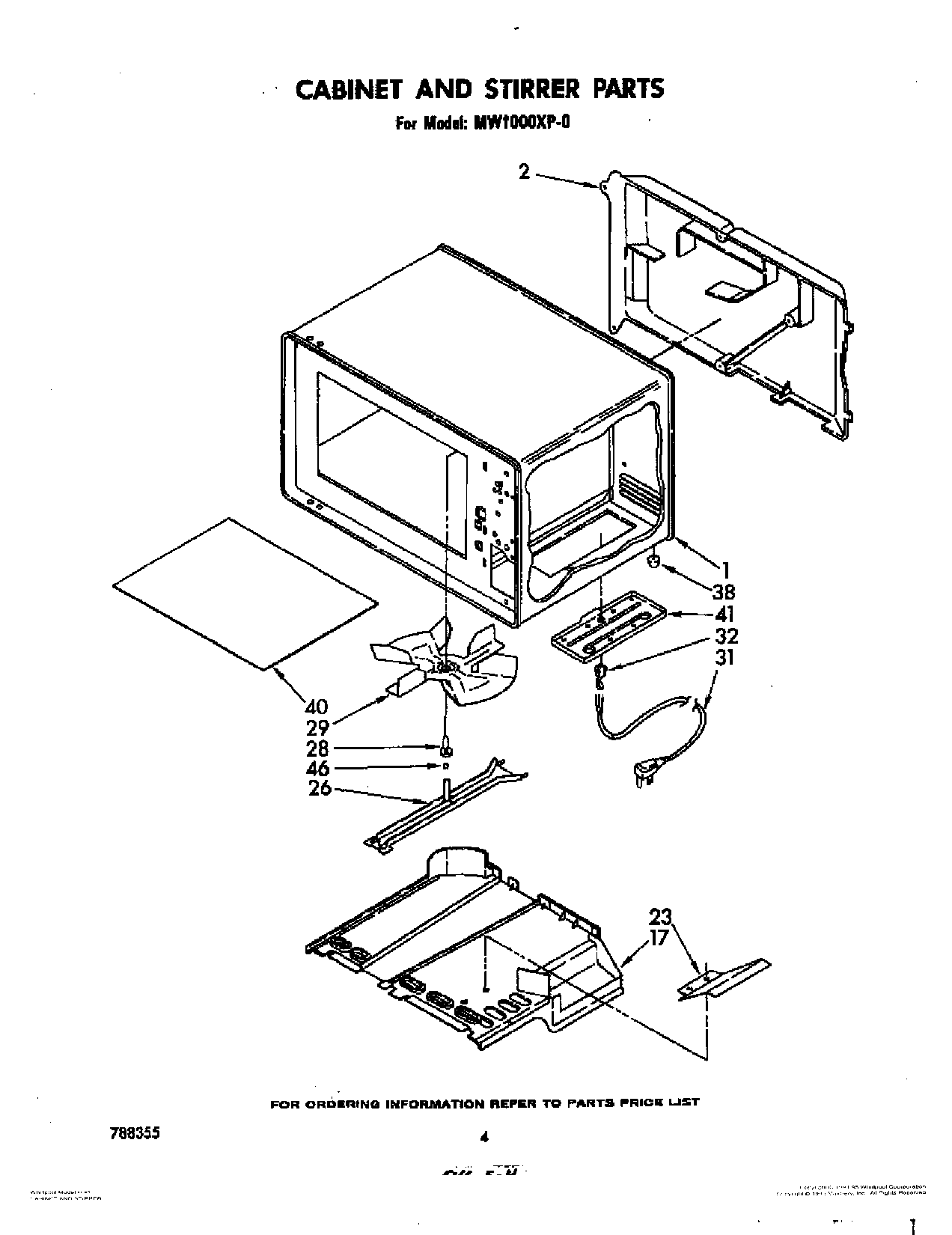

MW1000XP0 03 – CABINET AND STIRRER

MW1000XP0 03 – CABINET AND STIRRER

Written by

in

MW1000XP0 03 – CABINET AND STIRRER

Products

PositionProduct
1Cabinet (Not A Serviceable Part)
2Cover, Rear
17Cover, Stirrer
23Rivet
23Baffle, Right Air
26Rivet
26Support Bar, Stirrer
28Insert, Stirrer
29Blade, Stirrer
31Clamp
31Cord, Power
31Washer, No.8
31WP486255 Whirlpool Air Conditioner Nut
31Screw, 8-32 x 3/8
32Relief, Strain
38Foot (4)
38Rivet (4)
40Shelf (Order Sealant Part No. 482338 For Installation Of Shelf)
41Clip (4)
41Panel, Access (Includes Illus. 38)
41WP90767 Whirlpool Screw
46Bearing, Stirrer
