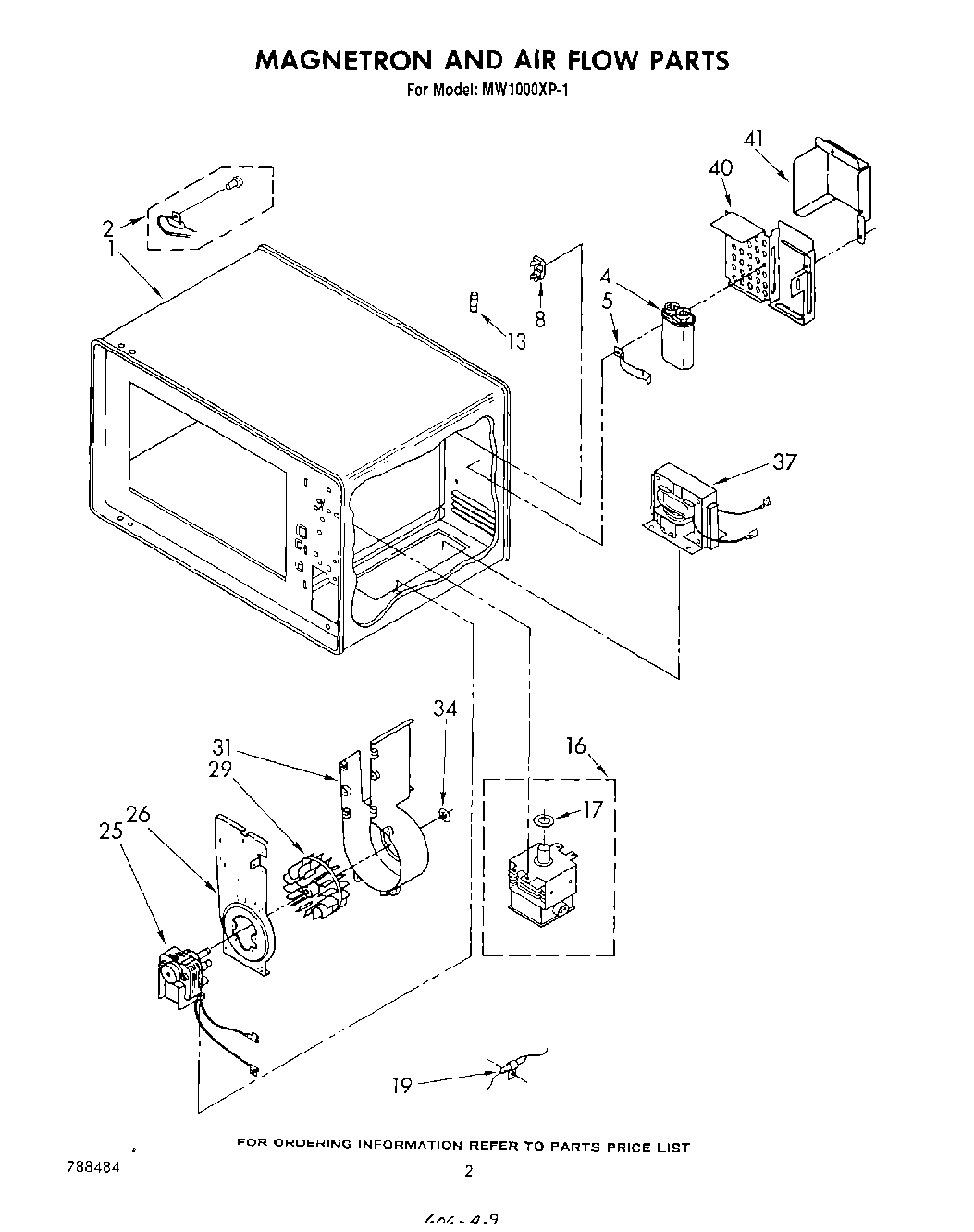

MW1000XP1 02 – MAGNETRON AND AIR FLOW

MW1000XP1 02 – MAGNETRON AND AIR FLOW

Written by

in

MW1000XP1 02 – MAGNETRON AND AIR FLOW

Products

PositionProduct
1Cavity Assembly (Not Serviceable)
2Protector, Thermal
4Capacitor / Diode
5Bracket, Capacitor Mounting
8Holder, Fuse
8Nut, 4-40
8Screw, 4-40 x 1/4 Phillips Pan Head
13Fuse (12 Amp)
16Nut, 5mm (4)
16Magnetron (Includes Illus. No.17)
17Gasket, Magnetron
19Thermal Protector, Magnetron
25WP250830 Whirlpool Refrigerator Screw
25WP486255 Whirlpool Air Conditioner Nut
25Motor, Blower (Includes Illus. 34)
26Bracket, Blower
29Wheel, Blower
31Housing, Blower
31Screw, 8-18 x 1/2 (3)
34E-Ring, Blower Wheel
37S\cr\ew, 10-32 x 3/8 Hex Washer Head (4)
37Transformer
40Cover, Lead
41WP90767 Whirlpool Screw
41Cover, Capacitor
