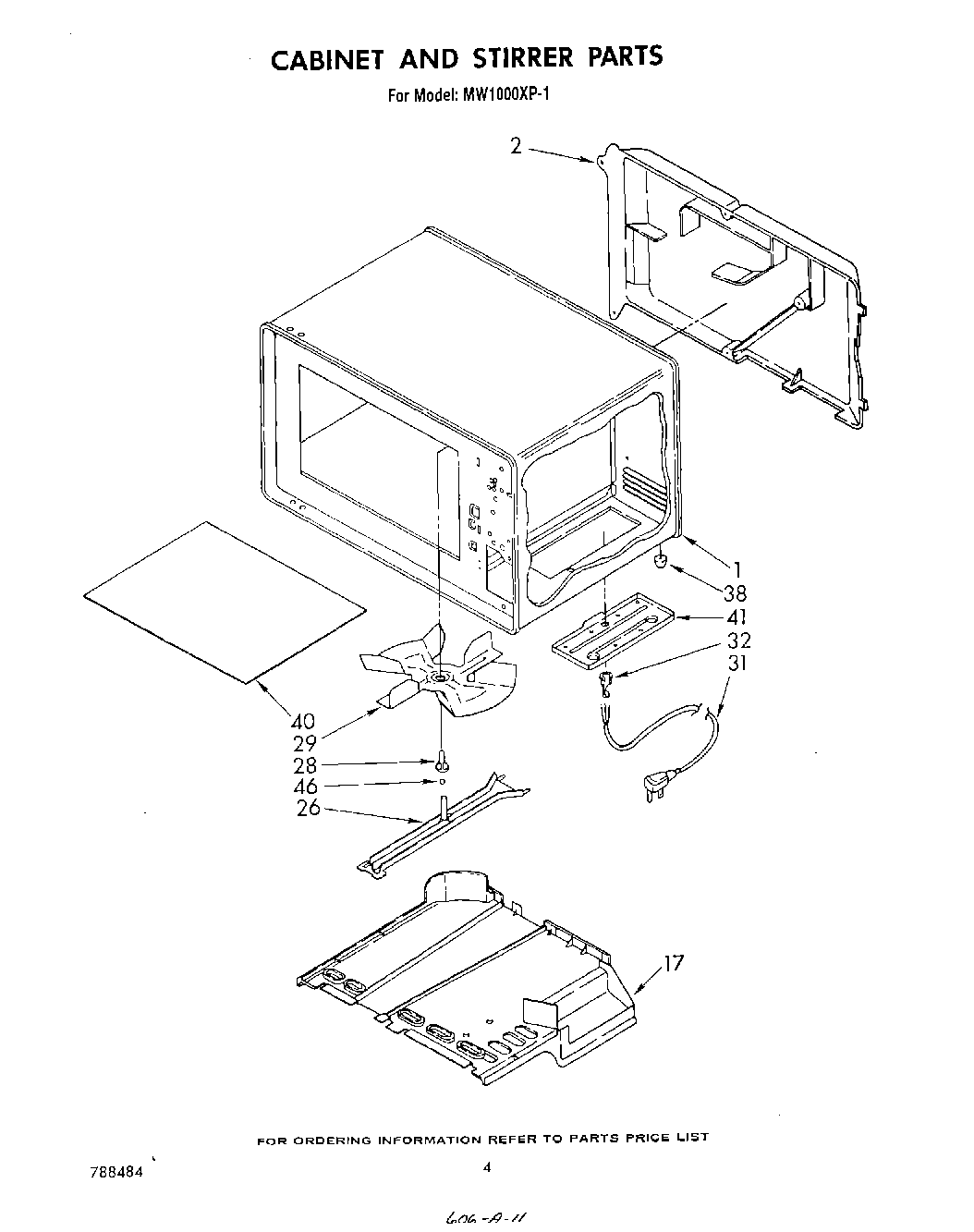

MW1000XP1 03 – CABINET AND STIRRER

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	Cover, Rear
17	Cover, Stirrer
26	Support Bar, Stirrer
26	Rivet
28	Insert, Stirrer
29	Blade, Stirrer
31	Washer, No.8
31	Clamp
31	Cord, Power
31	WP486255 Whirlpool Air Conditioner Nut
31	Screw, 8-32 x 3/8
32	Relief, Strain
38	Foot (4)
38	Rivet (4)
40	Shelf (Order Sealant Part No. 482338 For Installation Of Shelf)
41	Clip (4)
41	Panel, Access (Includes Illus. 38)
41	WP90767 Whirlpool Screw
46	Bearing, Stirrer
