MW1000XS0 02 – CABINET

MW1000XS0 02 – CABINET

Written by

in

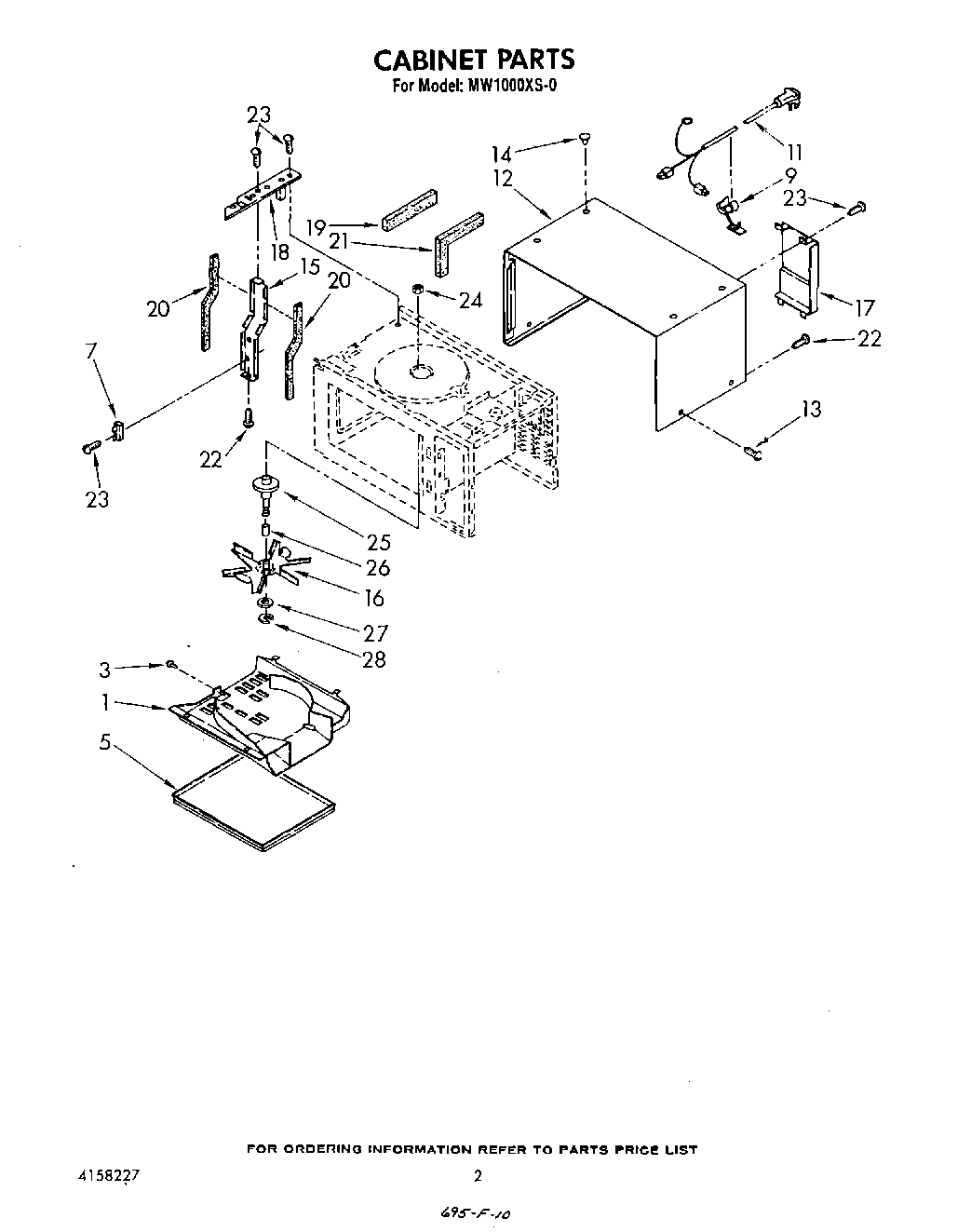

MW1000XS0 02 – CABINET

Products

Position	Product
1	Cover, Stirrer
3	Rivet (3)
5	Shelf, Cavity
7	Fuse, Thermal
9	Strain Relief
11	Cord, Power
12	Wrapper, Cabinet
13	Screw
14	Plug, Hole
15	Air Guide
16	Blade, Stirrer
17	Cover, Rear
18	Bracket
19	Seal, Foam
20	Seal, Foam
21	Seal, Foam
22	W11380570 Whirlpool Microwave Screw
23	Screw (2)
24	Nut (2)
25	Mounting Axle
26	Bushing
27	Sliding Washer
28	Retainer
