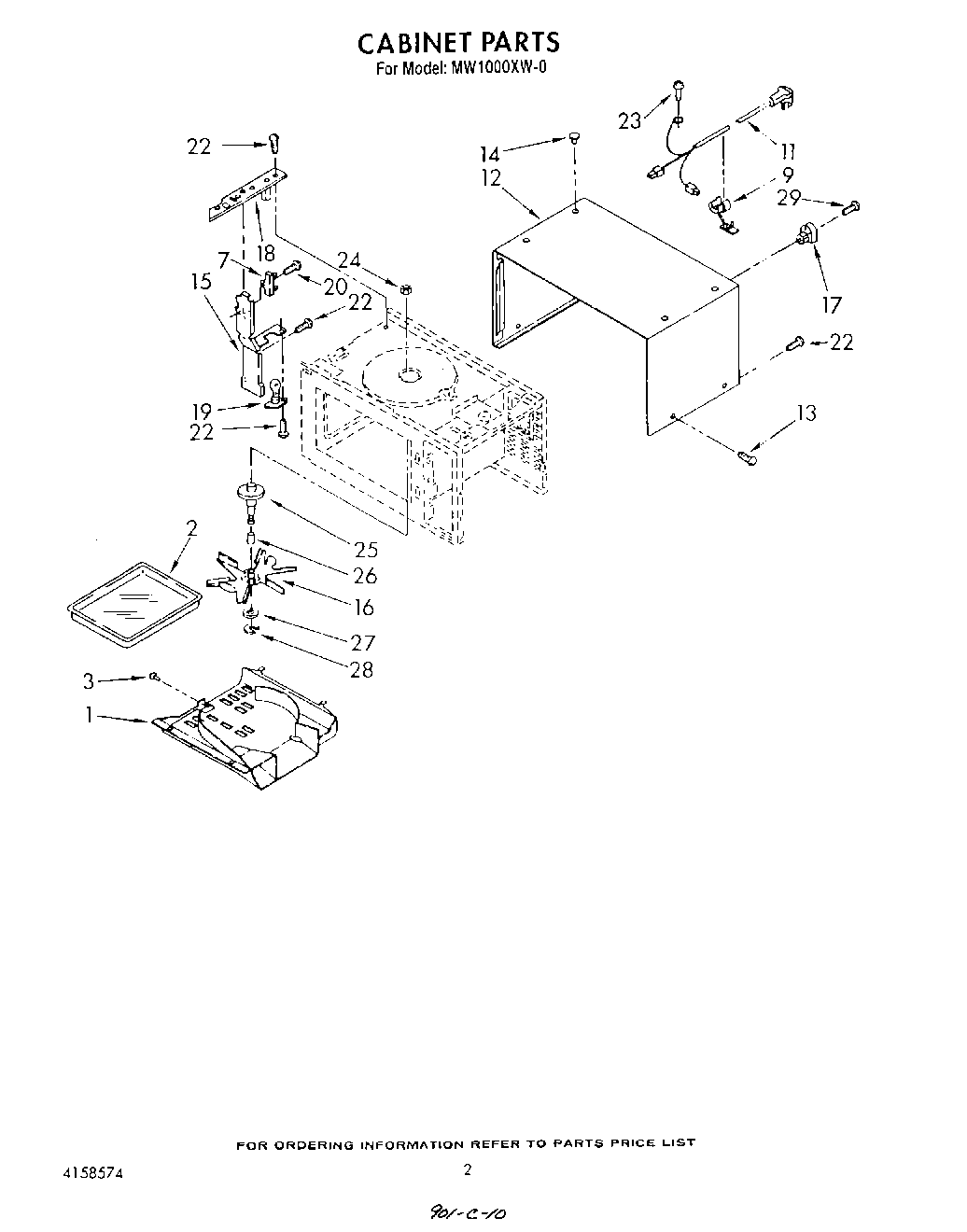

MW1000XW0 02 – CABINET

MW1000XW0 02 – CABINET

Written by

in

MW1000XW0 02 – CABINET

Products

Position	Product
1	Cover, Stirrer
2	Shelf, Cavity
3	Rivet (3)
7	Fuse, Thermal
9	Strain Relief
11	Cord, Power
12	Wrapper, Cabinet
13	Screw
14	Plug, Hole
15	Air Guide
16	Blade, Stirrer
17	Spacer
18	Bracket
19	Base Less Light
20	Screw (2)
22	W11380570 Whirlpool Microwave Screw
23	Screw (2)
24	Nut (2)
25	Mounting Axle
26	Bushing
27	Sliding Washer
28	Retainer
29	Special Screw (2)
