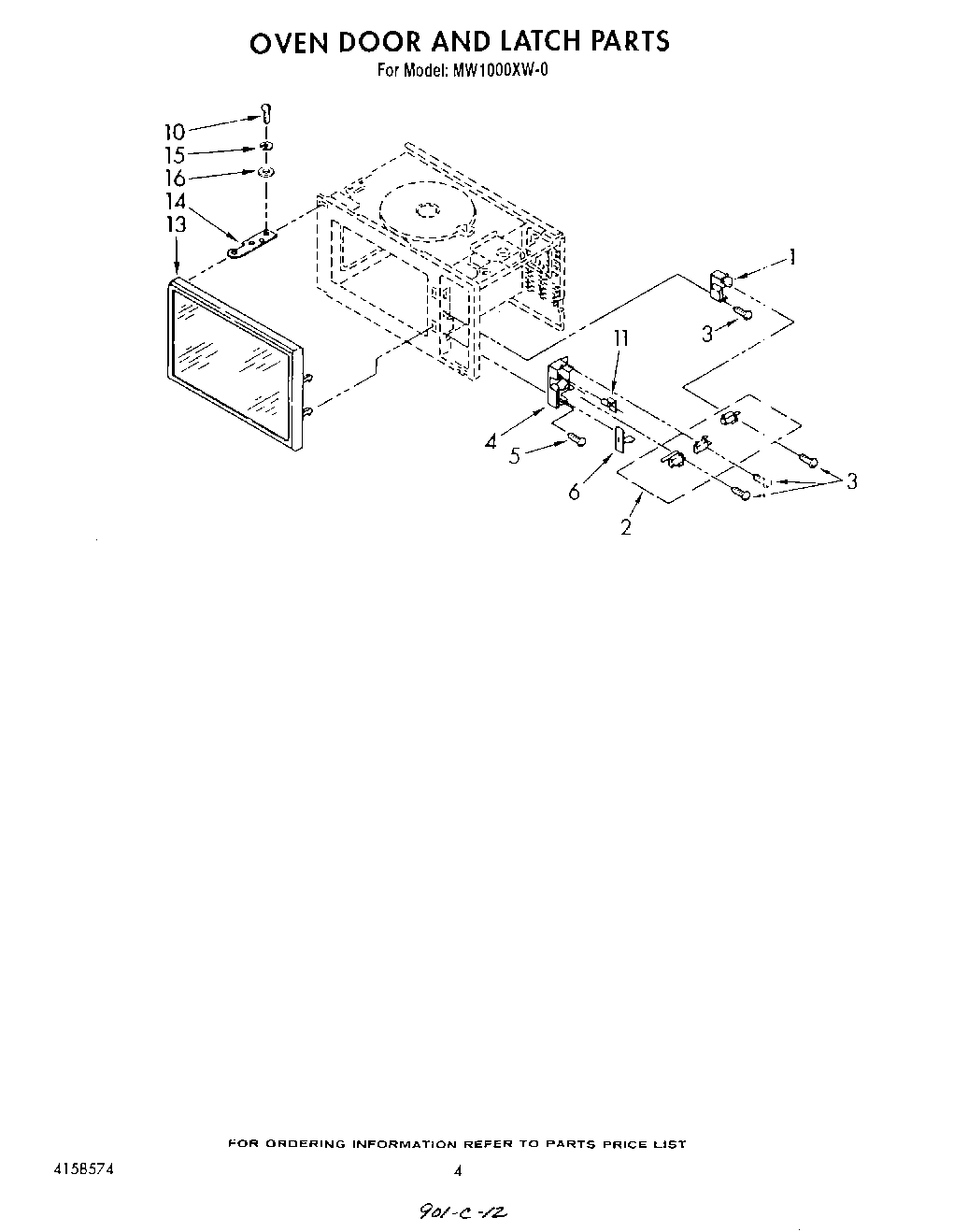

MW1000XW0 04 – OVEN DOOR AND LATCH

Written by

Products

Position	Product
1	Latch, Upper
2	Interlock, Switch Kit (All switches must be replaced if one fails.)
3	Screw (2)
4	Latch, Lower
5	Special Screw (2)
6	Rod, Release
10	Screw, 5 x 16mm
11	Switch
13	Door, Complete
14	Hinge Plate, Upper
15	Washer
16	Washer
