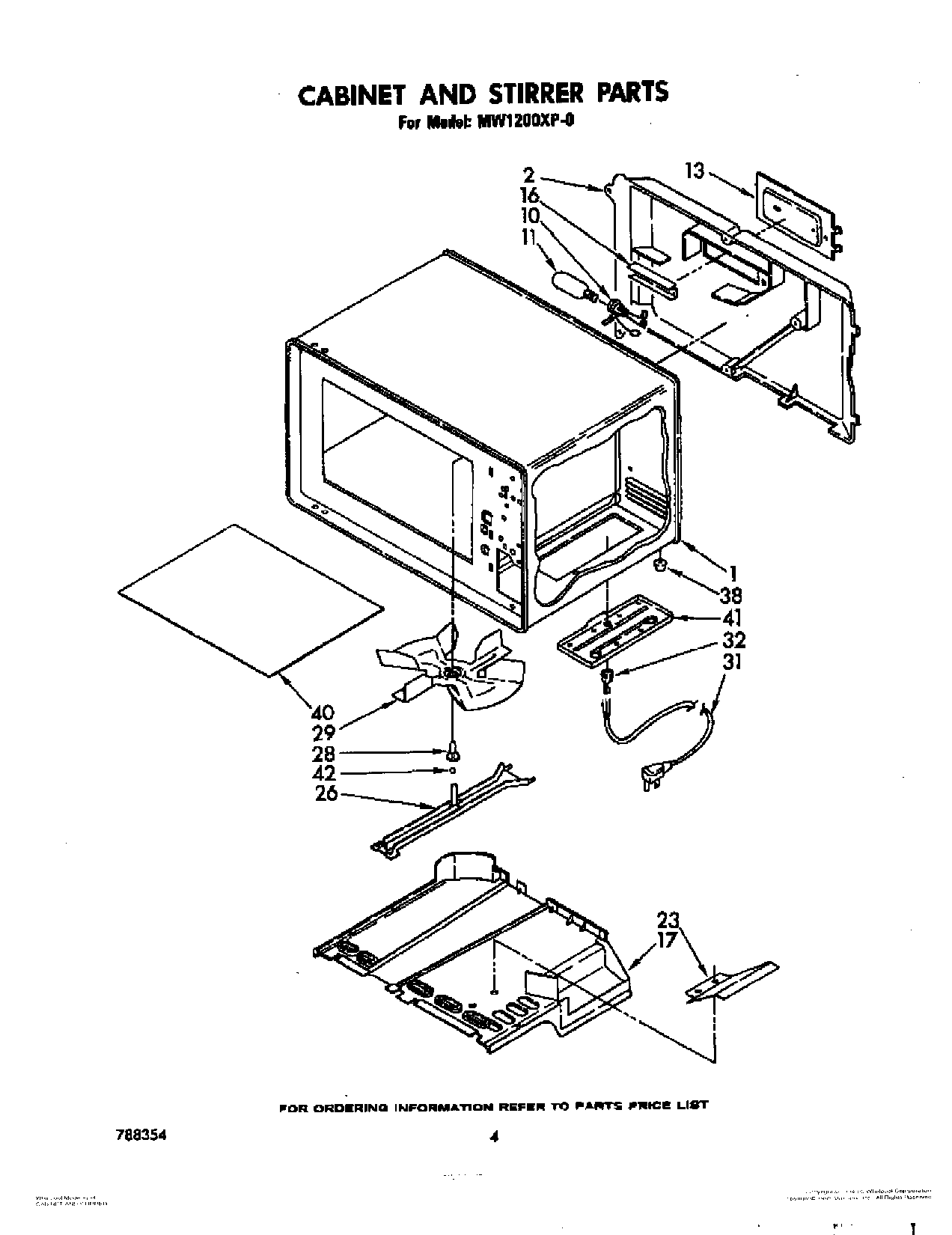

MW1200XP0 03 – CABINET AND STIRRER

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	Cover, Rear
10	Socket, Lamp
11	Lamp
13	Cover, Component
16	WP488130 Whirlpool Air Conditioner Nut
16	Reflector
16	Screw
17	Cover, Stirrer
23	Baffle, Right Air
23	Rivet
26	Rivet
26	Support Bar, Stirrer
28	Insert, Stirrer
29	Blade, Stirrer
31	Cord, Power
31	Clamp
31	WP486255 Whirlpool Air Conditioner Nut
31	Screw, 8-32 x 3/8
31	Washer, No.8
32	Relief, Strain
38	Foot (4)
38	Rivet (4)
40	Shelf (Order Sealant Part No. 482338 For Installation Of Shelf)
41	Clip (4)
41	Panel, Access (Includes Illus. 38)
41	WP90767 Whirlpool Screw
42	Bearing, Stirrer
