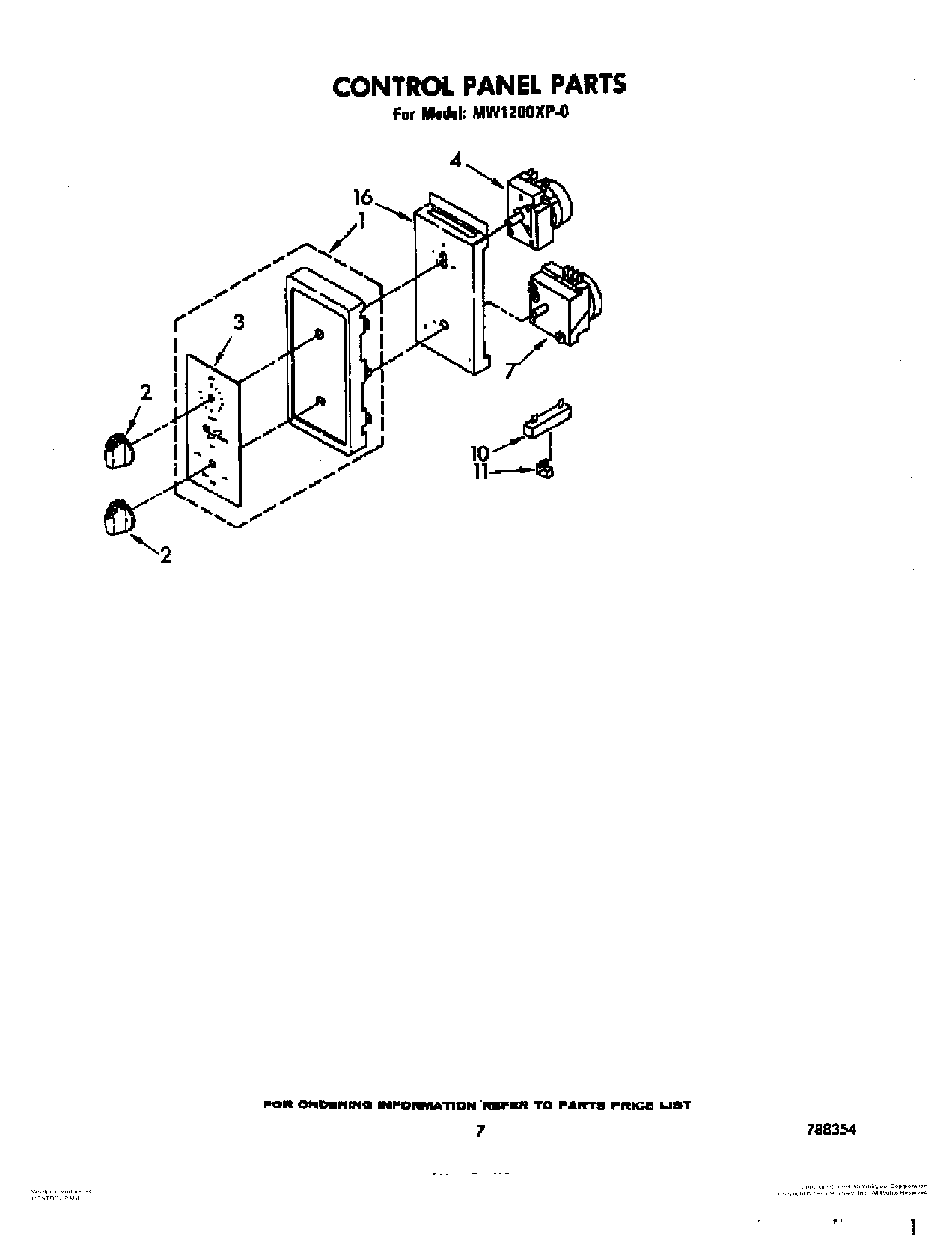

MW1200XP0 05 – CONTROL PANEL, LIT/OPTIONAL

MW1200XP0 05 – CONTROL PANEL, LIT/OPTIONAL

Written by

in

MW1200XP0 05 – CONTROL PANEL, LIT/OPTIONAL

Products

PositionProduct
Guide, Cooking
Guide, Use & Care
Cookbook
List, Repair Parts
1Decorative Panel Control (Includes Inlay)
2Knob, Timer
3Inlay, Control Panel
4Screw, 6-32 x 1/4 (2)
4Timer (25 Minute)
7Variable Power Selector
7Screw, 6-32 x 1/2 Slotted Hex Washer Head (2)
10Resistor, Surge
11Bracket, Surge Resistor
11Screw, 8-32 x 3/8 Phillips Pan Head
11WP486255 Whirlpool Air Conditioner Nut
16WP72107 Whirlpool Touchup
16WP90767 Whirlpool Screw
16WP482338 Whirlpool Refrigerator Adhesive
16Plate, Component Mounting
16Under Cabinet Mounting Kit (Complete)
16Wall Mounting Kit (Complete)
16Driver, Torx (T-20)
16350956 Whirlpool Spray Assembly
