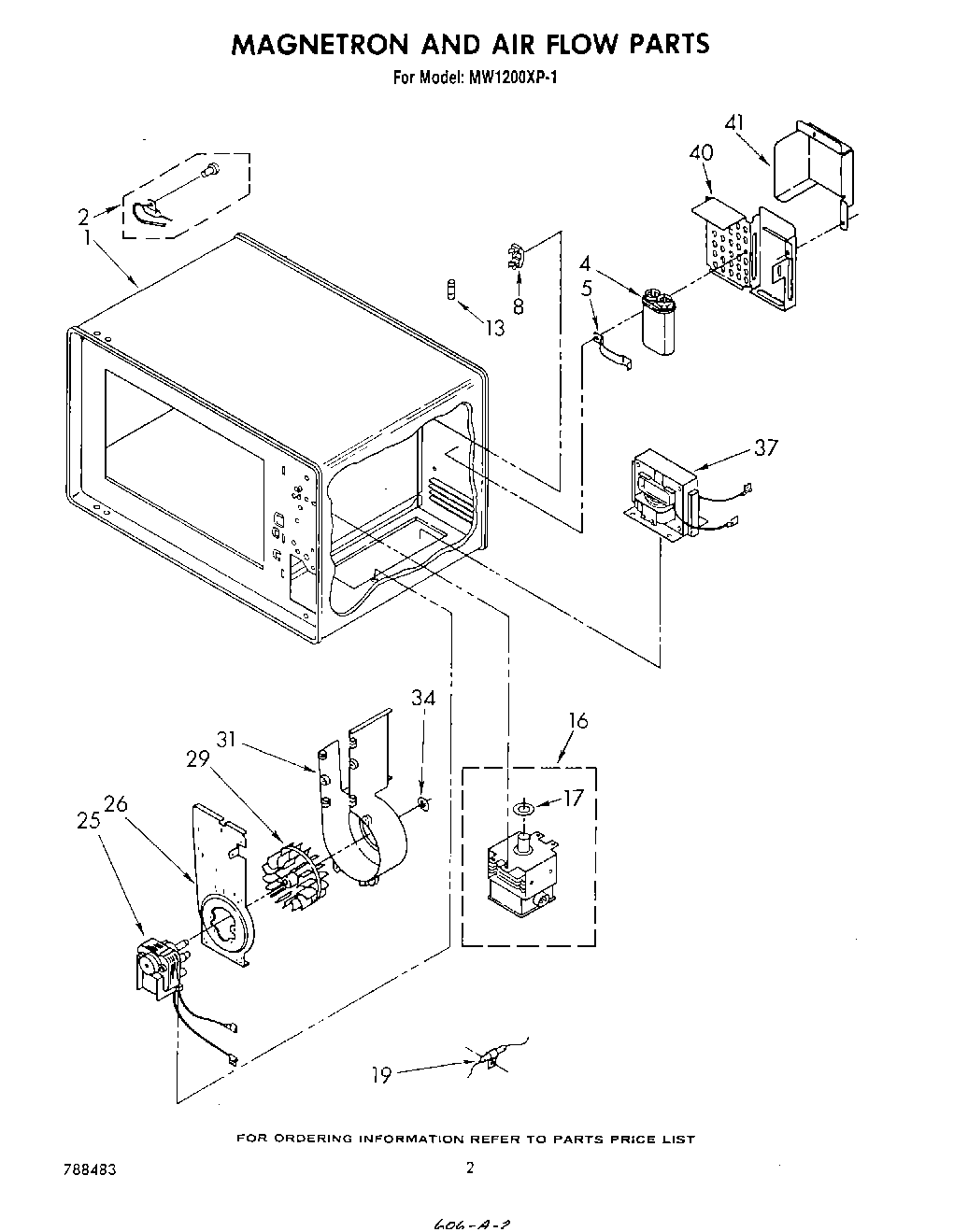

MW1200XP1 02 – MAGNETRON AND AIR FLOW

MW1200XP1 02 – MAGNETRON AND AIR FLOW

Written by

in

MW1200XP1 02 – MAGNETRON AND AIR FLOW

Products

PositionProduct
1Cavity Assembly (Not Serviceable)
2Protector, Thermal
4Capacitor / Diode
5Bracket, Capacitor Mounting
8Holder, Fuse
8Screw, 4-40 x 1/4 Phillips Pan Head
8Nut, 4-40
13Fuse (12 Amp)
16Magnetron (Includes Illus. No.17)
16Nut, 5mm (4)
17Gasket, Magnetron
19Thermal Protector, Magnetron
25Motor, Blower (Includes Illus. 34)
26Bracket, Blower
29Wheel, Blower
31Housing, Blower
31Screw, 8-18 x 1/2 (3)
34E-Ring, Blower Wheel
37Transformer
37S\cr\ew, 10-32 x 3/8 Hex Washer Head (4)
40Cover, Capacitor
41Cover, Lead
41WP90767 Whirlpool Screw
