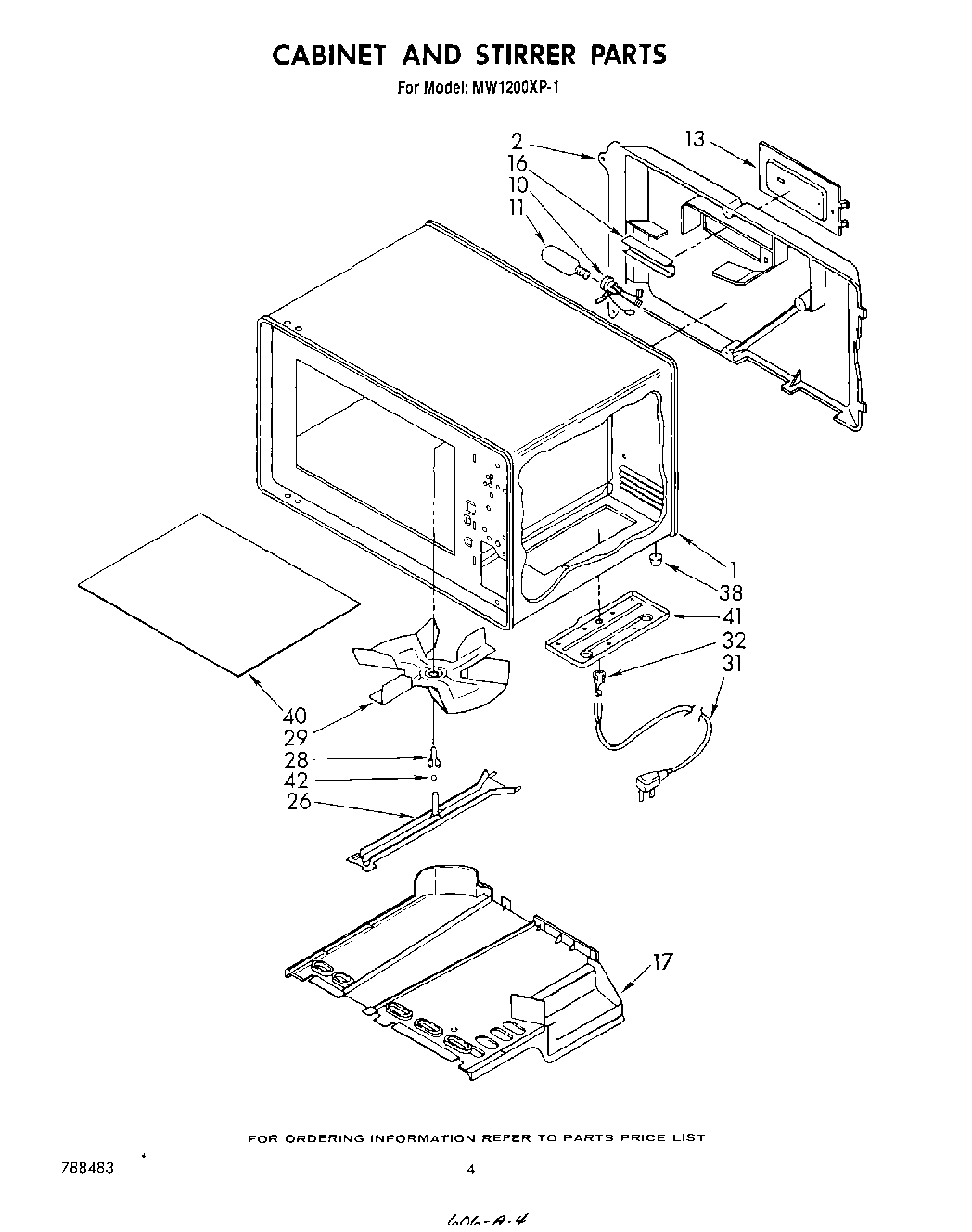

MW1200XP1 03 – CABINET AND STIRRER

MW1200XP1 03 – CABINET AND STIRRER

Written by

in

MW1200XP1 03 – CABINET AND STIRRER

Products

PositionProduct
1Cabinet (Not A Serviceable Part)
2Cover, Rear
10Socket, Lamp
11Lamp
13Cover, Component
16Screw
16Reflector
16WP488130 Whirlpool Air Conditioner Nut
17Cover, Stirrer
26Rivet
26Support Bar, Stirrer
28Insert, Stirrer
29Blade, Stirrer
31Washer, No.8
31Clamp
31Cord, Power
31WP486255 Whirlpool Air Conditioner Nut
31Screw, 8-32 x 3/8
32Relief, Strain
38Foot (4)
38Rivet (4)
40Shelf (Order Sealant Part No. 482338 For Installation Of Shelf)
41Clip (4)
41Panel, Access (Includes Illus. 38)
41WP90767 Whirlpool Screw
42Bearing, Stirrer
