MW1200XP1 05 – CONTROL PANEL , LITERATURE AND OPTIONAL

Products

PositionProduct
Guide, Cooking
List, Repair Parts
Guide, Use & Care

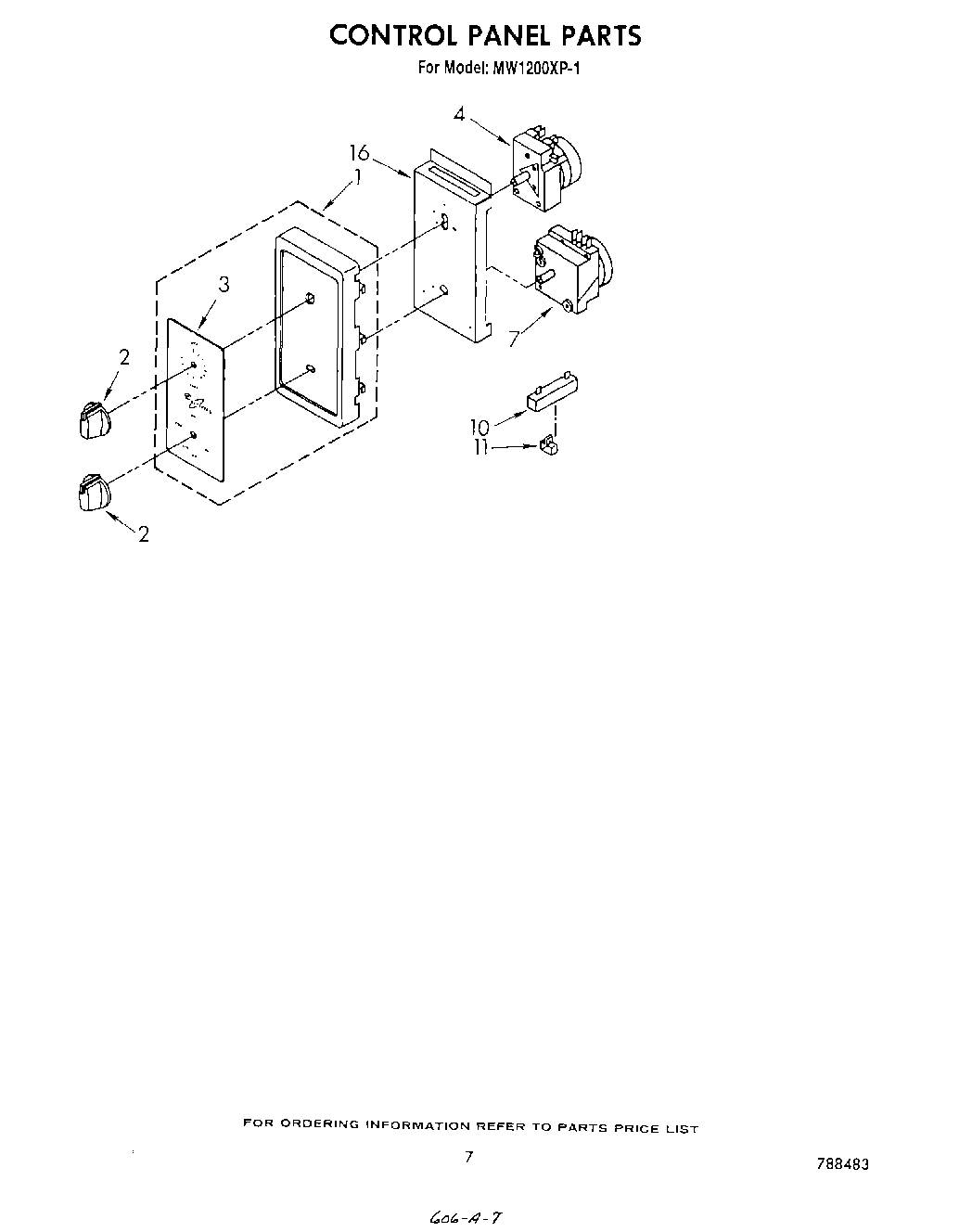

1Decorative Panel Control (Includes Inlay)
2Knob, Timer
3Inlay, Control Panel
4Timer (25 Minute)
4Screw, 6-32 x 1/4 (2)
7Variable Power Selector
7Screw, 6-32 x 1/2 Slotted Hex Washer Head (2)
10Resistor, Surge
11Bracket, Surge Resistor
11Screw, 8-32 x 3/8 Phillips Pan Head
11WP486255 Whirlpool Air Conditioner Nut
16Driver, Torx (T-20)
16WP72107 Whirlpool Touchup
16WP90767 Whirlpool Screw
16Plate, Component Mounting
16WP482338 Whirlpool Refrigerator Adhesive
16Under Cabinet Mounting Kit (Complete)
16Wall Mounting Kit (Complete)
16350956 Whirlpool Spray Assembly
