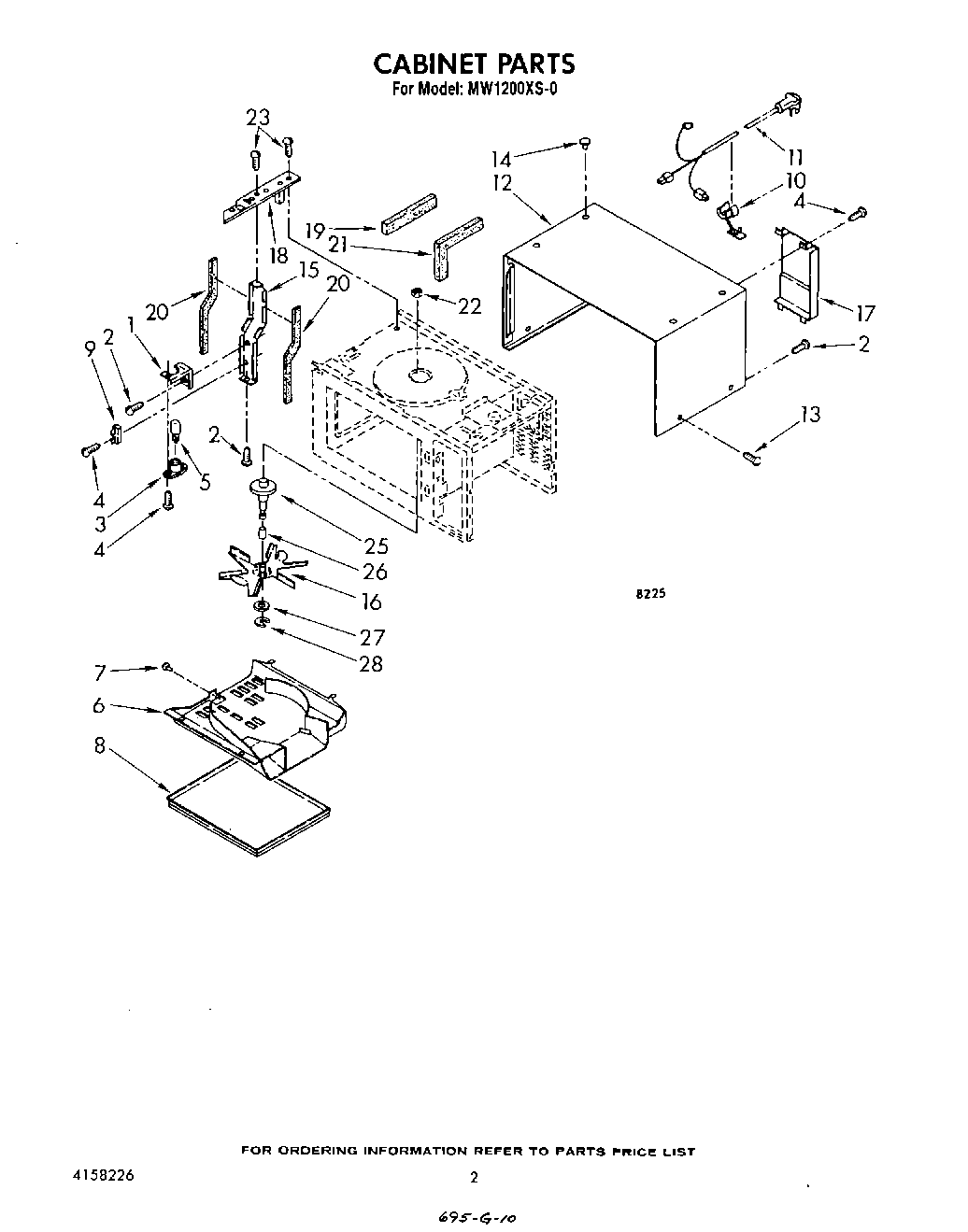

| 1 | Bracket, Light |
| 2 | W11380570 Whirlpool Microwave Screw |
| 3 | Socket, Lamp |
| 4 | Screw (2) |
| 5 | Bulb |
| 6 | Cover, Stirrer |
| 7 | Rivet (3) |
| 8 | Shelf, Cavity |
| 9 | Fuse, Thermal |
| 10 | Strain Relief |
| 11 | Cord, Power |
| 12 | Wrapper, Cabinet |
| 13 | Screw |
| 14 | Plug, Hole |
| 15 | Air Guide |
| 16 | Blade, Stirrer |
| 17 | Cover, Rear |
| 18 | Bracket |
| 19 | Seal, Foam |
| 20 | Seal, Foam |
| 21 | Seal, Foam |
| 22 | Nut (2) |
| 23 | Screw, 4 x 8 mm |
| 25 | Mounting Axle |
| 26 | Bushing |
| 27 | Sliding Washer |
| 28 | Retainer |
