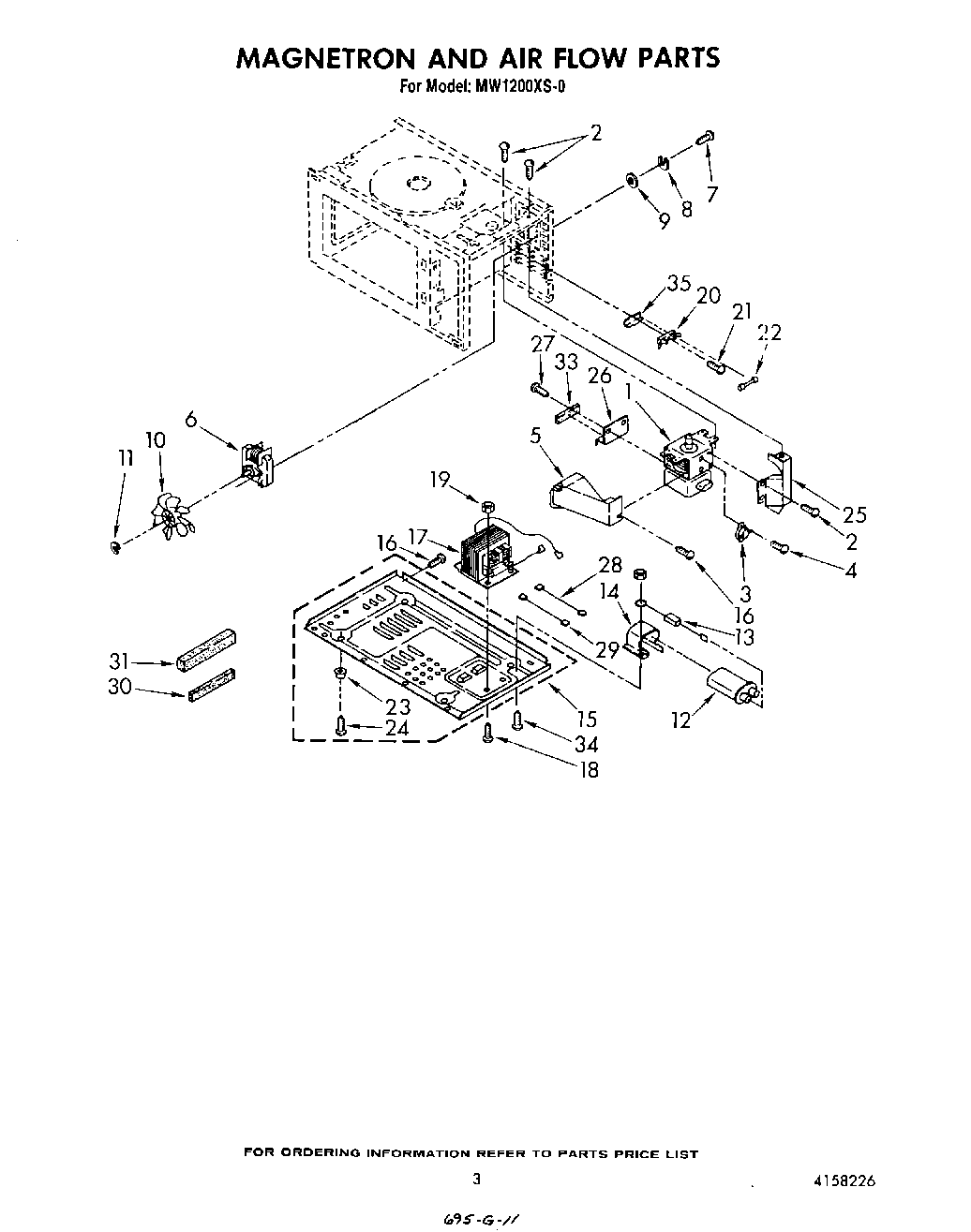

MW1200XS0 03 – MAGNETRON AND AIRFLOW

Products

Position	Product
1	Magnetron
2	Screw, 4 x 8 mm
3	Thermal Protector
4	Screw (2)
5	Duct, Air
6	Motor, Fan
7	Screw, 4 x 10 mm
8	Washer
9	Washer
10	Fan
11	E-Ring
12	Capacitor
13	Diode
14	Bracket, Capacitor
15	Plate, Base (Includes Illus. No. 23)
16	W11380570 Whirlpool Microwave Screw
17	Transformer
18	Screw, 5 x 16 mm (2)
19	Nut (2)
20	Holder, Fuse
21	Screw (2)
22	Fuse
23	Foot (4)
24	Screw
25	Cover
26	Bracket, Magnetron
27	Screw (2)
28	Lead, High Voltage
29	Lead, High Voltage
30	Seal, Foam
31	Seal, Foam
33	Seal, Foam
34	Screw, 4 x 8 mm
35	Plate, Discharge
