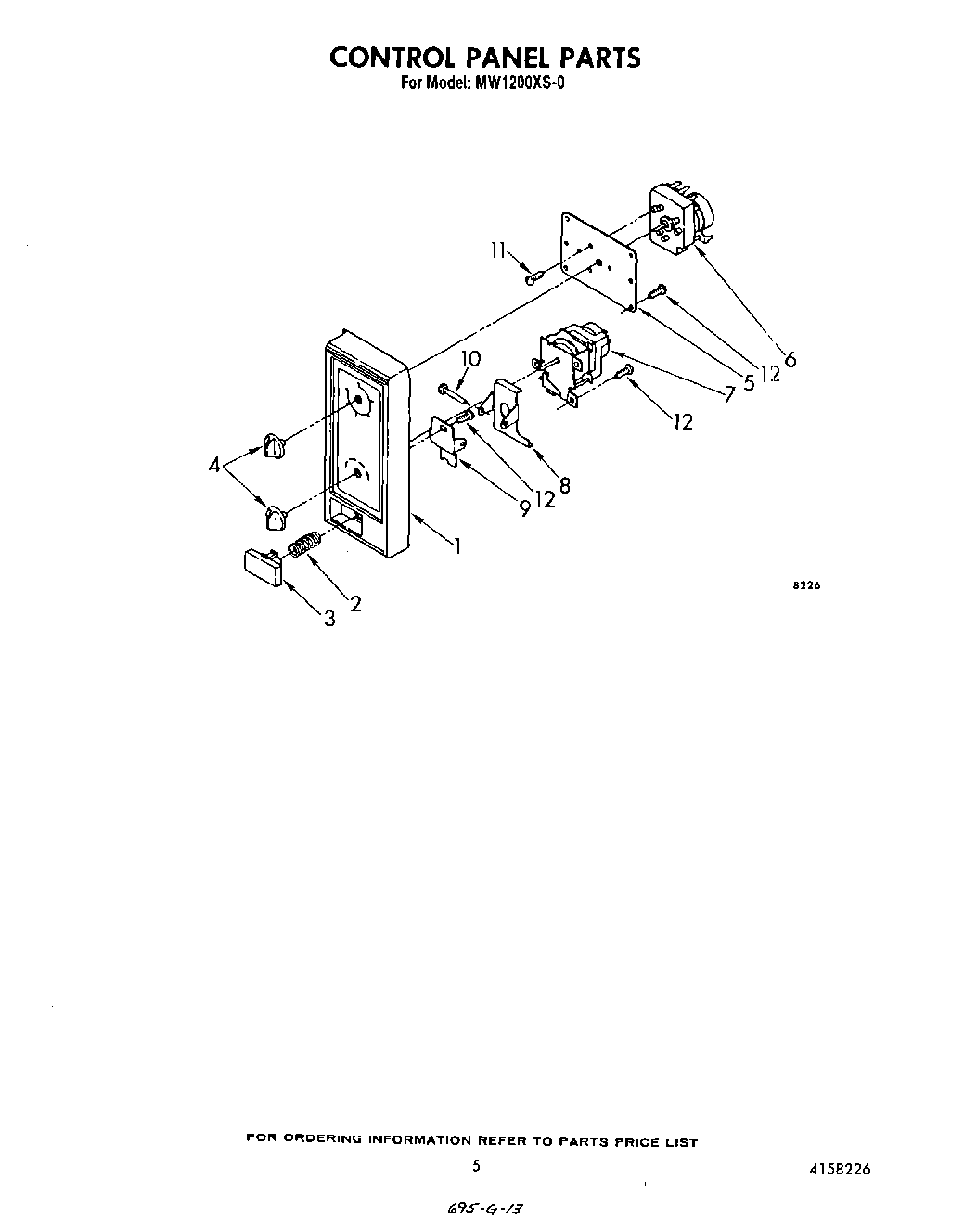

MW1200XS0 05 – CONTROL PANEL
Products
| Position | Product |
|---|---|
| 1 | Frame, Control Panel |
| 2 | Spring, Button |
| 3 | Button, Push To Start |
| 4 | Knob |
| 5 | Bracket, Timer |
| 6 | Timer |
| 7 | Variable Power Control |
| 8 | Lever, Release |
| 9 | Base, Lever |
| 10 | Pin, Lever |
| 11 | Screw |
| 12 | Screw (2) |
MW1200XS0 05 – CONTROL PANEL
| Position | Product |
|---|---|
| 1 | Frame, Control Panel |
| 2 | Spring, Button |
| 3 | Button, Push To Start |
| 4 | Knob |
| 5 | Bracket, Timer |
| 6 | Timer |
| 7 | Variable Power Control |
| 8 | Lever, Release |
| 9 | Base, Lever |
| 10 | Pin, Lever |
| 11 | Screw |
| 12 | Screw (2) |
