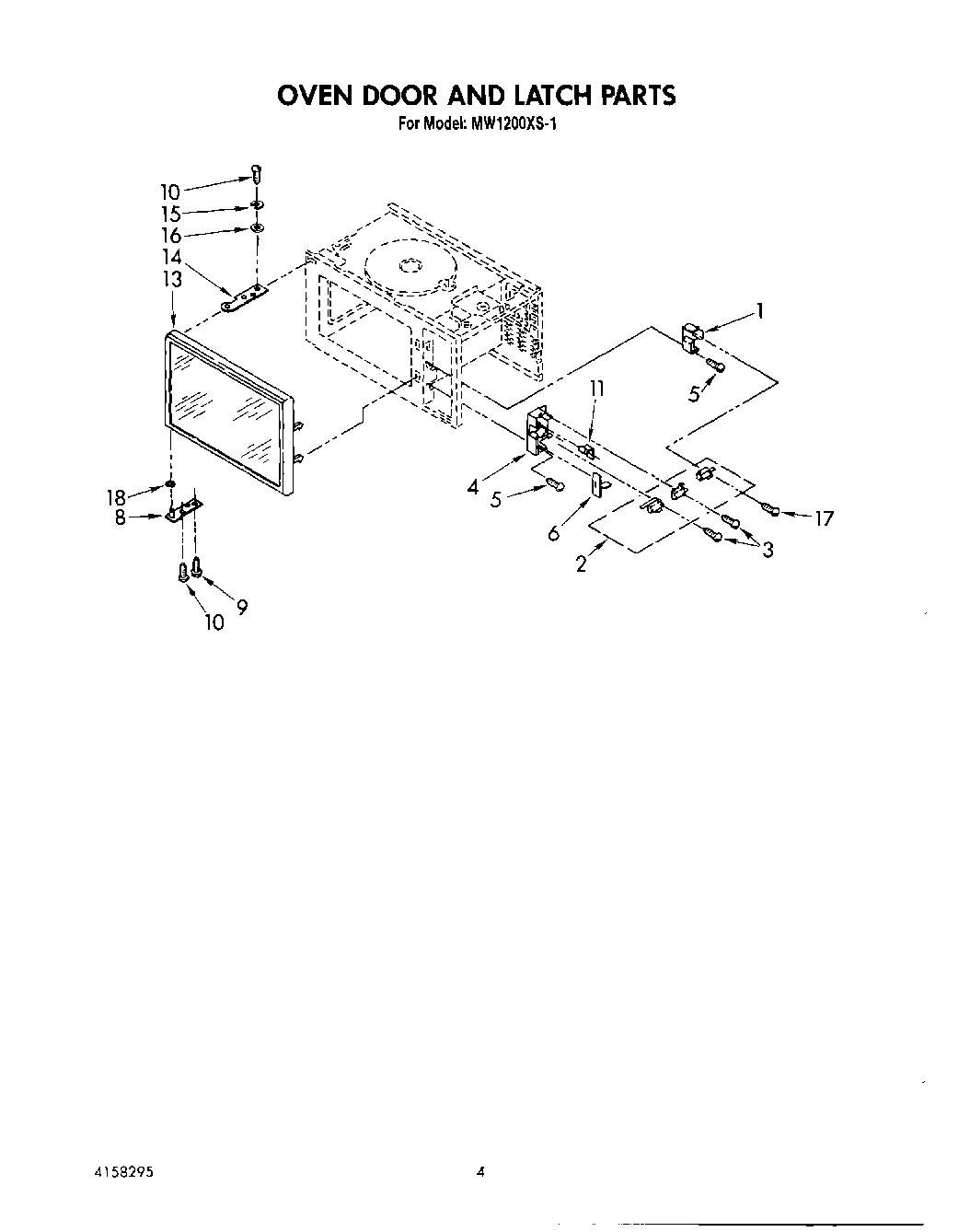

MW1200XS1 04 – OVEN DOOR AND LATCH

Written by

Products

Position	Product
1	Latch, Upper
2	Interlock, Switch Kit (All switches must be replaced if one fails.)
3	Screw, 3 x 20mm
4	Latch, Lower
5	Screw
6	Rod, Release
8	Hinge Plate, Lower
9	Screw
10	Screw, 5 x 16mm
11	Switch
13	Door, Complete
14	Hinge Plate, Upper
15	Washer
16	Plain Washer
17	Screw (2)
18	Hinge Washer
