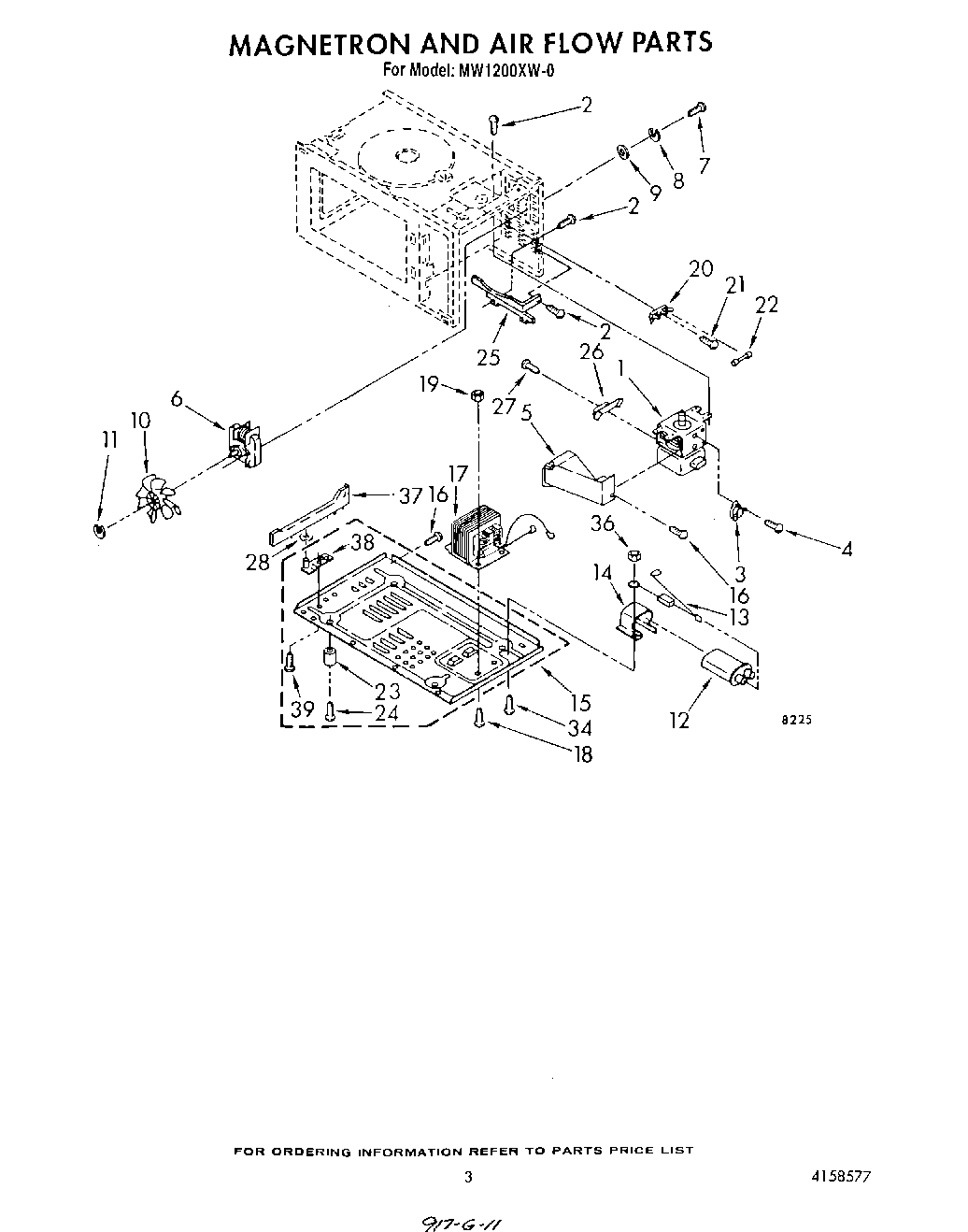

MW1200XW0 03 – MAGNETRON AND AIR FLOW

Products

PositionProduct
1Magnetron
2Screw, 4 x 8 mm
3Thermostat
4Screw (2)
5Duct, Air
6Motor, Fan
7Screw, 4 x 10 mm
8Washer
9Washer
10Propeller
11E-Ring
12Capacitor
13Diode Cable
14Bracket, Capacitor
15Plate, Base
16W11380570 Whirlpool Microwave Screw
17Transformer
18Screw, 5 x 16 mm (2)
19Nut (2)
20Holder, Fuse
21Screw (2)
22Fuse
23Leg (4)
24Screw
25Cover
26Bracket, Magnetron
27Screw (2)
28Washer
34Screw (2)
36Nut
37Barrier, Base
38Hinge Plate, Lower
39Screw (2)
