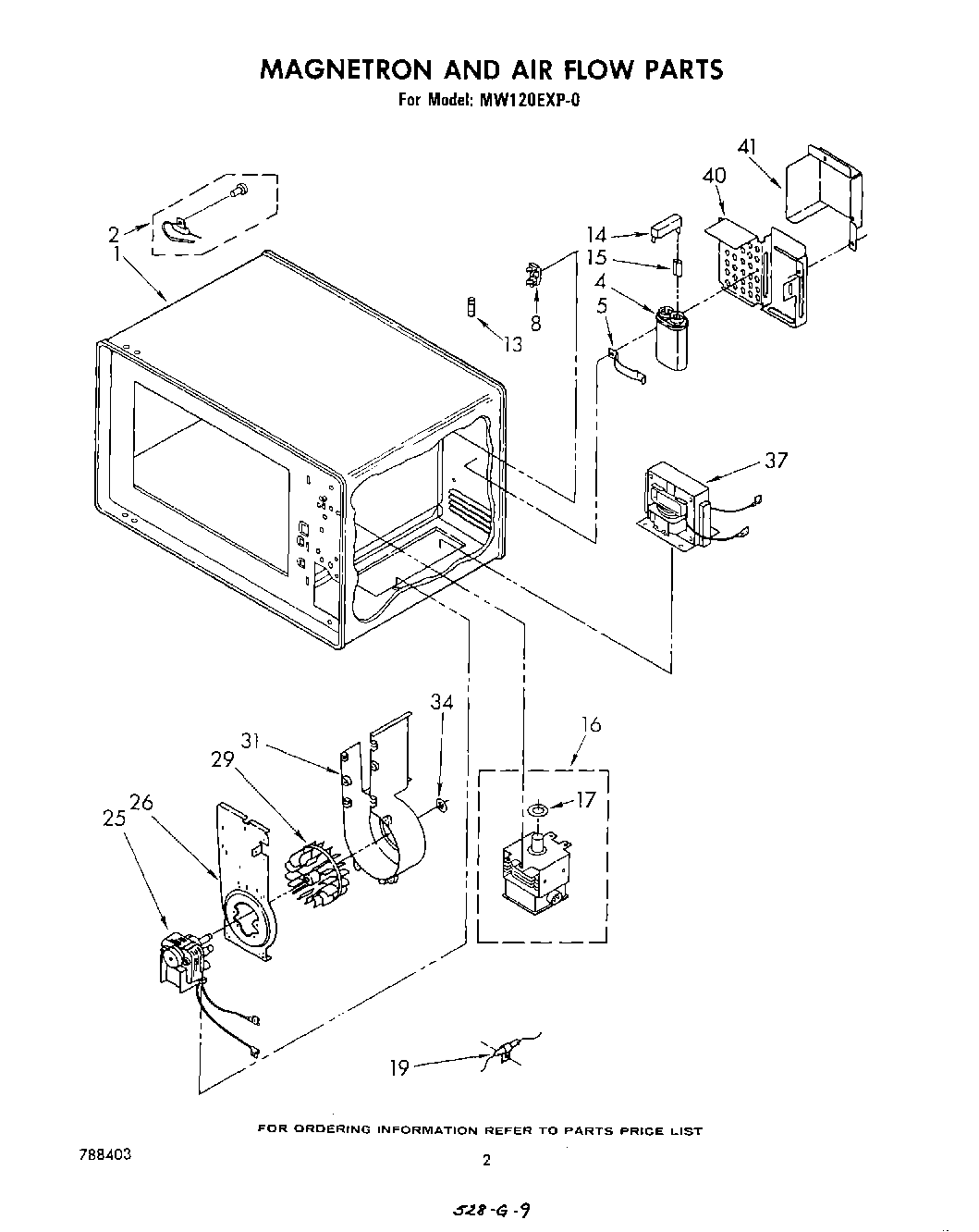

MW120EXP0 02 – MAGNETRON AND AIRFLOW
Written by
in
MW120EXP0 02 – MAGNETRON AND AIRFLOW
Products
Position
Product
1
Cavity Assembly (Not Serviceable)
2
Protector, Thermal
4
Capacitor
5
Bracket, Capacitor Mounting
8
Holder, Fuse
8
Nut, 4-40
8
Screw, 4-40 x 1/4 Phillips Pan Head
13
Fuse (12 Amp)
14
Diode
15
Terminal, Adapter
16
Nut, 5mm (4)
16
Magnetron (Includes Illus. No.17)
17
Gasket, Magnetron
19
Thermal Protector, Magnetron
25
Motor, Blower (Includes Illus. 34)
26
Bracket, Blower
29
Wheel, Blower
31
Screw, 8-18 x 1/2 (3)
31
Housing, Blower
34
E-Ring, Blower Wheel
37
S\cr\ew, 10-32 x 3/8 Hex Washer Head (4)
37
Transformer
40
Cover, Capacitor
41
Cover, Lead
41
WP90767 Whirlpool Screw
←
