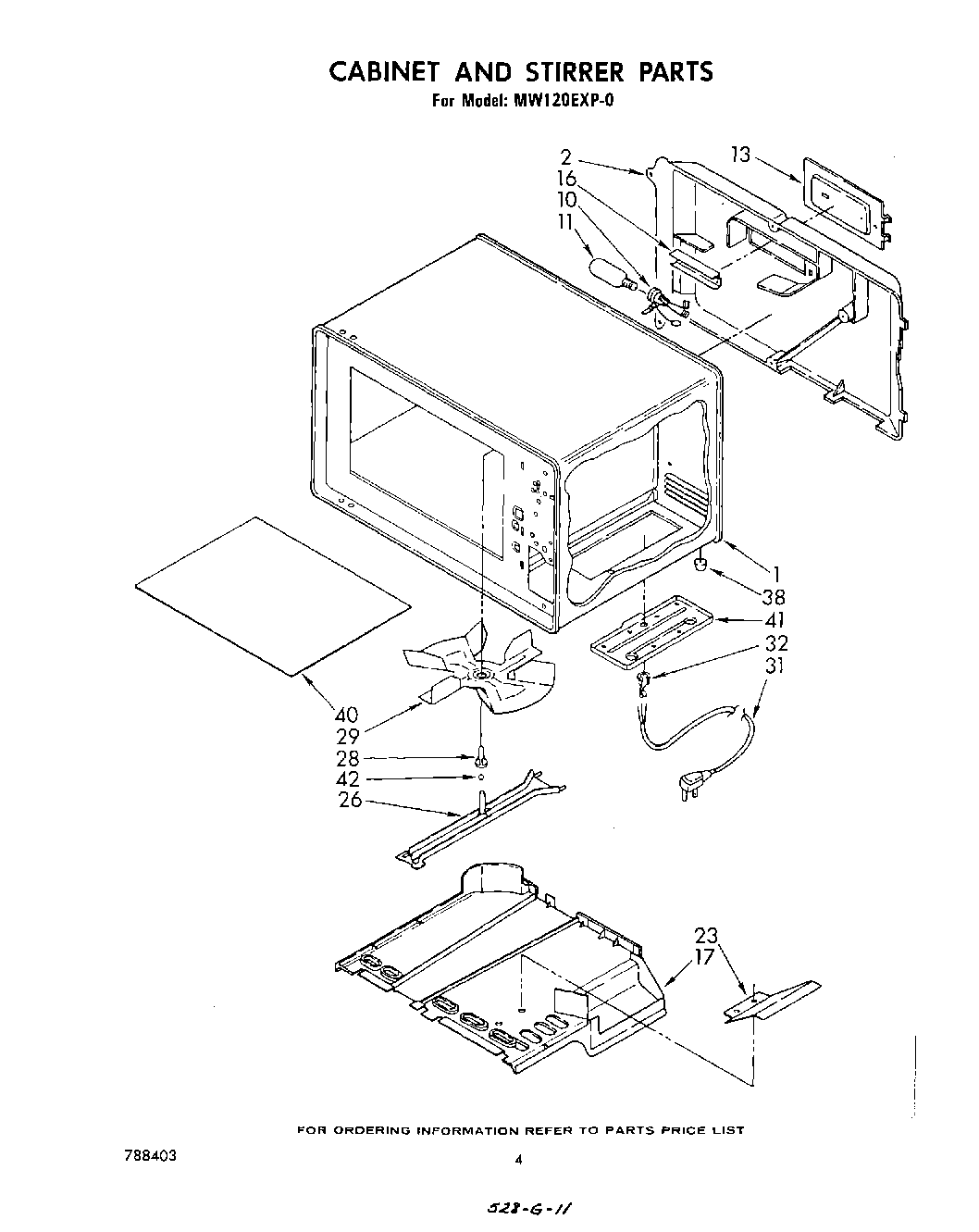

MW120EXP0 03 – CABINET AND STIRRER

MW120EXP0 03 – CABINET AND STIRRER

Written by

in

MW120EXP0 03 – CABINET AND STIRRER

Products

PositionProduct
1Cabinet (Not A Serviceable Part)
2Cover, Rear
10Socket, Lamp
11Lamp
13Cover, Component
16Reflector
16Screw
16WP488130 Whirlpool Air Conditioner Nut
17Cover, Stirrer
23Rivet
23Baffle, Right Air
26Rivet
26Support Bar, Stirrer
28Insert, Stirrer
29Blade, Stirrer
31Cord, Power
31Clamp
31WP486255 Whirlpool Air Conditioner Nut
31Screw, 8-32 x 3/8
31Washer, No.8
32Relief, Strain
38Foot (4)
38Rivet (4)
40Shelf (Order Sealant Part No. 482338 For Installation Of Shelf)
41Clip (4)
41Panel, Access (Includes Illus. 38)
41WP90767 Whirlpool Screw
42Bearing, Stirrer
