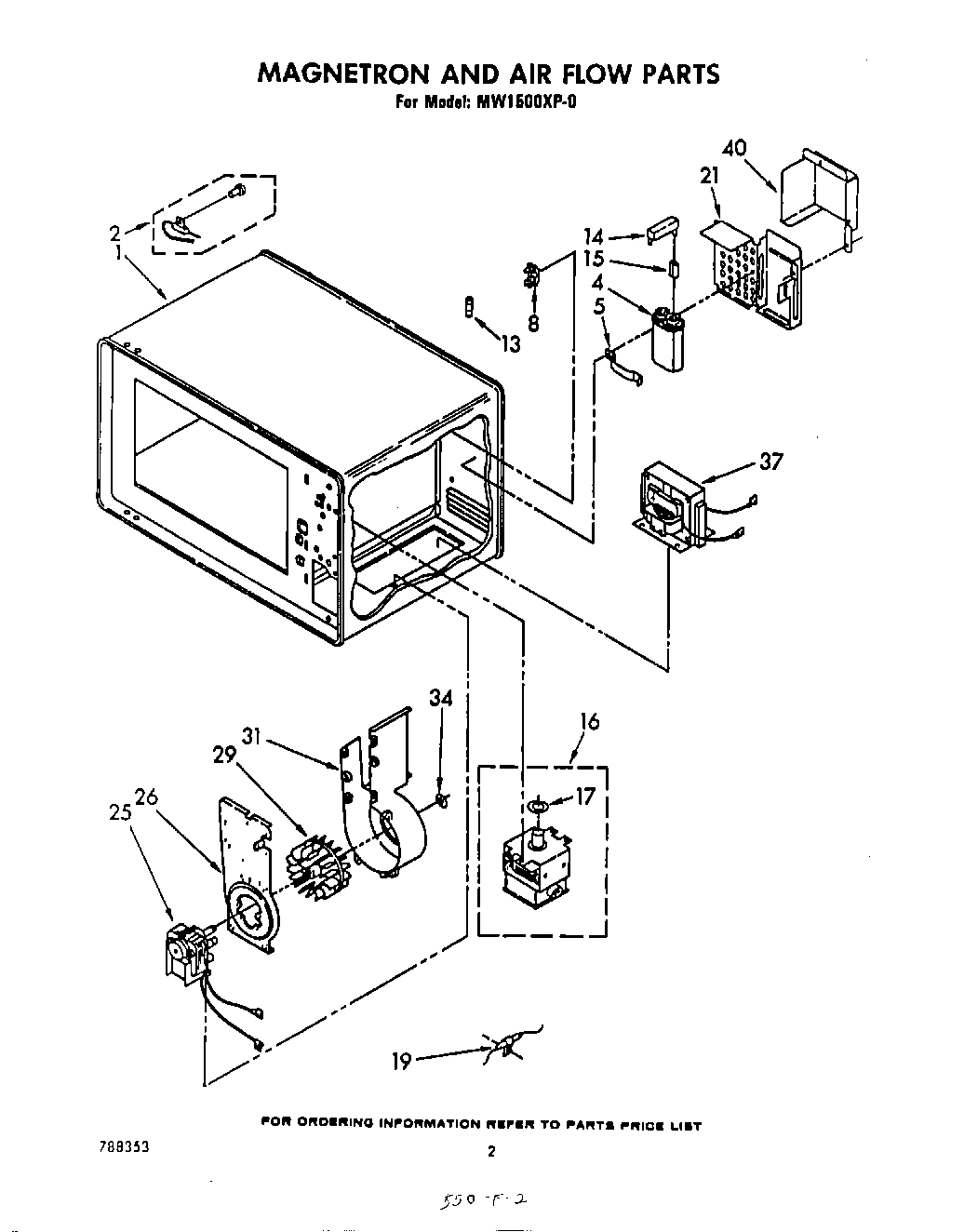

MW1500XP0 02 – MAGNETRON AND AIR FLOW

MW1500XP0 02 – MAGNETRON AND AIR FLOW

Written by

in

MW1500XP0 02 – MAGNETRON AND AIR FLOW

Products

PositionProduct
1Cavity Assembly (Not Serviceable)
2Protector, Thermal
4Capacitor
5Bracket, Capacitor Mounting
8Holder, Fuse
8Nut, 4-40
8Screw, 4-40 x 1/4 Phillips Pan Head
13Fuse (12 Amp)
14Diode
15Terminal, Adapter
16Nut, 5mm (4)
16Magnetron (Includes Illus. No.17)
17Gasket, Magnetron
19Thermal Protector, Magnetron
21Cover, Capacitor
25Motor, Blower (Includes Illus. 34)
26Bracket, Blower
29Wheel, Blower
31Screw, 8-18 x 1/2 (3)
31Housing, Blower
34E-Ring, Blower Wheel
37S\cr\ew, 10-32 x 3/8 Hex Washer Head (4)
37Transformer
40Cover, Lead
40WP90767 Whirlpool Screw
