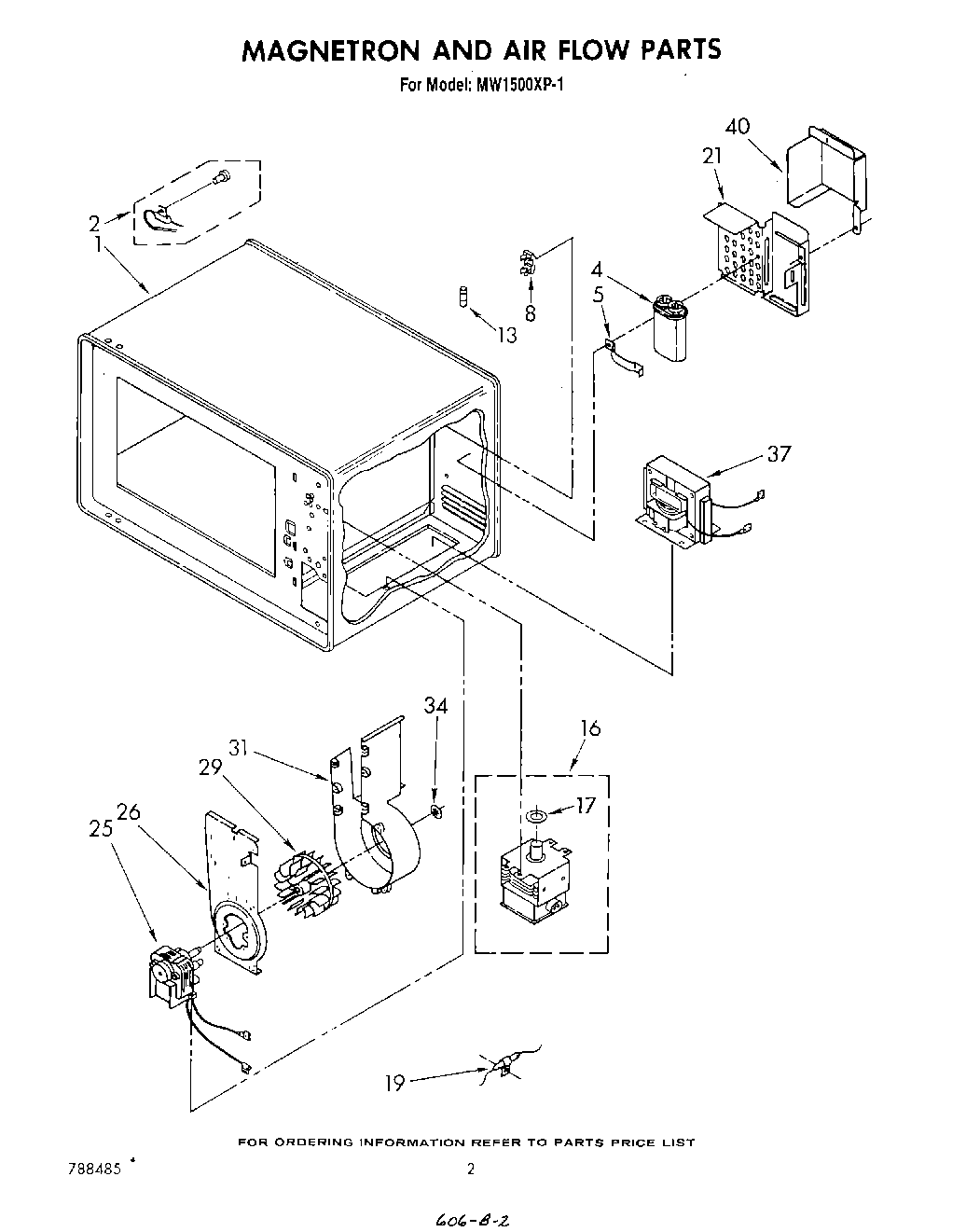

MW1500XP1 02 – MAGNETRON AND AIR FLOW

Products

Position	Product
1	Cavity Assembly (Not Serviceable)
2	Protector, Thermal
4	Capacitor / Diode
5	Bracket, Capacitor Mounting
8	Holder, Fuse
8	Nut, 4-40
8	Screw, 4-40 x 1/4 Phillips Pan Head
13	Fuse (12 Amp)
16	Nut, 5mm (4)
16	Magnetron (Includes Illus. No.17)
17	Gasket, Magnetron
19	Thermal Protector, Magnetron
21	Cover, Capacitor
25	Motor, Blower (Includes Illus. 34)
26	Bracket, Blower
29	Wheel, Blower
31	Screw, 8-18 x 1/2 (3)
31	Housing, Blower
34	E-Ring, Blower Wheel
37	Transformer
37	S\cr\ew, 10-32 x 3/8 Hex Washer Head (4)
40	Cover, Lead
40	WP90767 Whirlpool Screw
