MW1500XS0 03 – MAGNETRON AND AIR FLOW

MW1500XS0 03 – MAGNETRON AND AIR FLOW

Written by

in

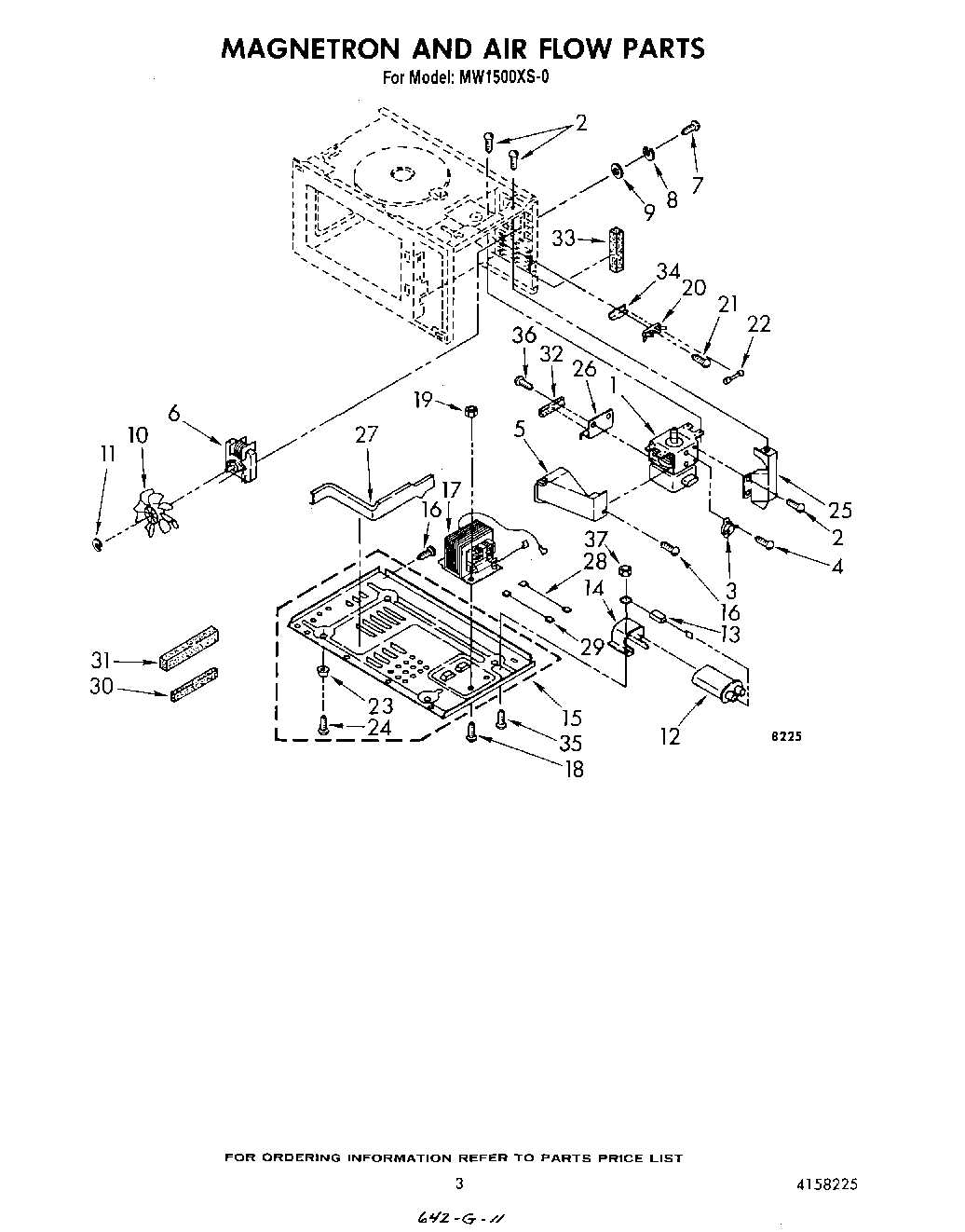

MW1500XS0 03 – MAGNETRON AND AIR FLOW

Products

Position	Product
1	Magnetron
2	Screw, 4 x 8 mm
3	Thermal Protector
4	Screw (2)
5	Duct, Air
6	Motor, Fan
7	Screw, 4 x 10 mm
8	Washer
9	Washer
10	Fan
11	E-Ring
12	Capacitor
13	Diode
14	Bracket, Capacitor
15	Plate, Base (Includes Illus. No. 23)
16	W11380570 Whirlpool Microwave Screw
17	Transformer
18	Screw, 5 x 12mm
19	Nut (2)
20	Holder, Fuse
21	Screw (2)
22	Fuse
23	Foot (4)
24	Screw
25	Cover
26	Bracket, Magnetron
27	Barrier, Base
28	Lead, High Voltage
29	Lead, High Voltage
30	Seal, Foam
31	Seal, Foam
32	Seal, Foam
33	Seal, Foam
34	Plate, Discharge
35	Screw, 4 x 8 mm
36	Screw (2)
37	Nut
