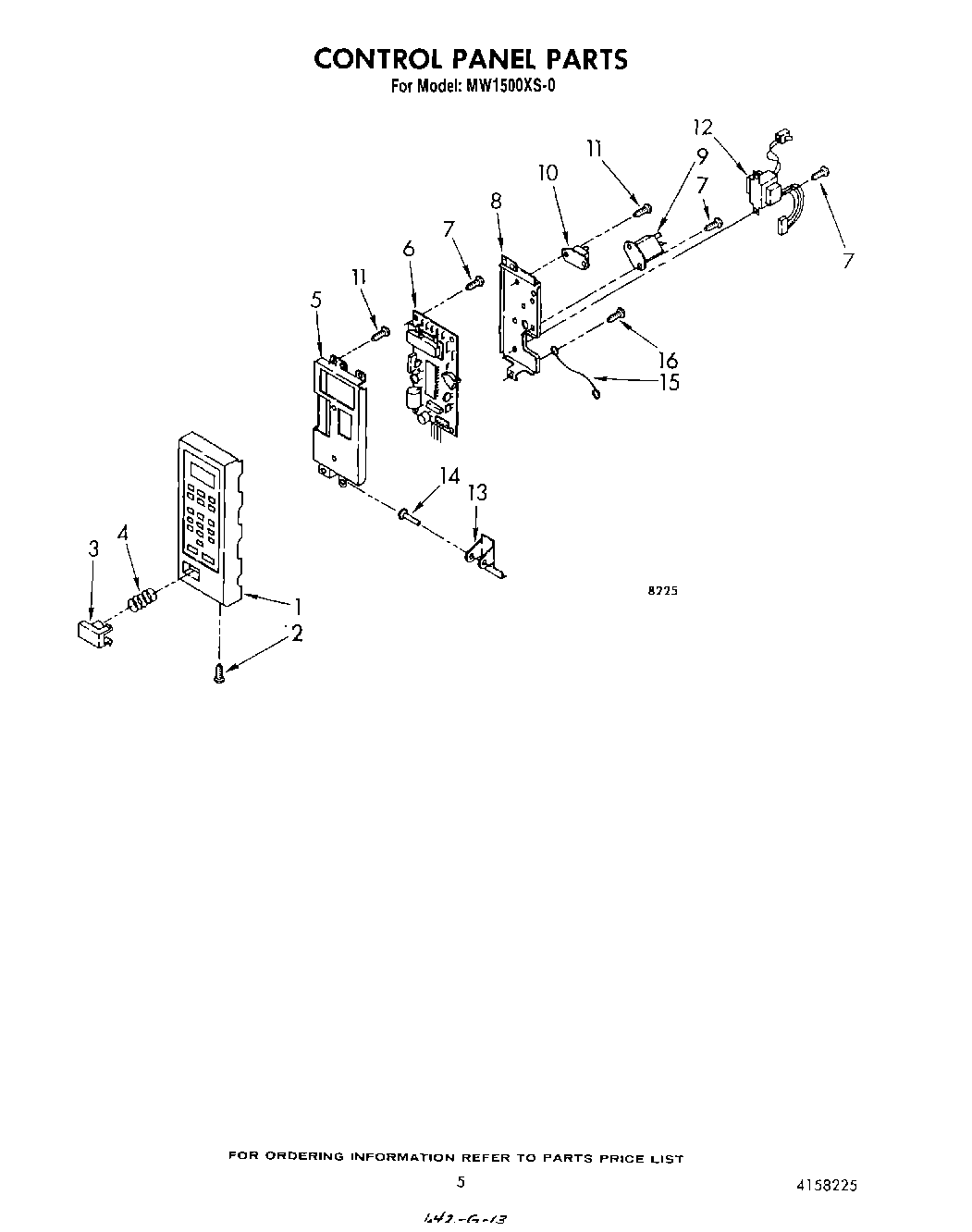

MW1500XS0 05 – CONTROL PANEL

Products

Position	Product
1	Frame, Control Panel
2	Screw
3	Button, Push To Start
4	Spring, Button
5	Bracket, Control
6	Microcomputer
7	Screw (2)
8	Heat Sink
9	Relay
10	Triac
11	Screw (2)
12	Transformer
13	Lever, Release
14	Pin, Lever
15	Harness, Wiring (Main)
16	Plain Washer
