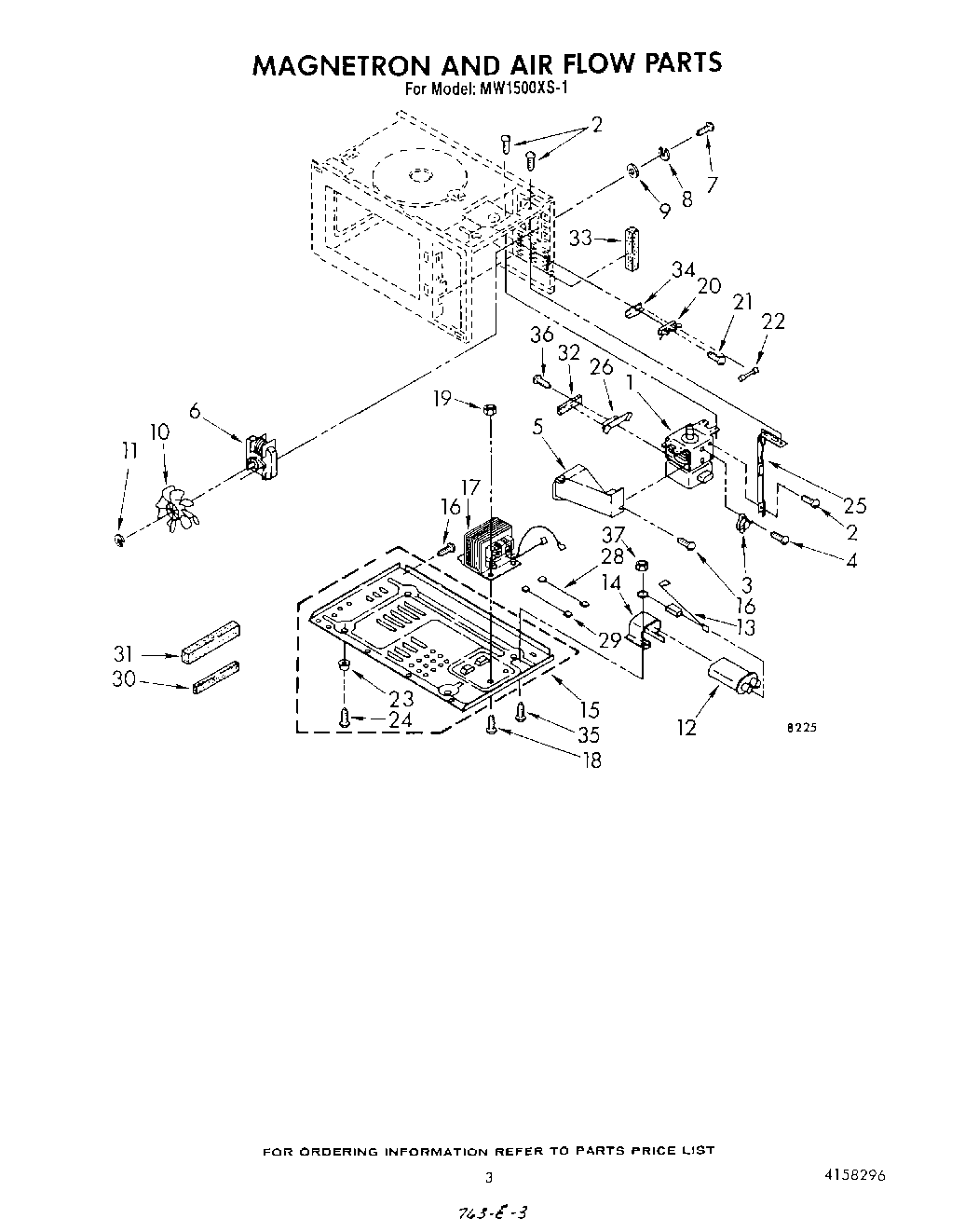

MW1500XS1 03 – MAGNETRON AND AIRFLOW

Products

PositionProduct
1Magnetron
2Screw, 4 x 8 mm
3Thermal Protector
4Screw (2)
5Duct, Air
6Motor, Fan
7Screw, 4 x 10 mm
8Washer
9Washer
10Fan
11E-Ring
12Capacitor (Alt.)
12Capacitor (Alt.)
12Capacitor
13Diode Cable
14Bracket, Capacitor
15Plate, Base (Includes Illus. No. 23)
16W11380570 Whirlpool Microwave Screw
17Transformer
18Screw, 5 x 12mm
19Nut (2)
20Holder, Fuse
21Screw (2)
22Fuse
23Foot (4)
24Screw
25Cover
26Bracket, Magnetron
28Lead, High Voltage
29Lead, High Voltage
30Seal, Foam
31Seal, Foam
32Seal, Foam
33Seal, Foam
34Plate, Discharge
35Screw, 4 x 8 mm
36Screw (2)
37Nut
