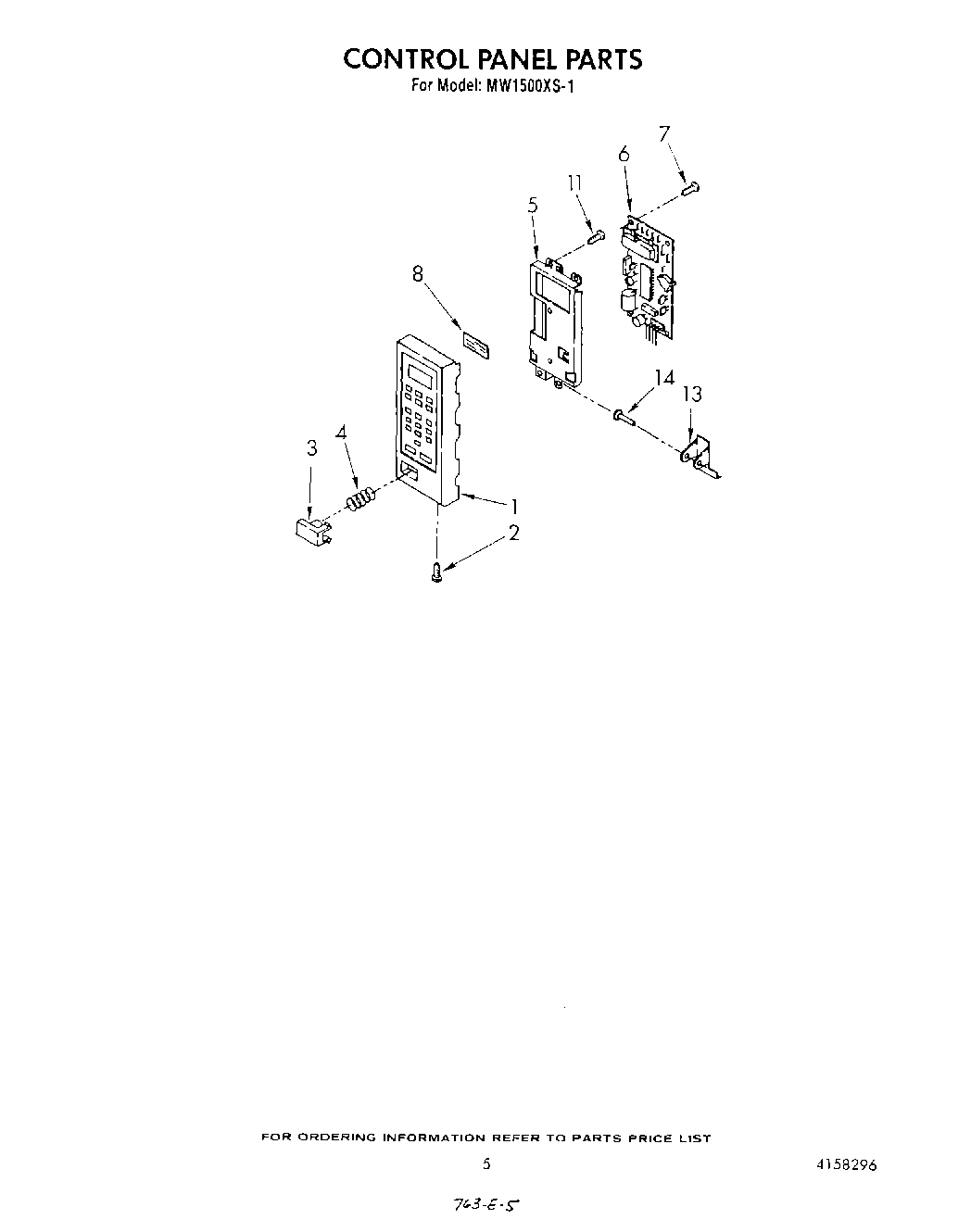

MW1500XS1 05 – CONTROL PANEL
Products
| Position | Product |
|---|---|
| 1 | Frame, Control Panel |
| 2 | Screw |
| 3 | Button, Push To Start |
| 4 | Spring, Button |
| 5 | Bracket, Control |
| 6 | Microcomputer |
| 7 | Screw (2) |
| 8 | Window |
| 11 | Screw (2) |
| 13 | Lever, Release |
| 14 | Pin, Lever |
