MW1500XW0 02 – CABINET

MW1500XW0 02 – CABINET

Written by

in

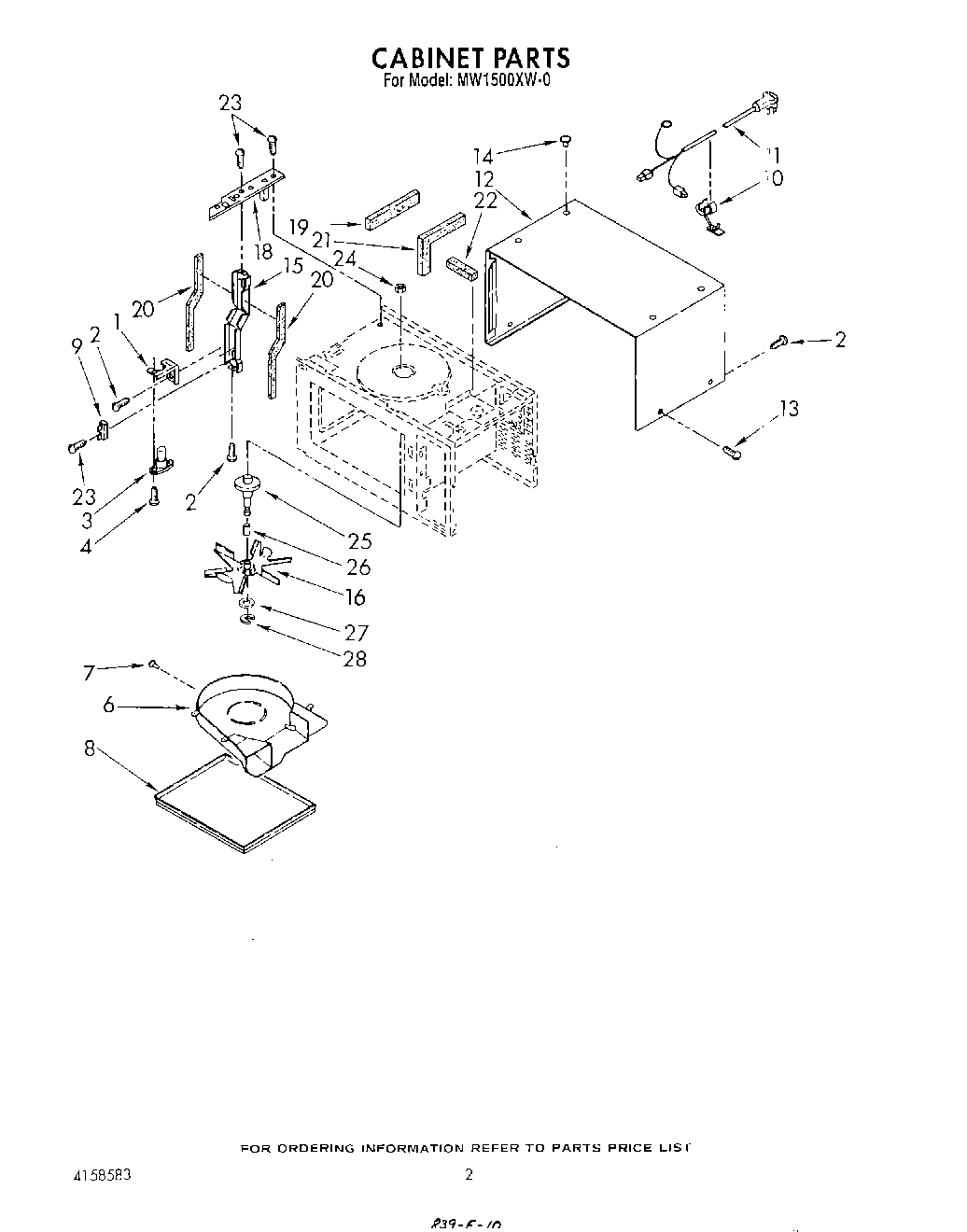

MW1500XW0 02 – CABINET

Products

Position	Product
1	Bracket, Light
2	W11380570 Whirlpool Microwave Screw
3	Base Less Light
4	Screw (2)
6	Cover, Stirrer
7	Rivet (3)
8	Shelf, Cavity
9	Thermal Fuse
10	Strain Relief
11	Cord, Power
12	Wrapper, Cabinet
13	Screw
14	Plug, Hole
15	Air Guide
16	Blade, Stirrer
18	Bracket
19	Seal, Foam
20	Seal, Foam
21	Seal, Foam
22	Seal, Foam
23	Screw, 4 x 8 mm
24	Nut (2)
25	Mounting Axle
26	Bushing
27	Sliding Washer
28	Retainer
