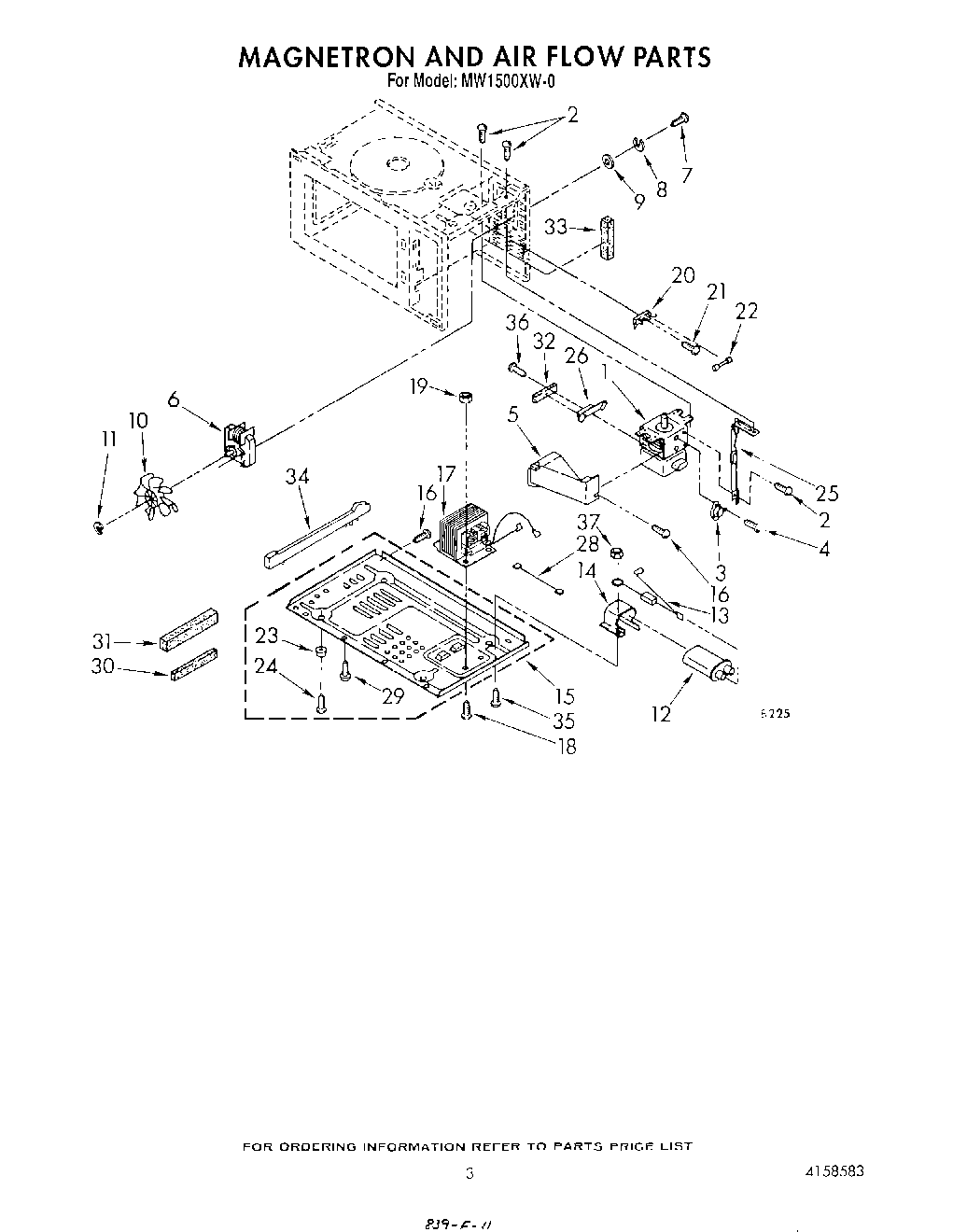

MW1500XW0 03 – MAGNETRON AND AIR FLOW

Products

PositionProduct
1Magnetron
2Thermostat
3Thermal Protector
4Screw (2)
5Duct, Air
6Motor, Fan
7Screw, 4 x 10 mm
8Washer
9Washer
10Propeller
11E-Ring
12Capacitor
13Diode Cable
14Bracket, Capacitor
15Plate, Base
17Transformer
18Screw, 5 x 12mm
19Nut (2)
20Thermal Fuse
21Screw (2)
22Fuse
23Leg (4)
24Screw
25Cover
26Bracket, Magnetron
28Lead, High Voltage
29W11380570 Whirlpool Microwave Screw
30Seal, Foam
31Seal, Foam
32Seal, Foam
33Seal, Foam
34Barrier, Base
35Screw, 4 x 8 mm
36Screw (2)
37Nut
