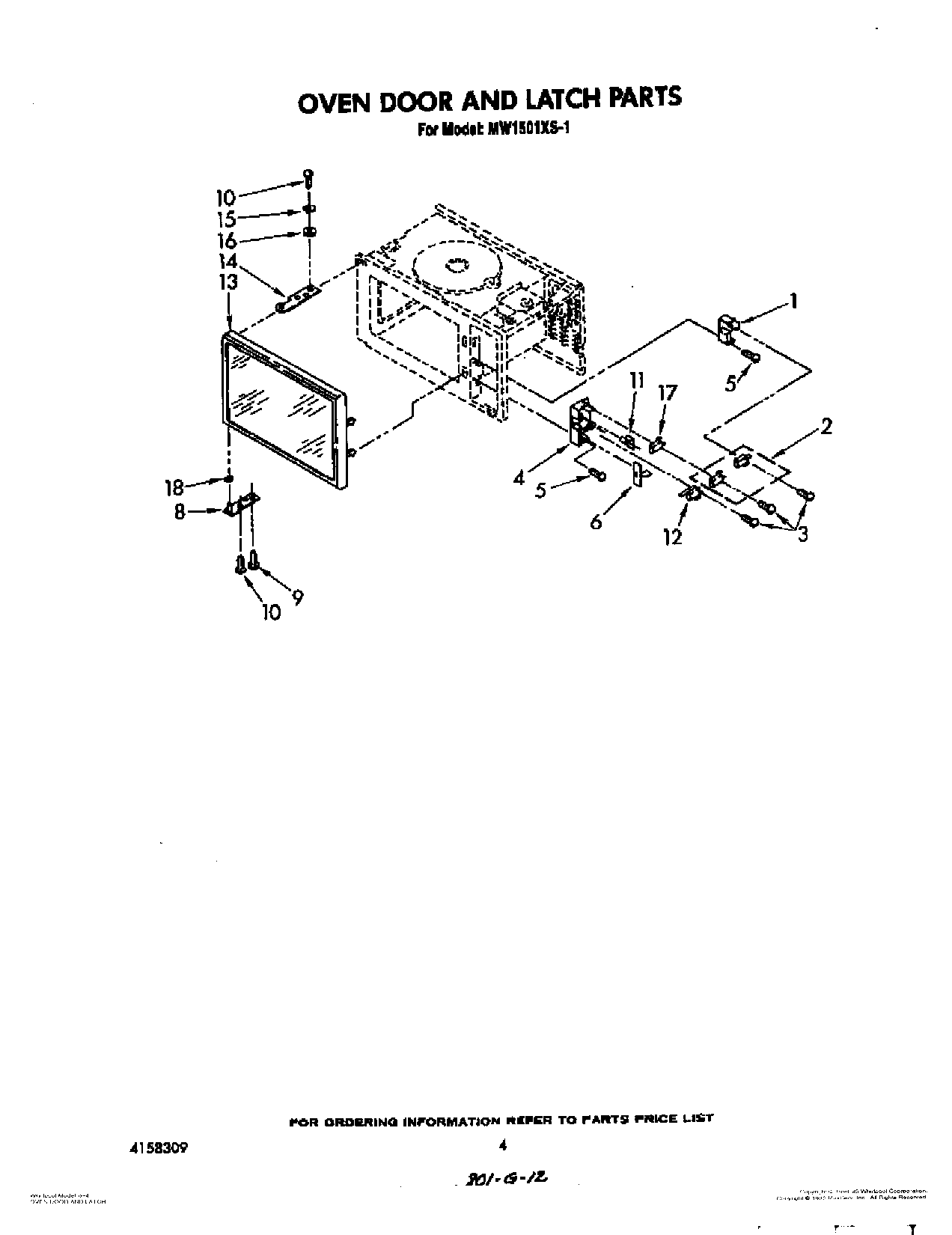

MW1501XS1 04 – OVEN DOOR AND LATCH

Products

PositionProduct
1Latch, Upper
2Interlock, Switch Kit (Both switches must be replaced if one fails.)
3Screw, 3 x 20mm
4Latch, Lower
5Screw
6Rod, Release
8Hinge Plate, Lower
9Screw
10Screw, 5 x 16mm
11Switch
12Swith, Secondary
13Door, Complete
14Hinge Plate, Upper
15Washer
16Plain Washer
174392027 Whirlpool Microwave Primary Switch
18Hinge Washer
