MW1501XW0 02 – CABINET

MW1501XW0 02 – CABINET

Written by

in

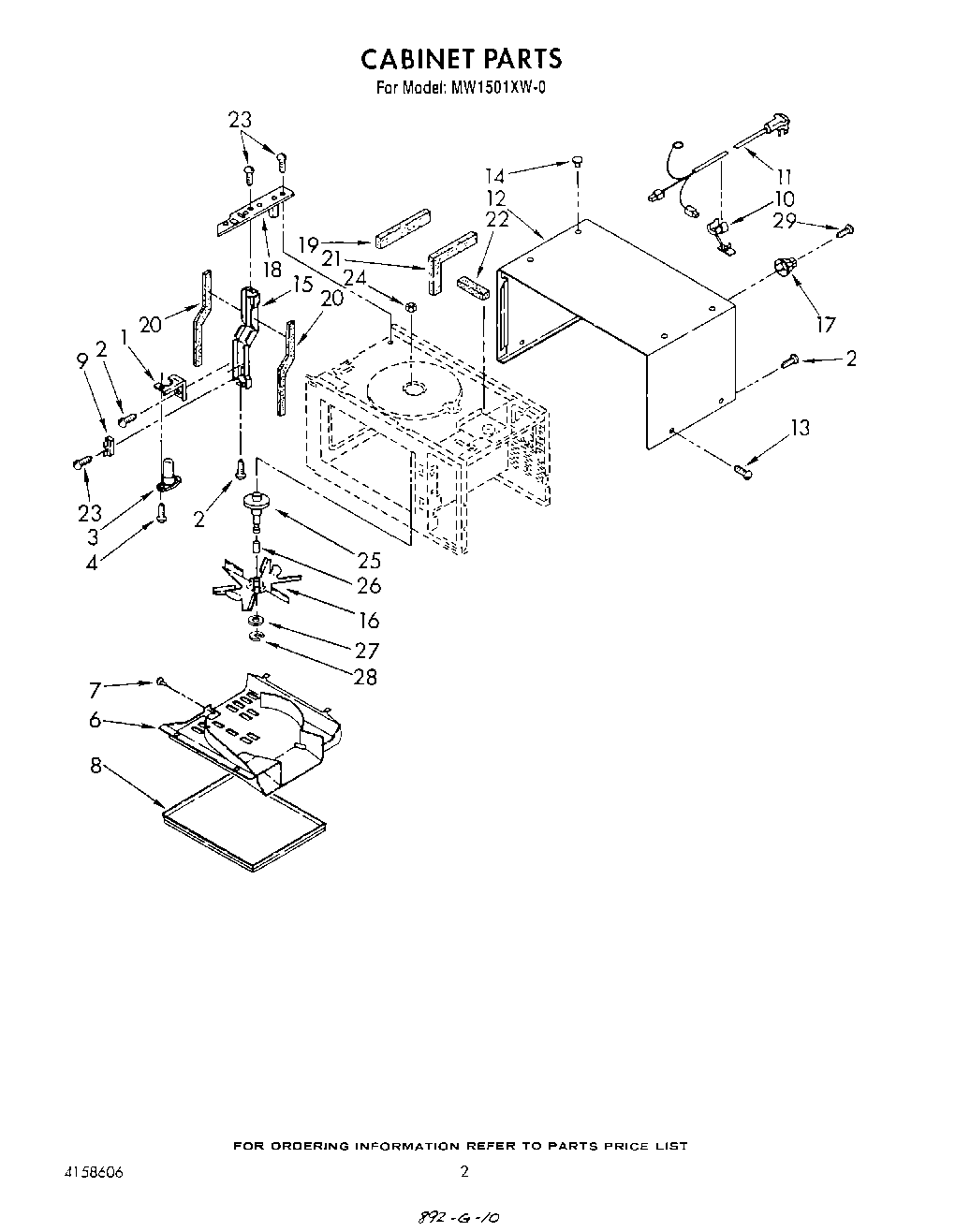

MW1501XW0 02 – CABINET

Products

PositionProduct
1Bracket, Light
2W11380570 Whirlpool Microwave Screw
3Base Less Light
6Cover, Stirrer
7Rivet (3)
8Shelf, Cavity
9Thermal Fuse
10Strain Relief
11Cord, Power
12Wrapper, Cabinet
14Plug, Hole
15Air Guide
16Blade, Stirrer
17Spacer
18Bracket
19Seal, Foam
20Seal, Foam
21Seal, Foam
22Seal, Foam
23Screw (2)
24Nut (2)
25Mounting Axle
26Bushing
27Sliding Washer
28Retainer
29Special Screw (2)
