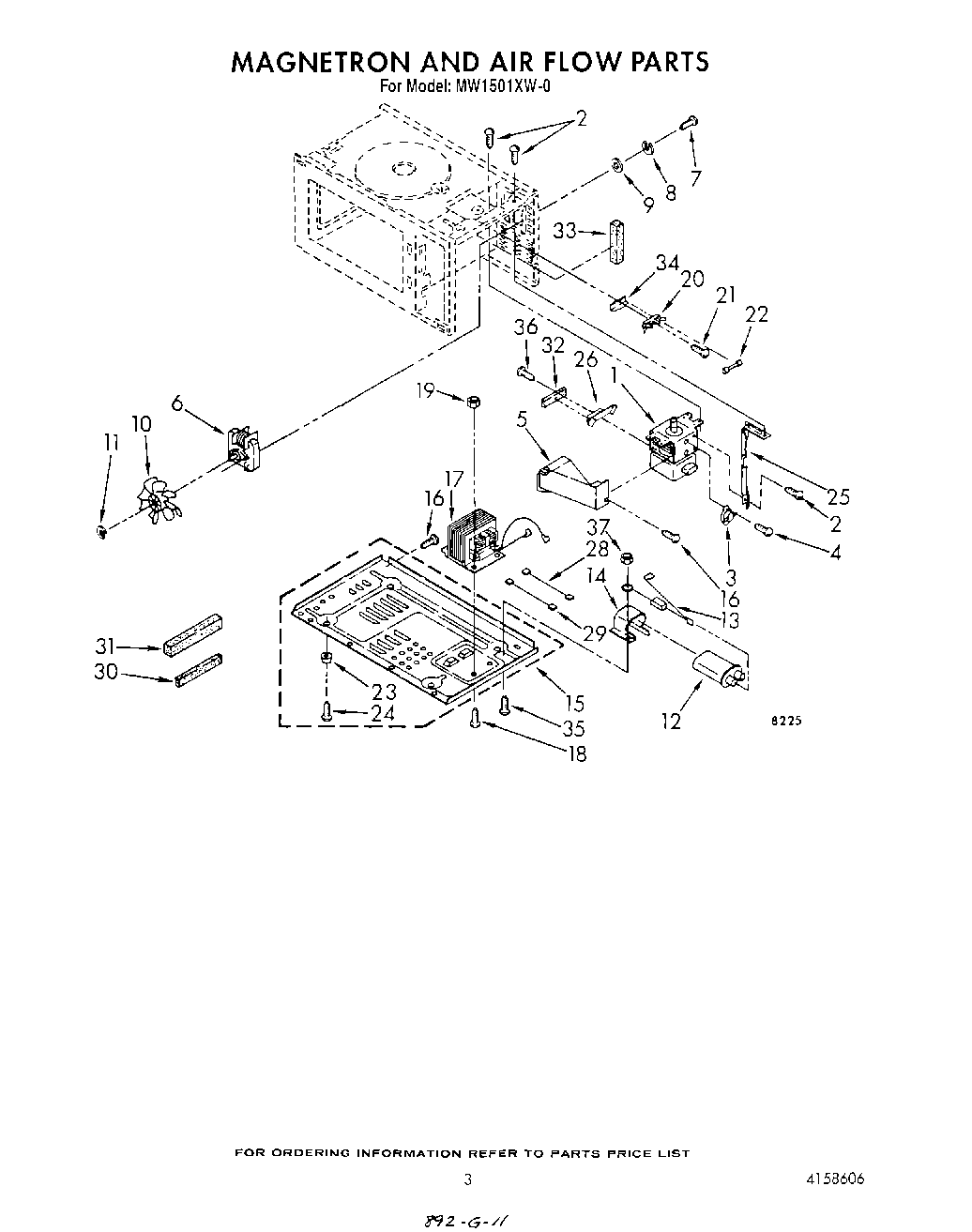

MW1501XW0 03 – MAGNETRON AND AIR FLOW

Products

Position	Product
1	Magnetron
2	Screw, 4 x 8 mm
3	Thermostat
4	Screw (2)
5	Duct, Air
6	Motor, Fan
7	Screw, 4 x 10 mm
8	Washer
9	Washer
10	Propeller
11	E-Ring
12	Capacitor
13	Diode Cable
14	Bracket, Capacitor
15	Plate, Base
16	W11380570 Whirlpool Microwave Screw
17	Transformer
18	Screw, 5 x 12mm
19	Nut (2)
20	Thermal Fuse
21	Screw (2)
22	Fuse
23	Leg (4)
24	Screw
25	Cover
26	Bracket, Magnetron
28	Lead, High Voltage
29	Lead, High Voltage
30	Seal, Foam
31	Seal, Foam
32	Seal, Foam
33	Seal, Foam
34	Plate, Discharge
35	Screw, 4 x 8 mm
36	Screw (2)
37	Nut
