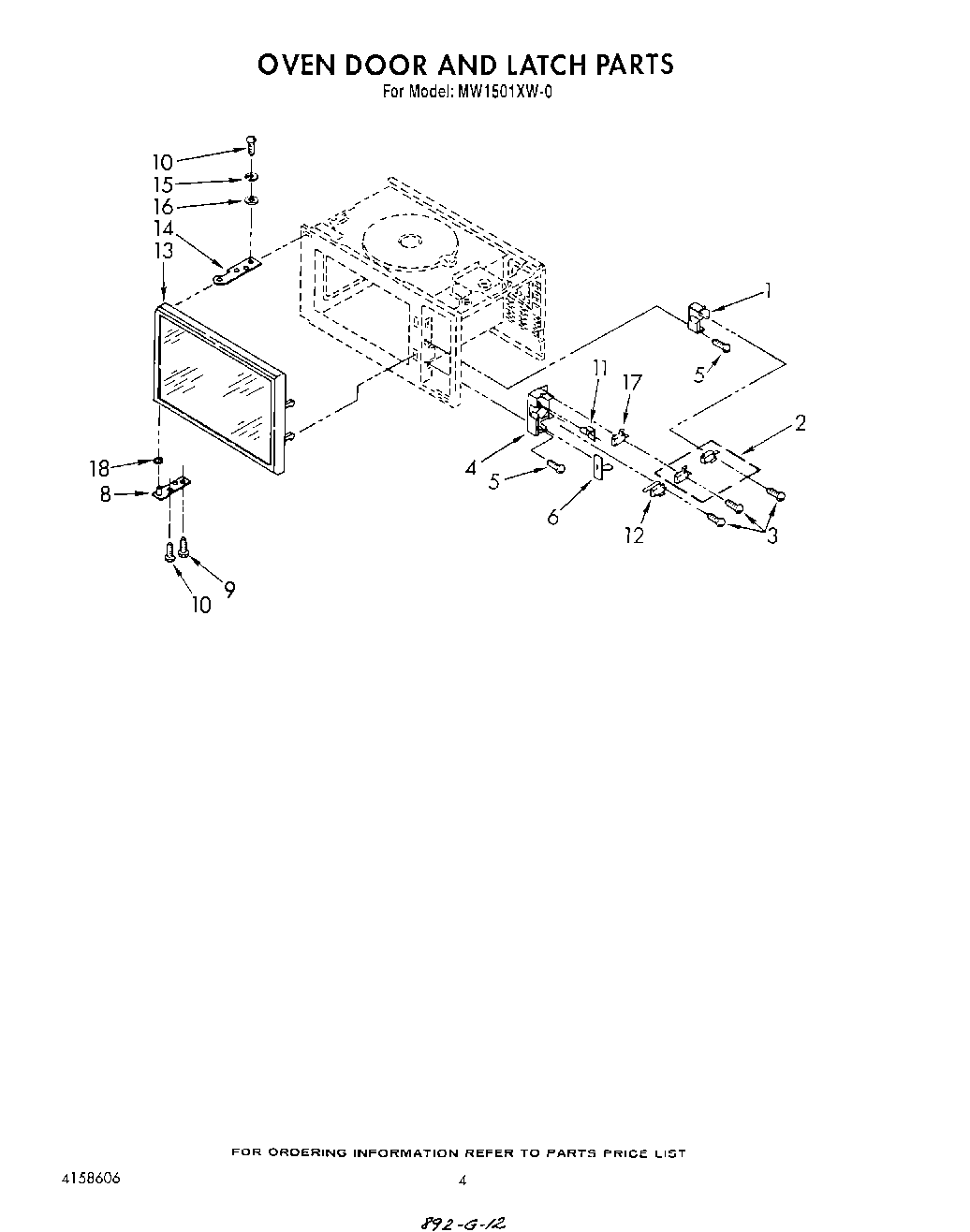

MW1501XW0 04 – OVEN DOOR AND LATCHadmin2025-04-26T08:45:06+00:00MW1501XW0 04 – OVEN DOOR AND LATCH
Products
| Position | Product |
|---|
| 1 | Latch, Upper |
| 2 | Interlock, Switch Kit (Both switches must be replaced if one fails.) |
| 3 | Screw, 3 x 20mm |
| 4 | Latch, Lower |
| 5 | Screw (2) |
| 6 | Rod, Release |
| 8 | Hinge Plate, Lower |
| 9 | Screw |
| 10 | Screw, 5 x 16mm |
| 11 | Switch |
| 12 | Swith, Secondary |
| 13 | Door, Complete |
| 14 | Hinge Plate, Upper |
| 15 | Washer |
| 16 | Washer |
| 17 | 4392027 Whirlpool Microwave Primary Switch |
| 18 | Hinge Washer |
