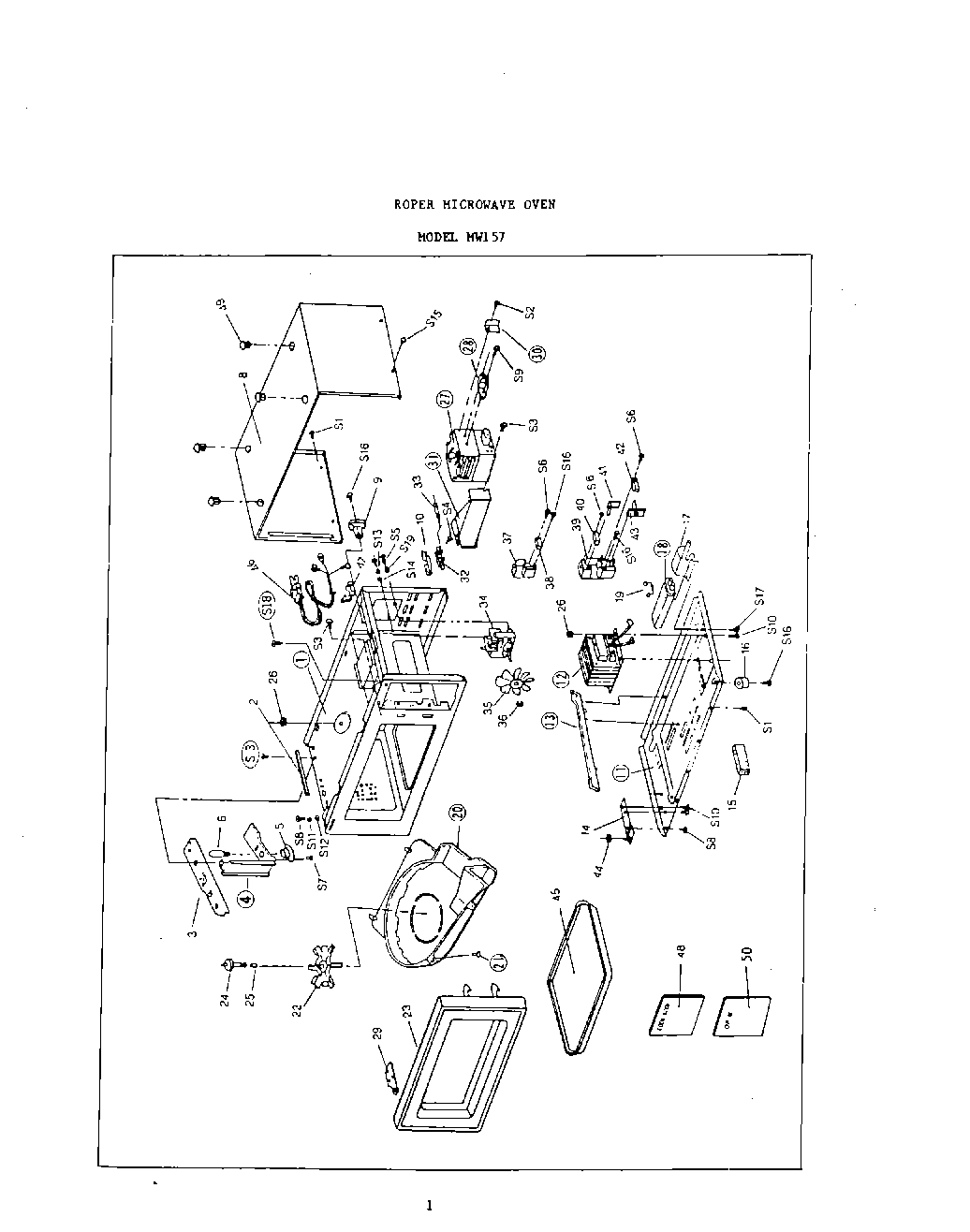

MW157 02 – SECTION

Products

Position	Product
1	Cavity Assembly (Not Serviceable)
2	CUSHION-B
3	BRACKET-M
4	LAMP BRACKET
5	LAMP HOLDER
6	xOVEN LAMP
8	WRAPPER
9	SPACER
10	DISCHARGE PLATE
11	BASE PLATE
12	xH.V. TRANSFORMER
13	BASE BARRIER-2
14	HINGE-L ASM.
15	CUSHION-K
16	LEG
17	CAPAITOR BRACKET
18	xH.V. CAPACITOR
19	xH.V. DIODE
20	S/FAN COVER
21	RIVET ASM.
22	S/FAN ASM.
23	DOOR ASM.
24	S/FAN SHAFT
25	BUSHING, SHAFT
26	HEXAGON NUT
27	xMAGNETRON
28	xTHERMOSTAT
29	OVEN HINGE-U
30	AIR GUIDE-M.G.T.
31	AIR DUCT
32	FUSE HOLDER
33	xFUSE
34	xBlower Motor
35	PROPELLER
36	E-RING
37	LATCH BOARD-U
38	xPRIMARY MICRO S/W
39	LATCH BOARD-L
40	xMONITOR MICRO S/W
41	S/W LEVER
42	xSECONDARY MICRO S/W
43	RELEASE ROD
44	HINGE WASHER
45	GLASS TRAY
46	POWER CORD
47	CORD BUSHING
48	COOK BOOK
49	TIP-M
50	OPERATING MANUAL
