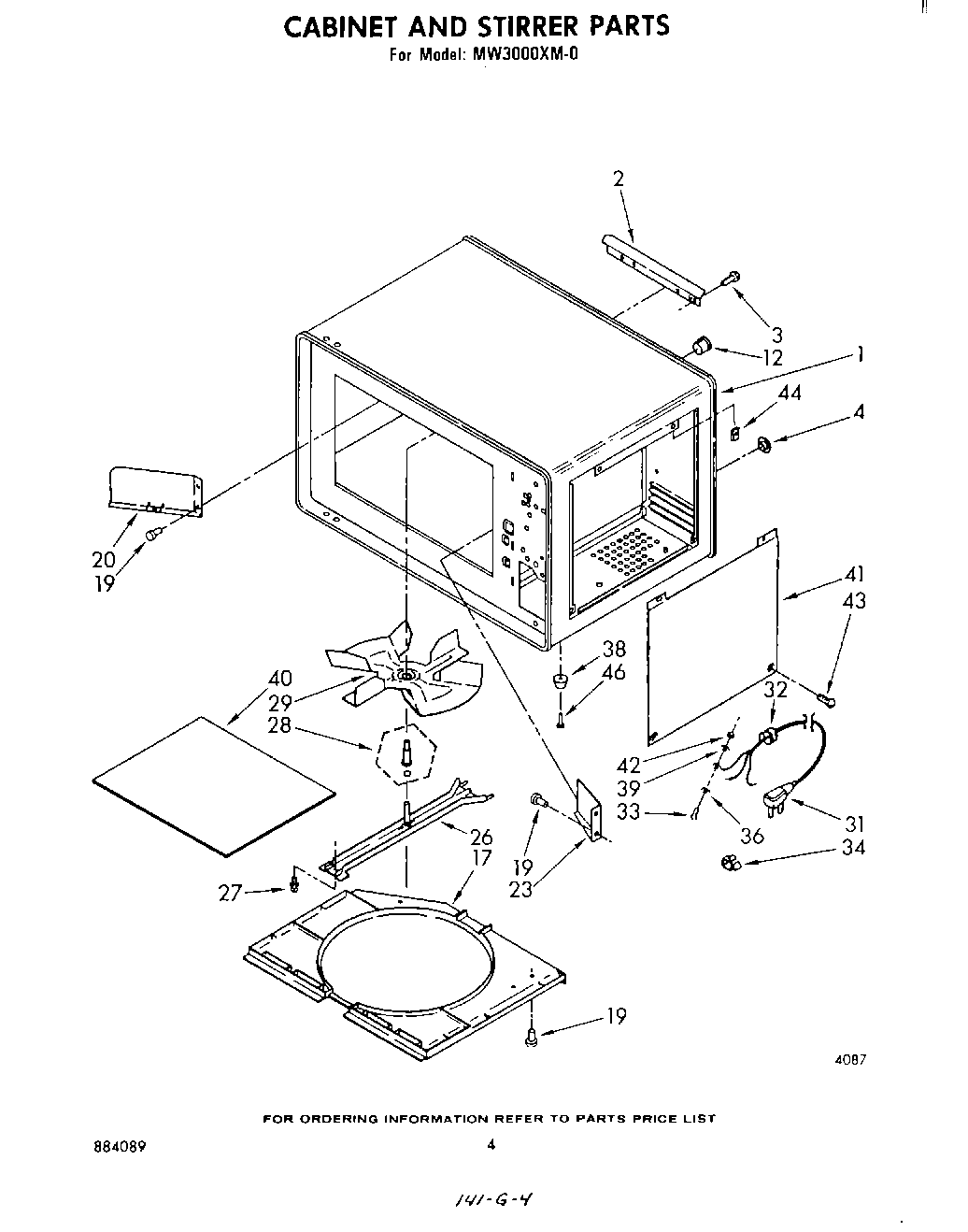

MW3000XM0 03 – CABINET AND STIRRERadmin2025-04-26T08:44:06+00:00MW3000XM0 03 – CABINET AND STIRRER
Products
| Position | Product |
|---|
| 1 | Cabinet (Not A Serviceable Part) |
| 2 | Wire Cover |
| 3 | WP90767 Whirlpool Screw |
| 4 | Plug, Hole |
| 12 | Plug Button |
| 17 | Cover, Stirrer |
| 19 | Rivet |
| 20 | Baffle, Left Air |
| 23 | Baffle, Right Air |
| 26 | Support Bar, Stirrer |
| 27 | Rivet |
| 28 | Insert, Stirrer (Includes Bearing) |
| 29 | Blade, Stirrer |
| 31 | Cord, Power |
| 32 | Relief, Strain |
| 33 | Screw, 8-32 x 3/8 |
| 34 | Clip, Wire |
| 36 | Washer, No.8 |
| 38 | Foot (4) |
| 39 | Lockwasher, No.8 |
| 40 | Shelf (Order Sealant Part No. 482338 For Installation Of Shelf) |
| 41 | Panel, Access |
| 42 | WP486255 Whirlpool Air Conditioner Nut |
| 43 | WP488729 Whirlpool Refrigerator Door Screw |
| 44 | Clip, Access Panel (2) |
| 46 | Rivet |
