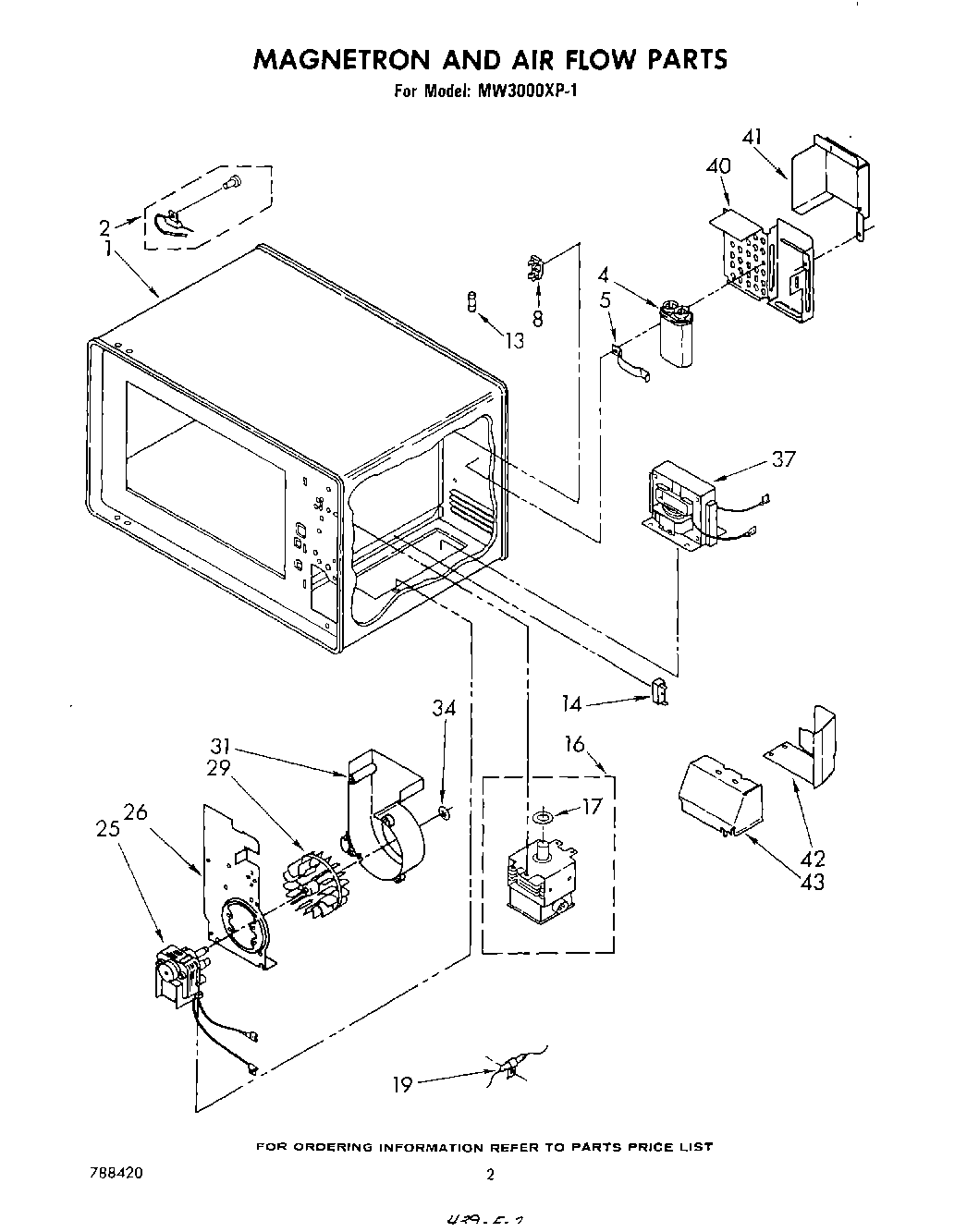

MW3000XP1 02 – MAGNETRON AND AIRFLOW

Products

Position	Product
1	Cavity Assembly (Not Serviceable)
2	Protector, Thermal
4	Capacitor
5	Bracket, Capacitor Mounting
8	Nut, 4-40
8	Screw, 4-40 x 1/4 Phillips Pan Head
8	Holder, Fuse
13	Fuse (15 Amp)
14	Diode
16	Nut, 5mm (4)
16	Magnetron (Includes Illus. No.17)
17	Gasket, Magnetron
19	Thermal Protector, Magnetron
25	WP250830 Whirlpool Refrigerator Screw
25	Diode
25	Motor, Blower (Includes Illus. 34)
25	Washer No.8 (4)
26	Bracket, Blower
29	Wheel, Blower (Includes Illus. NO. 34)
31	Screw, 8-18 x 1/2 (3)
31	Housing, Blower (Includes Illus. 34)
34	E-Ring, Blower Wheel
37	S\cr\ew, 10-32 x 3/8 Hex Washer Head (4)
37	Transformer
40	Cover, Lead
41	Cover, Capacitor
42	Air Duct, Front
43	Air Duct, Rear
43	WP90767 Whirlpool Screw
