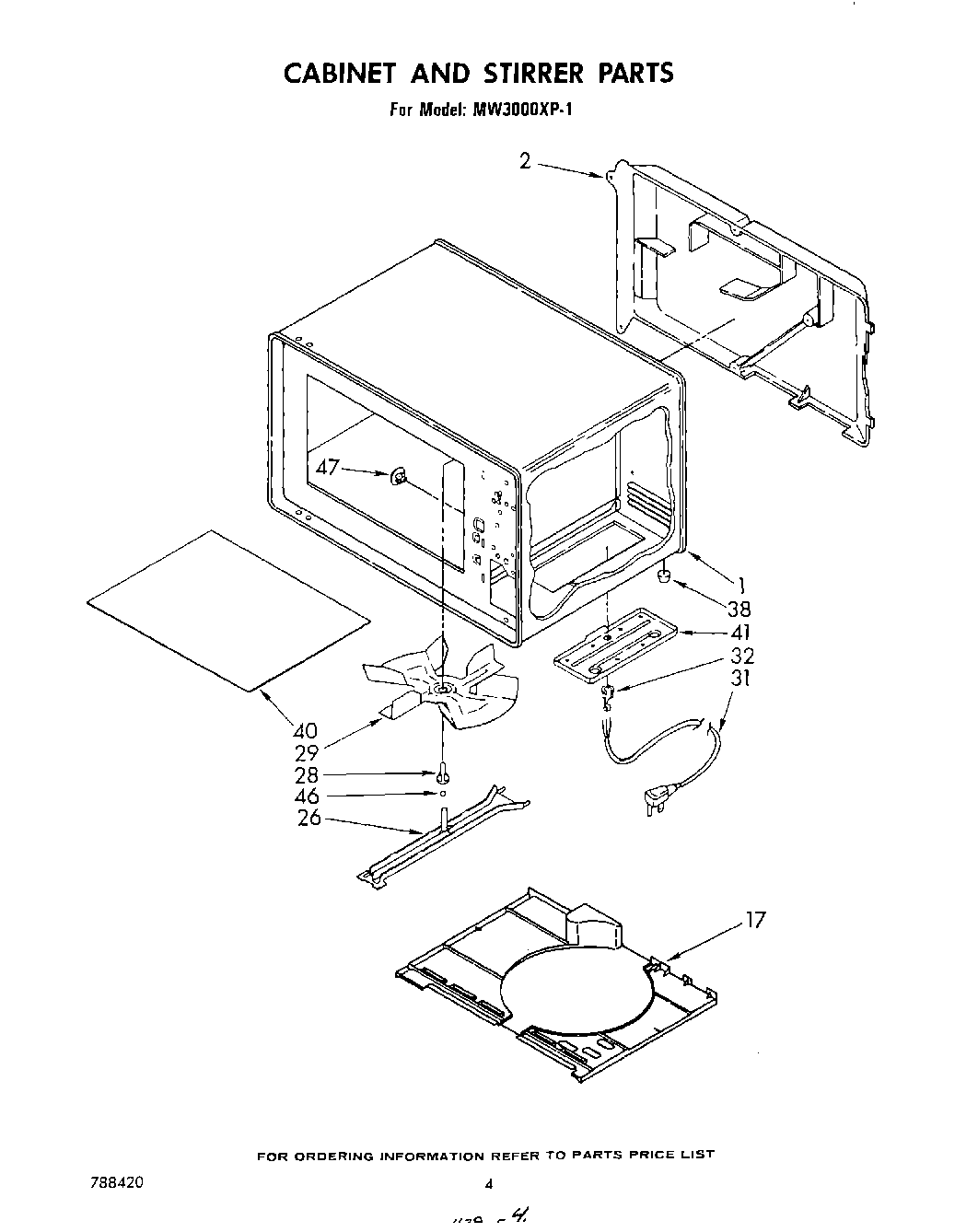

MW3000XP1 03 – CABINET AND STIRRER

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	Cover, Rear
17	Cover, Stirrer
26	Rivet
26	Support Bar, Stirrer
28	Insert, Stirrer
29	Blade, Stirrer
31	Clamp
31	Cord, Power
31	Lockwasher, No.8
31	Washer, No.8
31	Screw, 8-32 x 3/8
31	Pop Rivet (8)
31	WP486255 Whirlpool Air Conditioner Nut
32	Relief, Strain
38	Rivet (4)
38	Foot (4)
40	Shelf (Order Sealant Part No. 482338 For Installation Of Shelf)
41	WP90767 Whirlpool Screw
41	Clip (4)
41	Panel, Access (Includes Illus. 38)
46	Bearing, Stirrer
47	Plug, Hole
