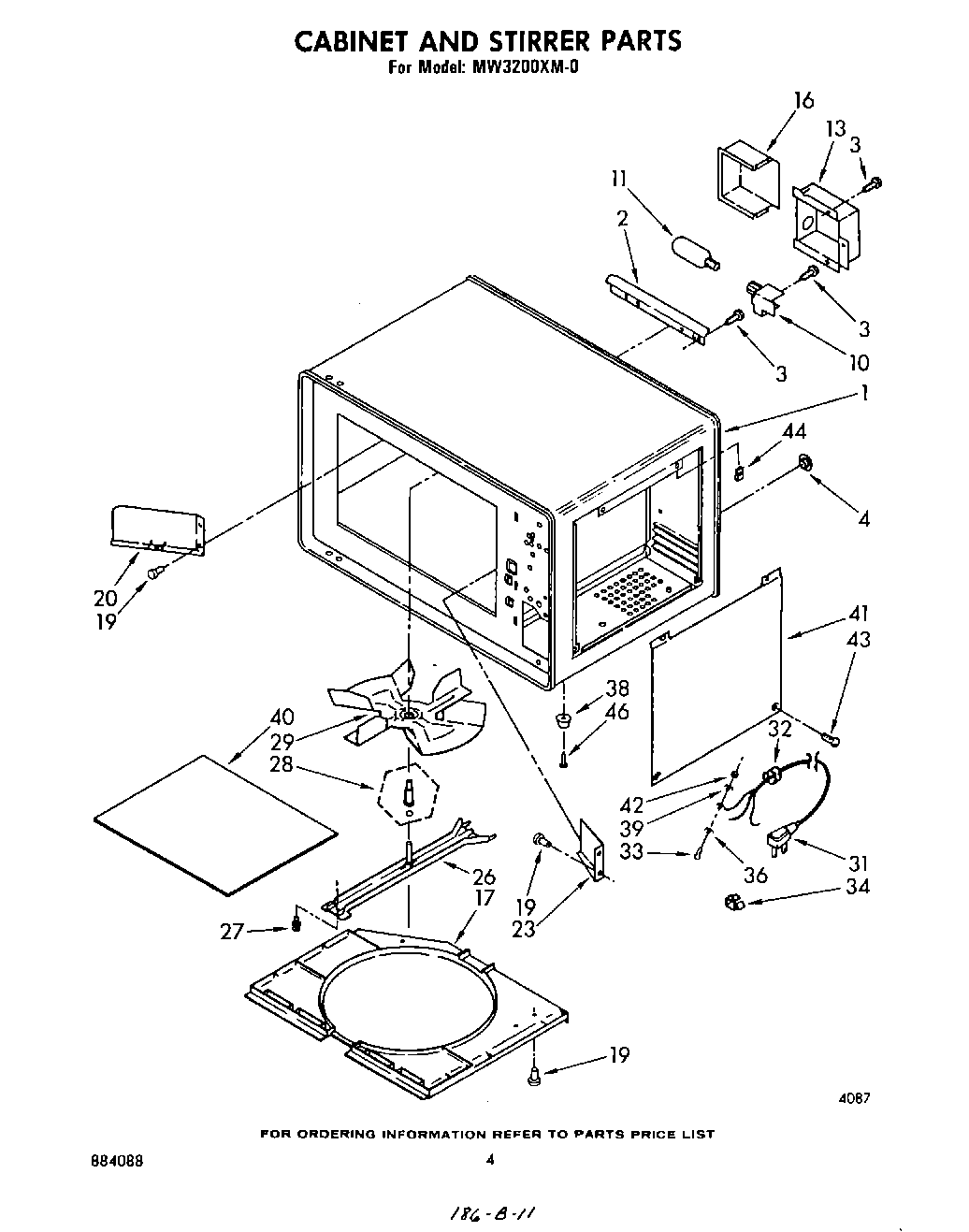

MW3200XM0 03 – CABINET AND STIRRER
Written by
in
MW3200XM0 03 – CABINET AND STIRRER
Products
Position
Product
1
Cabinet (Not A Serviceable Part)
2
Wire Cover
3
WP90767 Whirlpool Screw
4
Plug, Hole
10
Lamp Socket & Bracket
11
Lamp
13
Cover, Component
16
Cover, Light
17
Cover, Stirrer
19
Rivet
20
Baffle, Left Air
23
Baffle, Right Air
26
Support Bar, Stirrer
27
Rivet
28
Insert, Stirrer (Includes Bearing)
29
Blade, Stirrer
31
Cord, Power
32
Relief, Strain
33
Screw, 8-32 x 3/8
34
Clip, Wire
36
Washer, No.8
38
Foot (4)
39
Lockwasher, No.8
40
Shelf (Order Sealant Part No. 482338 For Installation Of Shelf)
41
Panel, Access
42
WP486255 Whirlpool Air Conditioner Nut
43
WP488729 Whirlpool Refrigerator Door Screw
44
Clip, Access Panel (2)
46
Rivet
←
