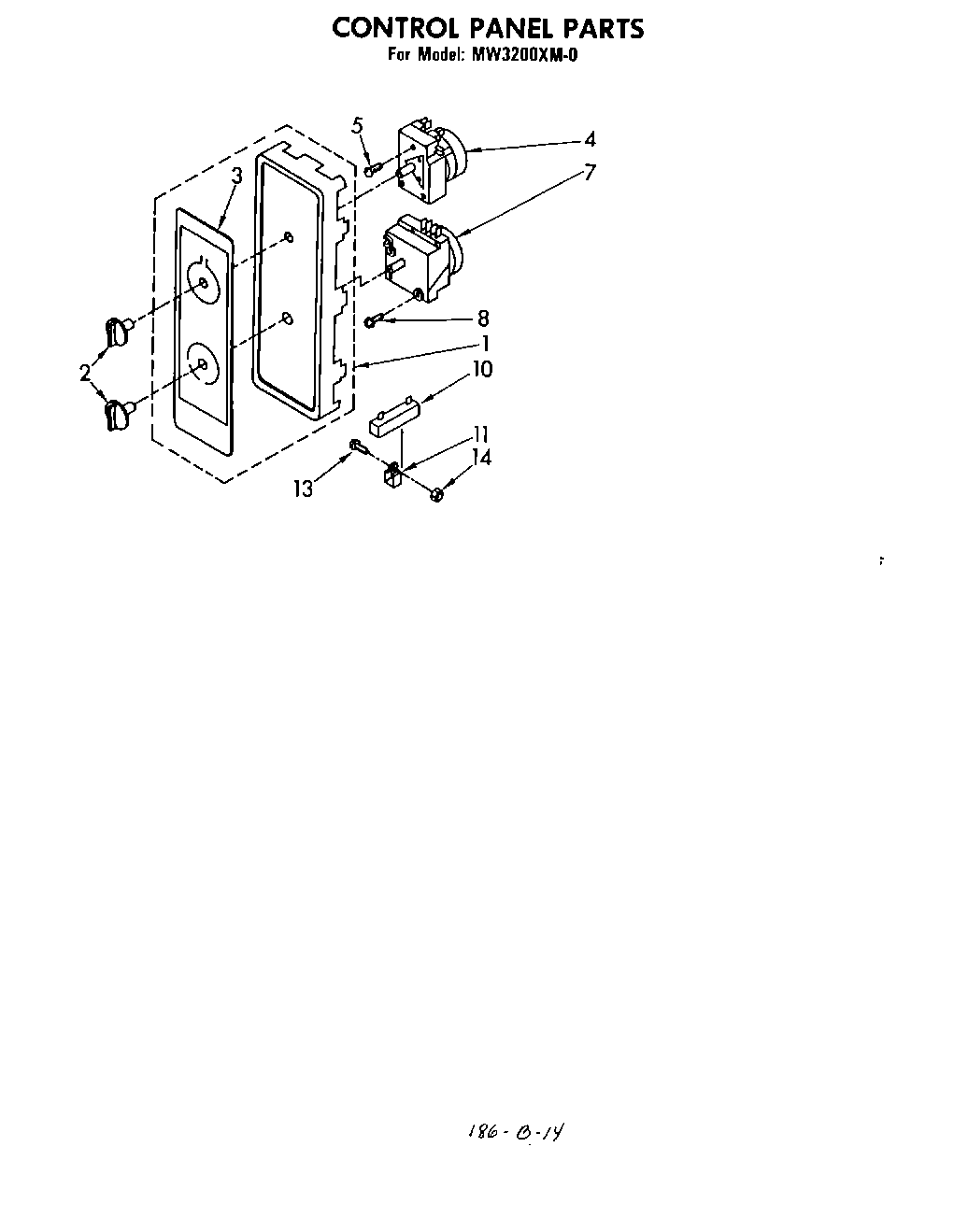

MW3200XM0 05 – CONTROL PANEL , LITERATURE AND OPTIONALadmin2025-04-26T08:44:14+00:00MW3200XM0 05 – CONTROL PANEL , LITERATURE AND OPTIONAL
Products
| Position | Product |
|---|
| 1 | Decorative Panel Assembly (Includes Inlay) |
| 2 | Knob, Timer (2) |
| 3 | Inlay |
| 4 | Timer (25 Minute) |
| 5 | Screw, 3mm (2) |
| 7 | Variable Power Selector |
| 8 | Screw, 6-32 x 1/2 Slotted Hex Washer Head (2) |
| 10 | Resistor, Surge |
| 11 | Bracket, Surge Resistor |
| 13 | Screw, 8-32 x 3/8 Phillips Pan Head |
| 14 | Guide, Use & Care |
| 14 | Guide, Cooking |
| 14 | Instructions, Installation |
| 14 | Cookbook |
| 14 | WP482338 Whirlpool Refrigerator Adhesive |
| 14 | Built-In Kit (Complete) |
| 14 | Wall Mounting Kit (Complete) |
| 14 | WP486255 Whirlpool Air Conditioner Nut |
| 14 | List, Repair Parts |
