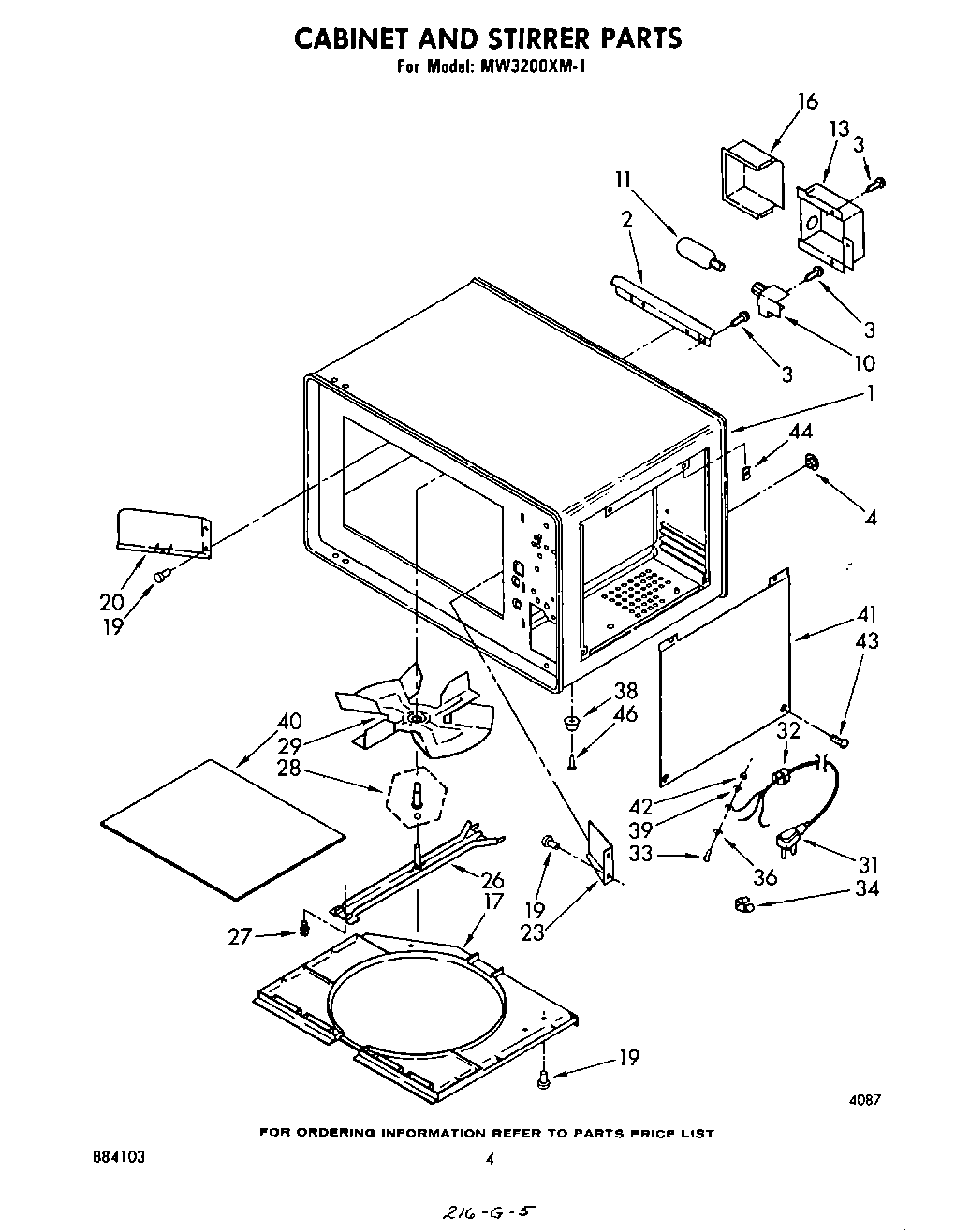

MW3200XM1 03 – CABINET AND STIRRER

MW3200XM1 03 – CABINET AND STIRRER

Written by

in

MW3200XM1 03 – CABINET AND STIRRER

Products

PositionProduct
1Cabinet (Not A Serviceable Part)
2Wire Cover
3WP90767 Whirlpool Screw
4Plug, Hole
10Lamp Socket & Bracket
11Lamp
13Cover, Component
16Cover, Light
17Cover, Stirrer
19Rivet
20Baffle, Left Air
23Baffle, Right Air
26Support Bar, Stirrer
27Rivet
28Insert, Stirrer (Includes Bearing)
29Blade, Stirrer
31Cord, Power
32Relief, Strain
33Screw, 8-32 x 3/8
34Clip, Wire
36Washer, No.8
38Foot (4)
39Lockwasher, No.8
40Shelf (Order Sealant Part No. 482338 For Installation Of Shelf)
41Panel, Access
42WP486255 Whirlpool Air Conditioner Nut
43WP488729 Whirlpool Refrigerator Door Screw
44Clip, Access Panel (2)
46Rivet
