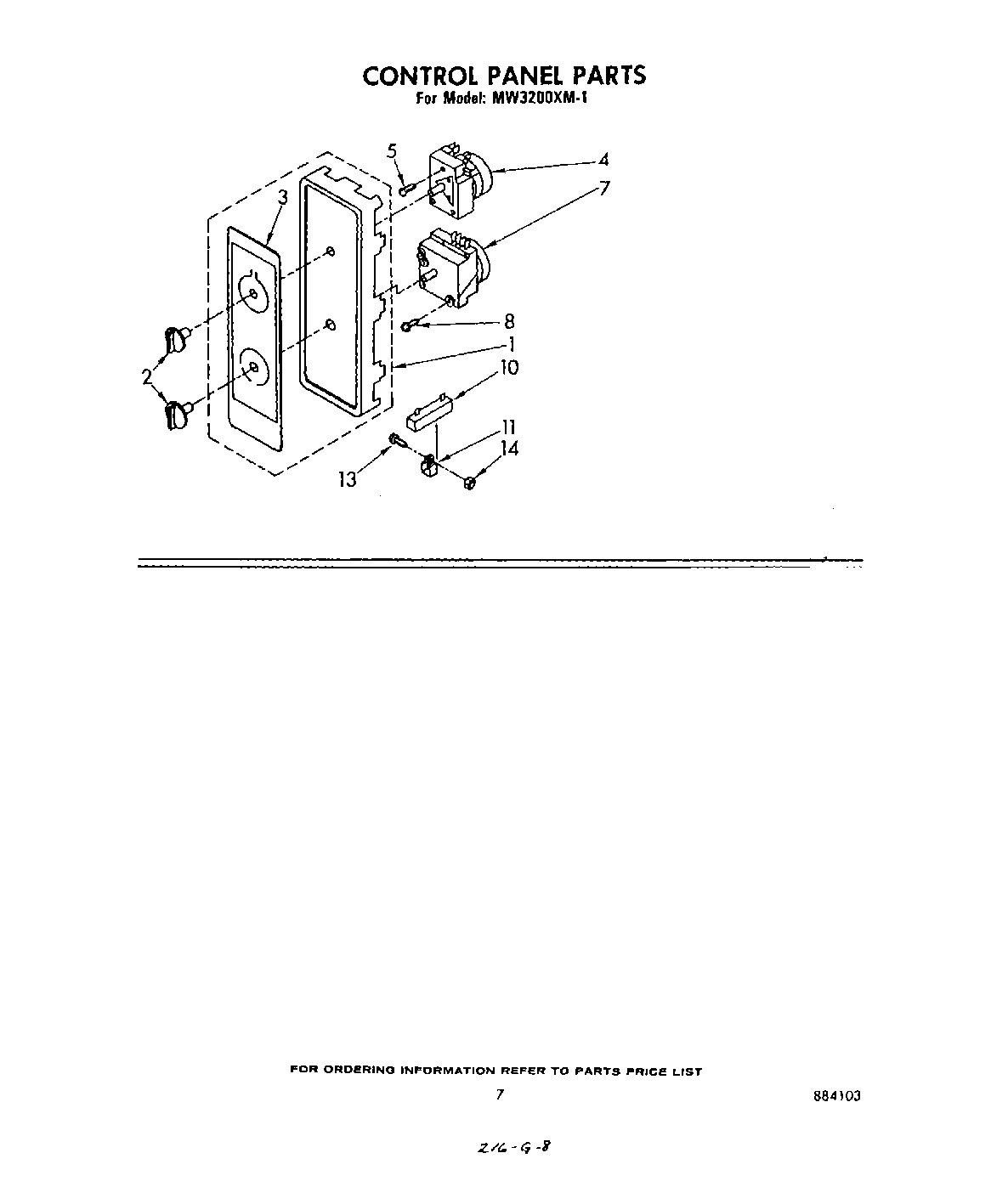

MW3200XM1 05 – CONTROL , LITERATURE AND OPTIONAL

Products

PositionProduct
1Decorative Panel Assembly (Includes Inlay)
2Knob, Timer (2)
3Inlay
4Timer (25 Minute)
5Screw, 3mm (2)
7Variable Power Selector
8Screw, 6-32 x 1/2 Slotted Hex Washer Head (2)
10Resistor, Surge
11Bracket, Surge Resistor
13Screw, 8-32 x 3/8 Phillips Pan Head
14Instructions, Installation
14Cookbook
14Guide, Cooking
14RCK304-1 24“ Built-In Kit (For Built-In Oven Use Only)
14Guide, Use & Care
14350956 Whirlpool Spray Assembly
14Built-In Kit (Complete)
14Wall Mounting Kit (Complete)
14WP486255 Whirlpool Air Conditioner Nut
14WP482338 Whirlpool Refrigerator Adhesive
14WP72107 Whirlpool Touchup
14List, Repair Parts
